CNC Machining Techniques for Stainless Steel Parts

You probably know that stainless steel cnc machining needs more than just basic skills. You need to use the right tools made for stainless steel and set your machine to the best parameters. Machining Techniques for Stainless Steel Materials often deal with tough challenges, like heat building up and work hardening. Want better results? Try low-speed tools, avoid pushing too hard, and always choose tools designed for stainless steel. These steps help you get high-quality parts and keep your tools working longer.

Key Takeaways

• Learn about the special features of stainless steel. Different grades can make machining harder and wear out tools faster.
• Pick the right tools made for stainless steel. Using slow-speed tools and the right coolant helps tools last longer and makes better parts.
• Handle heat well when machining. High-pressure coolant and the right cutting speed stop parts from getting too hot.
• Stop work hardening by keeping cutting speeds steady and using sharp tools. This helps tools last longer and gives better results.
• Make your machining methods better. Use chip-breaking tools and change settings to get smoother finishes and more exact parts.
• Focus on setup and fixturing. Holding your part tightly keeps it from moving and makes machining more accurate.
• Use surface finishing methods. Things like electropolishing and passivation help parts resist rust and look better.
• Keep learning about new technology. Always learning about new tools and ways to machine helps you stay ahead in working with stainless steel.

Stainless Steel CNC Machining

When you work with stainless steel cnc machining, you need to know what makes this material special. Stainless steel has unique properties that affect how you cut, shape, and finish your parts. Let’s break down what you need to know before you start your next project.

Material Properties

Hardness

Stainless steel is tough. You will notice that some grades are much harder than others. Hardness affects how your tools wear out and how fast you can machine the part. If you look at the numbers, you can see the difference:

Property	Stainless Steel 440C	Stainless Steel 410
Tensile Strength, Yield (MPa)	445	310
Shear Modulus (GPa)	83.9	73
Elongation at Break (%)	14	25
Hardness (Brinell)	223	147
Density (g/cm^3)	7.80	7.74

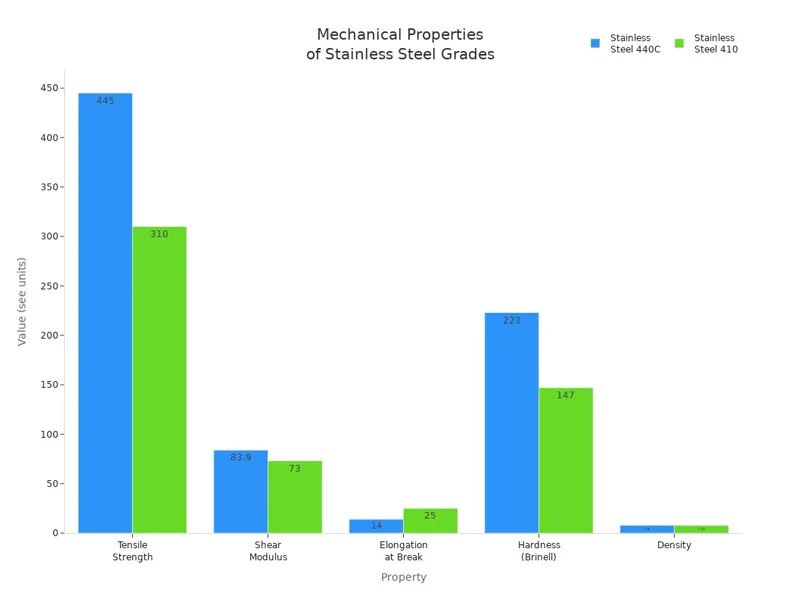

You can also check out this chart to compare the mechanical properties of two common grades:

If you use stainless steel cnc machining on a harder grade, your tools will wear out faster. You might need to slow down your cutting speed or use special inserts.

Thermal Conductivity

Stainless steel does not move heat away from the cutting area very well. This means the heat stays near your tool and the part. You might see more tool wear and even some warping if you do not use enough coolant. Always keep an eye on the temperature during stainless steel cnc machining. Using the right coolant and toolpath can help you avoid problems.

Tip: If you notice your tools getting hot, try lowering the speed or increasing the coolant flow. This can make a big difference in tool life.

Grade Differences

Not all stainless steel grades act the same during machining. Some are easy to cut, while others can be a real challenge. Here’s what you should know:

• 304 Grade: This is common but tough to machine. It tends to work harden, which means it gets harder as you cut it.
• 303 Grade: This grade has added sulfur, making it easier to machine. You will find it has a machinability rating of 75%.
• 416 Grade: This is the easiest to machine, with a rating of 85%. It is also heat treatable.
• Ferritic Grades: These are easier to machine than austenitic grades. They do not work harden as much.

Certain elements like chromium and nickel make stainless steel stronger but harder to machine. If you add sulfur, it gets easier to cut because the chips break off more easily. When you choose a grade for stainless steel cnc machining, think about how tough the job will be and pick your tools wisely.

Note: Ferritic stainless steels are your friend if you want less tool wear and easier machining. Martensitic grades need special care, especially after heat treatment.

Stainless steel cnc machining keeps getting better with new technology. You now have smarter machines, better software, and even AI to help you get the best results. If you keep learning about the material and the latest tools, you will always stay ahead.

Machining Techniques for Stainless Steel Materials

When you work with stainless steel cnc machining, you need to pick the right machining techniques for stainless steel materials. Each method has its own tricks and tools. Let’s look at how you can get the best results with milling, turning, and drilling.

Milling Techniques

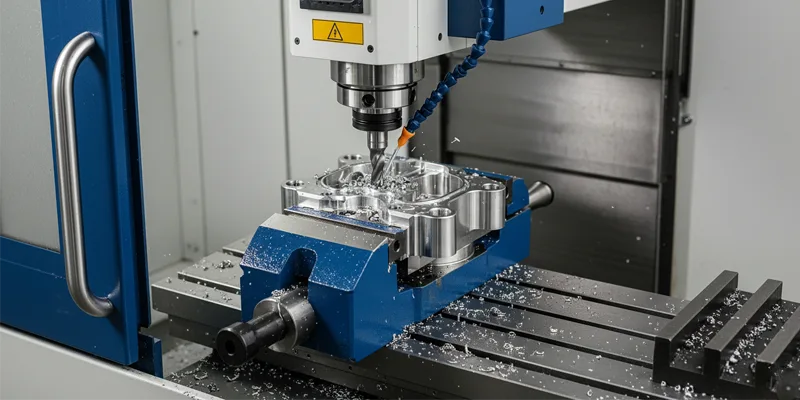

Milling is the most common process in machining techniques for stainless steel materials. You want to keep your tools sharp and your parts smooth. Here are some tips that help you get there:

• Manage heat by keeping speeds moderate and using coolants that flow well.
• Use chip-breaking tools and helical chip breakers. These help chips move away fast and keep your workspace clean.
• Choose carbide end mills or high-speed steel cutters with titanium nitride coatings. These last longer and cut better.
• Adjust your cutting parameters. If you go too fast, you get work hardening. If you go too slow, you waste time and wear out your tools.
• Try polishing and electropolishing after milling. These steps make your surface finish shine.

Modern toolpath strategies like High-Efficiency Milling (HEM) and trochoidal milling can make a big difference. HEM uses higher speeds and lower radial engagement, which helps spread out the heat and keeps your tool cool. Trochoidal milling reduces the time your tool touches the material, so you get less heat and better tool life.

If you want even smoother parts, use anti-vibration tool holders. These holders keep your machine steady and help you avoid chatter. You get better precision and a nicer finish.

Tip: Always check your coolant flow and tool sharpness before you start. This keeps your milling process safe and efficient.

Turning Methods

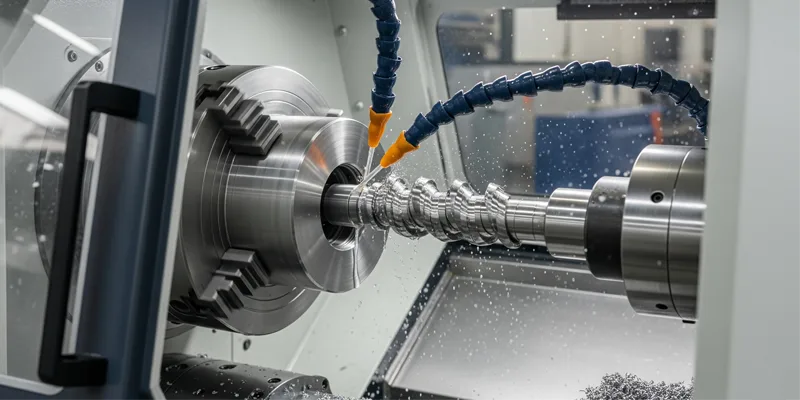

Turning is another key part of machining techniques for stainless steel materials. You need to watch your cutting parameters closely. If you set them right, you avoid work hardening and get a clean cut.

Here’s a table that shows the best settings for turning stainless steel:

Parameter	Optimal Range
Cutting Speed	100-150 SFM
Feed Rate	0.004-0.008 IPR
Depth of Cut	0.040-0.080″
Cooling Method	High-Pressure Coolant

You should use high-pressure coolant above 1000 PSI. Aim the coolant right at the cutting edge and keep the temperature steady. This helps you control heat and makes your tools last longer.

Try these steps for better results:

1. Start with low feed rates, around 0.10–0.15 mm/rev.
2. Pick coated tools like TiAlN or carbide-coated inserts.
3. Use Minimum Quantity Lubrication (MQL) or cryogenic cooling if you can.

Carbide tools and specialized inserts work best for machining stainless steel. Advanced micro-grain carbide gives you hot hardness and resists deformation. Optimized rake face geometry lowers cutting forces, so you can run faster and feed harder. PVD coatings like TiAlN protect your tools from wear. Chipbreaker geometry helps you control chips and keeps your surface finish smooth.

If you want to avoid vibration, upgrade your machine or use dynamic vibration absorbers. One shop cut vibration by 40% and improved surface finish from Ra 1.4 µm to 0.6 µm. Tool life went up by 20%. That’s a win for any cnc machining job.

Drilling and Tapping

Drilling and tapping are tricky parts of machining techniques for stainless steel materials. You need sharp tools and good safety habits. Here’s what you should do:

1. Wear safety goggles every time.
2. Make sure your workspace has good ventilation. Keep drill air vents clear.
3. Use sharp drill bits and taps. Dull tools make too much heat and can break.

Pick the right tool for the job. Here’s a quick guide:

Tool Type	Description
High-Speed Steel (HSS)	Recommended for stainless steel; titanium-tipped to reduce friction and work hardening.
Cobalt Drill Bits	Designed for heavy-duty use; improves heat resistance and prevents bit breakage.
High-Speed Steel Taps	Used for creating internal threads in stainless steel; essential for threading into rigid materials.

Keep your feeds and speeds steady. If you go too fast, you get overheating and work hardening. If you go too slow, you waste time. Lubricate your drill and tap to lower friction and keep things cool.

• Use sharp tools to cut down on vibration and get better quality.
• Always lubricate during drilling and tapping.
• Keep your workspace clean and your tools sharp.

Note: Good drilling and tapping methods help you avoid broken bits and rough threads. Take your time and check your setup before you start.

Machining techniques for stainless steel materials need careful planning and the right tools. If you follow these steps, you get better parts, longer tool life, and smoother finishes. Stainless steel cnc machining can be tough, but with smart choices, you make it easier.

Grinding Processes

Grinding gives you the power to shape and finish stainless steel parts with high precision. You can use grinding to get tight tolerances and smooth surfaces. If you want parts that fit together perfectly or look great, grinding is the way to go.

You have several grinding methods to choose from. Each one works best for different shapes and needs:

• Centerless grinding helps you make cylindrical parts that need to be perfectly round.
• OD (outside diameter) grinding works well for long bars or shafts when you want a specific diameter.
• Surface grinding is perfect for flat pieces or faces that must match up exactly.

Before you start, you need to pick the right abrasive. Some materials work better than others because they last longer and cut cleaner:

• Alumina, zirconia alumina, and ceramic alumina are tough and durable. These abrasives help you grind hard stainless steel without wearing out quickly.
• You can use different grinders for different jobs. Angle grinders, belt grinders, and even delta grinders all have their place.

Tip: Always clean your stainless steel part before grinding. Dirt or oil can mess up your finish and wear down your tools.

When you grind, keep your speed and pressure steady. If you push too hard or move too fast, you might overheat the part or damage the tool. Using coolants or lubricants helps keep everything cool and makes your tools last longer.

After grinding, check your part. Look for a smooth surface and make sure the size matches your drawing. Grinding does more than just shape the part. It also:

• Improves the surface finish so your part looks and works better.
• Removes tiny flaws that could cause rust or weaken the part.
• Lets you meet tight tolerances for parts that need to fit together.
• Works for many jobs, like smoothing welds or rounding sharp edges.
• Makes your part stronger and more durable.

Note: Grinding is not just about looks. A good finish can help your part resist corrosion and last longer.

If you follow these steps, you get stainless steel parts that look great and work even better. Grinding takes patience, but the results speak for themselves.

Tool Selection and Parameters

Tool Materials

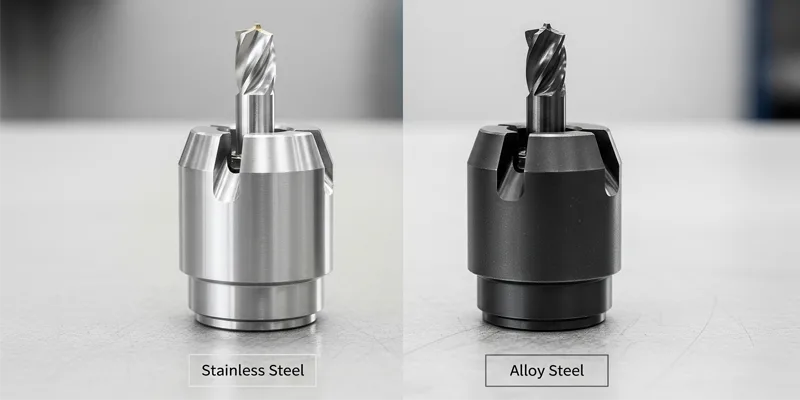

Choosing the right tool material makes a huge difference in stainless steel cnc machining. You want tools that last long and keep their shape. Stainless steel holders work well for precision jobs. They resist corrosion, so you can use them in moist environments without worry. Alloy steel holders are strong and cost less. They handle heavy-duty tasks but need coatings to protect them from rust.

Here’s a quick look at how these tool materials compare:

Feature	Stainless Steel Holders	Alloy Steel Holders
Corrosion Resistance	High, suitable for moist environments	Lower, needs coatings for protection
Durability	Excellent for precision tasks, good wear resistance	Strong, good for heavy-duty operations
Performance in Finishing	Ideal for finishing, keeps precision	Better for roughing and high-load tasks
Cost	More expensive, lasts longer	More affordable, good for tough jobs

If you want the best finish, pick stainless steel holders. For rough machining, alloy steel holders save money and get the job done.

Tip: Always match your tool material to the job. This helps you avoid tool failure and keeps your cnc machining smooth.

Coatings

Tool coatings help you fight heat and wear during machining. You need coatings that can handle high temperatures and keep friction low. AlTiN coatings work up to 1,400° F and have good hardness. AlTiN Nano coatings go even higher, up to 2,100° F, and offer better hardness and lower friction. FX1 coatings push the limits with a max working temp of 2,192° F and extremely high hardness.

Check out this table to see how these coatings stack up:

Coating Type	Max Working Temp	Hardness (HV 0.05)	Coefficient of Friction
AlTiN	1,400° F	3,589 (35 GPa)	0.70
AlTiN Nano	2,100° F	4,181 (41 GPa)	0.40
FX1	2,192° F	Extremely high	Low

If you want your tools to last longer in stainless steel cnc machining, pick coatings with high hardness and low friction. This helps you cut cleaner and avoid tool wear.

Cutting Speeds and Feeds

Setting the right cutting speeds and feeds is key for good machining results. If you go too fast, you get heat and work hardening. If you go too slow, you waste time and wear out your tools. For austenitic stainless steel grades like 304 or 321, you should use cutting speeds between 50 and 55 meters per minute. Feed rates should stay between 30 and 35 millimeters per revolution.

Here’s a table to help you set your machine:

Stainless Steel Grade (Austenitic)	Cutting Speed (m/min)	Feed Rate (mm/rev)
201, 202, 301, 302, 304, 304L, 305, 308, 321, 347, 348	50 – 55	30 – 35

Note: Always check your machine’s manual before you start. This keeps your cnc safe and helps you get the best results.

Picking the right tool materials, coatings, and settings makes stainless steel machining easier. You get better parts, longer tool life, and smoother finishes.

Coolant Use

When you work with stainless steel, you need to pay close attention to coolant use. Coolant does more than just keep things wet. It plays a huge role in how well your cnc machining goes. If you pick the right coolant and use it the right way, you get better parts and your tools last longer.

Coolant helps you in several ways during machining:

• It reduces friction between your tool and the stainless steel part. Less friction means less wear on your tools.
• It draws heat away from the cutting area. This keeps your tool and part cool, which is super important for stainless steel cnc machining.
• It helps you get a smoother surface finish. When your part stays cool, you avoid burns and rough spots.
• Some coolants have anti-foaming properties. These keep foam from building up, so your coolant can do its job without getting blocked.

You might wonder why heat is such a big deal. Stainless steel holds onto heat during machining. If you let things get too hot, your tool can wear out fast or even break. You might also see your part warp or get a rough finish. Coolant steps in to solve these problems.

Tip: Always check your coolant flow before you start. Make sure it hits the cutting edge directly. This helps you get the most out of your coolant.

Let’s look at what happens when you use coolant the right way:

1. You can run your cnc at higher speeds. Coolant keeps temperatures down, so you don’t have to slow things down to protect your tools.
2. You see fewer problems with oxidation. Your parts come out looking clean and shiny.
3. Your tools last longer. Coolant manages heat, so you don’t have to replace tools as often.

Coolant is not just for big jobs. Even small parts benefit from good cooling. If you use the right coolant, you get more consistent results and better quality every time.

Here are some quick tips for using coolant in stainless steel cnc machining:

• Pick a coolant made for stainless steel. These coolants handle heat and friction better.
• Use high-pressure coolant systems if you can. They push coolant right where you need it.
• Watch for foam. If you see foam, switch to a coolant with anti-foaming agents.
• Clean your coolant system often. Dirty coolant can hurt your parts and your machine.

Note: Coolant is your best friend in cnc machining. It helps you get better parts, saves your tools, and keeps your machine running smoothly.

If you pay attention to coolant use, you will see a big difference in your machining results. Your parts will look better, your tools will last longer, and your cnc will run more efficiently.

Machining Stainless Steel Challenges

Work Hardening

When you machine stainless steel, you might notice the surface gets harder after each pass. This is called work hardening. It happens because the metal changes as you cut it, making the next cut even tougher. If you don’t control work hardening, your tools will wear out fast and your parts might not turn out right.

Here’s how you can keep work hardening under control:

• Keep your cutting speeds between 100-150 SFM. This helps manage heat and makes your tools last longer.
• Use a steady feed rate. Don’t let the tool pause or slow down too much.
• Always use sharp tools. Dull tools cause more friction and make the surface even harder.
• Try carbide tools for finishing. They cut cleaner and help avoid surface hardening.

Tip: If you stick to these steps, you can reduce work hardening by up to 40% and cut down on tool wear by 35%.

When you use the right speeds and feeds, you make the job easier for your cnc and get better results from stainless steel cnc machining.

Heat Generation

Heat is a big problem when machining stainless steel. The metal holds onto heat, so the cutting area gets hot fast. Too much heat can ruin your tools and mess up your part’s finish.

You can control heat by:

• Picking carbide tools with the right shape. These tools handle high speeds and don’t get hot as quickly.
• Adjusting your cutting speed and feed rate. Lower speeds and higher feeds help keep things cool.
• Using cutting fluids. These cool down the tool and the part, and help chips move away.
• Setting up good cooling systems. High-pressure coolant or internal cooling tools work best.
• Watching the process. Use sensors if you have them to check temperature and make changes on the fly.

Note: Sharp tools and the right cooling method are your best friends for keeping heat under control.

If you plan your machining steps and keep your tools sharp, you can avoid overheating and get a smoother finish.

Tool Wear

Tool wear is a common challenge in machining stainless steel. The metal is tough and can wear down your tools in different ways:

• Abrasive wear happens because of hard spots in the metal.
• Adhesion wear shows up when bits of metal stick to your tool.
• Notch wear forms at the cutting edge, especially if the surface is already hardened.
• Thermal cracking can occur if your tool gets hot and then cools too quickly.

You can fight tool wear by:

1. Setting the right speed and feed for your job.
2. Choosing strong tool materials and using special coatings.
3. Making sure you have enough coolant and lubrication.

A high-quality coolant with more oil and a strong delivery system can make a big difference. It helps your tools last longer and keeps your machining process smooth.

Tip: If you notice your tools wearing out too fast, check your coolant and make sure you’re not running the machine too fast.

When you pay attention to these details, you get better results and save money on tools.

Chip Control

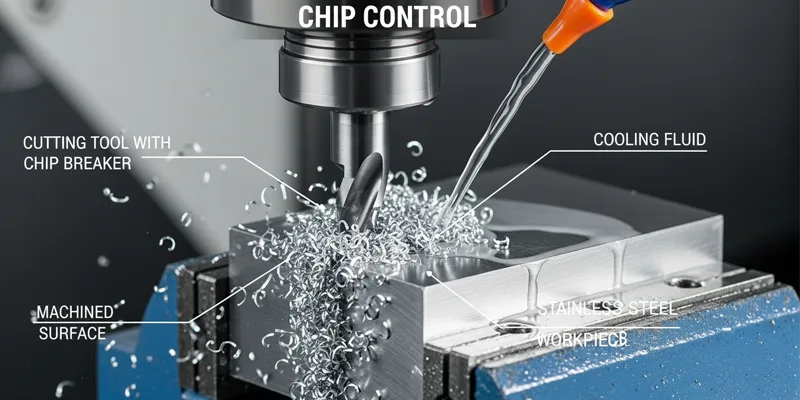

Chip control is a big deal when you work with stainless steel. If you don’t manage chips, you can run into trouble fast. Chips are the little pieces of metal that break off while you cut or shape your part. Sometimes, these chips get long and stringy. They can wrap around your tool or even jam up your cnc machine. That’s not just annoying—it can be dangerous.

You want chips to break off clean and fall away. This keeps your workspace safe and helps your machine run smoothly. Here’s how you can get better chip control during stainless steel cnc machining:

1. Make sure your tool lines up right. Good alignment helps chipbreakers do their job.
2. Use tools that stay steady. High stability means less tool movement and better chip control.
3. Set your depth of cut to at least two-thirds of the tool’s radius. This helps chips break off instead of curling up.

Tip: Chipbreakers are special shapes on your tool that help snap chips into small pieces. They stop chips from tangling and keep your machine safe.

You can also try these steps to improve chip control:

• Pick tools with built-in chipbreakers. These help chips break up and fall away.
• Adjust your cutting speed and feed rate. If you set them right, chips break off easier.
• Use direct coolant systems. Coolant washes chips away and keeps your machine from getting clogged.

Here’s a quick table to show what helps with chip control:

Chip Control Method	What It Does	Why It Matters
Chipbreakers	Break chips into small pieces	Prevents tangling
Stable Tooling	Reduces tool movement	Improves chip breaking
Direct Coolant System	Washes chips away	Cuts down machine stops
Depth of Cut Adjustment	Helps chips snap off	Keeps chips manageable

If you don’t control chips, you might have to stop your cnc to untangle them. That wastes time and can lead to accidents. When you use good chip control strategies, you spend less time fixing problems and more time making great parts.

Note: Long chips can be sharp and hard to handle. Good chip control means you don’t have to reach into the machine, which keeps you safe.

Chip control is not just about keeping things neat. It helps you avoid machine downtime, improves safety, and lets you focus on making high-quality stainless steel parts. If you pay attention to chip control, your stainless steel cnc machining will go smoother and safer.

Best Practices for CNC Machining

Setup and Fixturing

Setting up your machine is very important. You want your part to stay still and not move. If your part has flat surfaces, it is easier to clamp. This helps stop bending or shifting. Sometimes, parts have thin walls or strange shapes. You can use special supports or fixtures to hold them tight.

Here are some easy tips for setup and fixturing:

• Pick flat or straight surfaces for clamping. This keeps your part steady.
• Do not put important features under clamps. You do not want to hurt those spots.
• Try to finish many features in one setup. Fewer setups mean less chance for mistakes.
• Use support fixtures for thin or bendy parts. This stops shaking and bending.
• Always think about how you hold your part. Good fixturing helps you get accurate results.

If you follow these steps, your stainless steel cnc machining will work better. Your parts will fit together well and do their job right.

Toolpath Optimization

Toolpath optimization is like finding the best way for your tool to move. If you plan your toolpaths well, you save time and get smoother parts. You want to stop extra movements and keep your tool working smart.

Look at this table to see how toolpath optimization helps:

Benefit	Description
Cycle Time	Less wasted movement means you finish faster.
Tool Wear	Less wear means you buy fewer new tools.
Tolerances	Tight measurements help you make better parts.
Surface Finish	Smoother parts look and feel nicer.

When you plan your toolpaths, you get more from stainless steel cnc machining. Your parts meet strict rules and cost less to make. You also get better results.

In-Process Inspection

You should not wait until the end to check your work. In-process inspection lets you find mistakes early. You can check each step as you go. This helps you avoid errors that ruin parts or slow down your work.

Here are ways to use in-process inspection:

• Start with a first article inspection. Make sure your first part is correct before making more.
• Let workers check the work while they make it. They can fix problems right away.
• Watch and control the process. If something goes wrong, you can fix it fast.

Using these checks keeps your stainless steel cnc machining on track. You get good parts for many uses, like medical or car parts. Good measuring tools and smart CNC software help you meet high standards.

Tip: Checking often means fewer problems and better results. You save time and money, and your parts work just how you want.

Surface Finishing

When you finish machining stainless steel, you want your parts to look nice and last long. Surface finishing is an important step that changes how your parts look and work. There are different ways to finish the surface, and each one helps with corrosion resistance and appearance in its own way. Let’s look at the most common choices you will see in real life.

• Mechanical Polishing: You use rough tools to make the surface smooth. This makes your parts shiny and clean. How smooth you polish can change how well your part fights rust. You see mechanical polishing in food machines and medical tools where looks are important.
• Electropolishing: This uses electricity and chemicals to make the surface very shiny. Your parts become super smooth and resist rust much better. Electropolishing is great for medicine and places that must stay very clean.
• Passivation: You use chemicals to make a protective layer on the surface. Passivation helps your parts avoid rust and last longer. This method is used in airplanes and boats.
• Brushing: You use brushes to give the surface a special texture. Brushing changes how your part looks and can help stop rust if done right. Many kitchen tools and buildings use brushed stainless steel for style.
• Pickling: You clean the surface with acid. Pickling takes away dirt and scale so your parts are ready for other steps. It is often done before passivation in chemical plants.
• Blasting: You shoot rough particles at the surface to make it bumpy. Blasting can make your parts look dull or rough and helps stop rust too. You see blasting in factories where parts need grip or a non-slip surface.

Tip: If you want your parts to last longer in hard jobs, use both pickling and passivation. This gives you a strong finish and better protection.

Surface finishing is not just about making things look good. The right finish helps your parts survive tough places and keeps them working well. You might need a shiny finish for medical tools or a rough one for outdoor gear. Always pick the finishing method that fits your needs.

If you focus on surface finishing, your stainless steel parts will look better, fight rust, and work well in many places. People will notice the difference, and your parts will do their job better everywhere they go.

You can make stainless steel parts well if you use good machining techniques. Pick tools and settings that fit your material. This helps you spend less money and get better parts. Look at this table to see how tool choices and settings change cost and quality:

Evidence	Explanation
The type of tool, its shape, and how you set your machine all change how long your tool lasts, how fast you work, and how smooth your part is.	These things matter because they change how much you pay to make parts and how good your finished product is.

Keep learning new things and ask skilled people for help with hard jobs. Try new ways to get smoother finishes and fewer mistakes. If you want the best parts, always use smart methods and keep asking questions.

FAQ
