Understanding PVD Coating Material and Its Industrial Applications

You can find pvd coating material in many industries today. This new technology makes thin and pure coatings. It does this by adding material one atom at a time. People pick pvd coating material because it is strong and shiny. It is also good for the environment. The worldwide market for pvd coating material was USD 3.5 billion in 2023. It could grow to USD 6.8 billion by 2032.

• Many industries use pvd coating material:
  • It helps car parts last longer.
  • Makers of luxury goods use it for nice looks.
  • Tool makers use it to make tools work better.

Industry	Percentage Utilization
Automotive	24%
Luxury Goods	Over 30%
Tooling	26%

Pvd coating material keeps products safe. It also makes them look better. It is used in electronics, cars, and luxury goods.

Key Takeaways

• PVD coating materials help protect products and make them look better. Many industries use PVD coatings, like car, medical, and airplane companies. These coatings help things last longer and work well. It is important to pick the right PVD coating type for each job, like Titanium Nitride or Chromium Nitride. PVD coatings are good for the environment. They use less energy and make less waste than old methods. The PVD coating process makes a thin layer by adding material one atom at a time. This gives a smooth finish. It is easy to take care of PVD-coated items. Just use a soft cloth and mild soap to clean them. PVD coatings help stop wear and rust. This makes tools and parts last longer and work better. Using PVD coatings can save money over time. You will not need to replace or fix things as often.

PVD Coating Material

Definition

You see pvd coating in many industries. It changes how products look and work. In materials science, experts call pvd coating a surface modification technique. This process puts a thin film of metal or ceramic on products. The film is usually less than one micron thick. With this coating, products get better mechanical, thermal, and chemical properties. Pvd coating makes parts stronger and helps them last longer. People use this method when every detail is important.

Pvd coating also makes nanoparticles that are very pure. These particles have a great crystal structure. The process happens by evaporating the coating material in a vacuum chamber. This gives a pure and even layer. Many products need this kind of layer.

Types

There are different types of pvd coating materials. Each type gives special benefits to products.

Metals

Many industries use metal pvd coating materials. Some common metals are:

• Titanium
• Zirconium
• Aluminum
• Copper

Titanium pvd coating gives a gold color and strong protection. Zirconium pvd coating adds a pale gold shine and good wear resistance. Aluminum and copper pvd coating materials help with electrical and thermal properties.

Ceramics

Ceramic pvd coating materials make things harder and more heat-resistant. You find coatings like titanium nitride (TiN) and chromium nitride (CrN). These coatings protect tools and machine parts from wear and corrosion. Ceramic pvd coating gives a smooth and tough surface.

Alloys

Alloy pvd coating materials give even better performance. Alloys mix metals and ceramics for special properties. For example, titanium aluminum nitride (TiAlN) and titanium carbonitride (TiCN) coatings are very hard and resist heat. These coatings are used in cutting tools and car parts.

Tip: Pick the right pvd coating material for your product. Metals, ceramics, and alloys each have their own advantages.

Properties

Pvd coating materials have special physical and chemical properties. They are very hard, stick well, and have low friction. These features make pvd coating better than many other surface treatments.

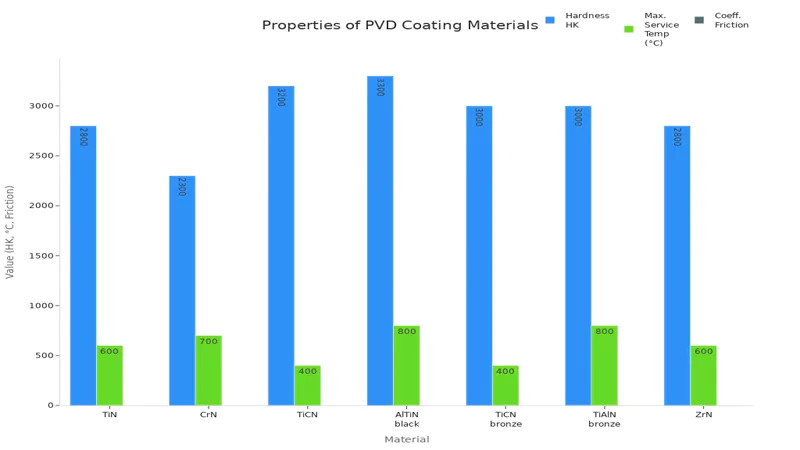

Material	Hardness HK¹	Max. Service Temperature2	Coefficient of Friction³	Color
TiN	2800	600ºC / 1100ºF	0.5	Gold
CrN	2300	700ºC / 1300ºF	0.5	Silver
TiCN	3200	400ºC / 750ºF	0.4	Gray
AlTiN black	3300	800ºC / 1450ºF	0.5	Black
TiCN – bronze	3000	400ºC / 750ºF	0.4	Bronze
TiAlN – bronze	3000	800ºC / 1450ºF	0.6	Bronze
ZrN	2800	600ºC / 1100ºF	0.5	Pale Gold

You can see that pvd coating materials like TiN and AlTiN black are very hard. These coatings can handle high heat and keep their color. The low friction means products do not wear out fast.

Pvd coating has even more good points. The hardness can reach 2000-3000 HV, which is higher than many other coatings. The adhesion strength is 40-60 MPa. This means the coating sticks well and does not peel off easily. The nanocrystalline structure helps with hardness. Mechanical interlocking and chemical bonding keep the coating in place.

• Key properties of pvd coating:
  • High hardness
  • Strong adhesion
  • Low friction
  • Good resistance to heat and corrosion
  • Attractive colors

You can use pvd coating to make products look and work better. The thin, pure layer protects and decorates at the same time. Pvd coating is strong and lasts a long time.

PVD Coating Process

Technology

Physical vapor deposition makes thin and strong coatings. This technology uses a vacuum chamber. The chamber takes out air and gases. Atoms can move without bumping into other things. The coating material turns into vapor. The vapor goes straight to the surface. The layer forms one atom at a time. This makes the coating very even and packed.

There are a few main ways to do physical vapor deposition:

• Sputtering
• Arc Evaporation
• Thermal Evaporation
• Electron Beam Evaporation
• Cathodic Arc Deposition
• Magnetron Sputtering

Each way changes solid or melted material into vapor. Sputtering and arc evaporation are used most in factories.

Method	Type of Source
Sputtering	Solid source
Arc Evaporation	Solid source
Thermal Evaporation	Molten source
Electron Beam Evaporation	Molten source

The vacuum process helps control what is in the coating. It stops bad reactions and helps the coating stick well.

Tip: The vacuum chamber lets you add material one atom at a time. This gives a smooth and nice finish.

Steps

There are a few steps in the physical vapor deposition process. Each step is important for the end result.

Preparation

First, you clean the substrate. Dirt and oil can make the coating not stick. Sometimes, you use special treatments like anodizing. This helps the coating bond better. You put the clean substrate in the vacuum chamber. The chamber lowers the pressure and removes dirt.

Deposition

You turn the coating material into vapor. You can use sputtering or evaporation for this. The vapor moves through the chamber. Sometimes, you add gases like nitrogen or argon. These gases help the coating form. The vapor lands on the substrate and cools down. The coating grows slowly, one atom at a time.

You watch the temperature and pressure during this step. This helps you get the right thickness and quality. The process can take 30 minutes to 2 hours. The time depends on how thick you want the coating and how big the part is.

Note: The vacuum process uses less energy and makes fewer bad chemicals than old methods. This is better for the environment.

Post-Processing

After the coating is done, you may need more steps. You can heat the part to make it smoother. You test the coating to check if it is hard and sticks well. Sometimes, you polish the surface to make it look better.

Equipment

You need special machines for physical vapor deposition in factories. Each part helps make a strong and pure coating.

Equipment Type	Description
PVD System	Works in a factory, needs a big space.
Vacuum Pumps	Make the vacuum needed for the process.
Power Supplies	Give electricity, often 480-volt, 3-phase.
Heaters	Keep the right temperature during coating.
Cooling Water	Stops overheating, helps with low-temperature coating.
Process Gases	Use argon, nitrogen, oxygen, methane, or acetylene in small amounts.
Compressed Air	Runs valves, must be clean and dry.
Ancillary Equipment	Has leak detectors and vacuums for cleaning and fixing.

The vacuum chamber helps atoms move without hitting other things. This makes the coating even and helps it stick well. The coating sticks because of atomic pull, not just force.

Callout: Physical vapor deposition gives a thin, pure, and tough layer. It protects products and is good for the environment.

PVD Coating Materials

Substrate Compatibility

You can put PVD coating materials on many things. This helps make products work and look better. Here are some common things you can coat:

• Metals: Stainless steel, titanium, aluminum, copper, and zirconium are good for PVD coatings. These metals are used in tools and machine parts.
• Plastics: Some plastics, like ABS, can be coated with PVD. These are used for decoration or light tool handles.
• Glass: Some PVD coatings stick to glass. You see these on watch faces and screens.

Ceramics can also be coated for high heat jobs. This makes PVD coatings useful in many fields.

Metals

Metals are often used as the base for PVD coatings. Stainless steel and titanium are picked for cutting tools. These metals are strong and last a long time. Aluminum and copper are also good choices. Adding a hard layer helps these metals last longer.

Plastics

Plastics are chosen when you want light or pretty products. Some plastics can handle the heat and vacuum of PVD. You see PVD-coated plastics in tool handles and other goods. The coating makes them shiny and harder to scratch.

Glass

Glass can get PVD coatings for looks and safety. This is good for watch faces, screens, and fancy items. The coating stops scratches and gives a special look.

Selection Criteria

When picking a PVD coating material, you need to think about a few things. These help you choose the best coating for your product.

1. Types of Substrates: You need to know if you are coating metal, ceramic, plastic, or glass. For example, stainless steel tools need a different coating than plastic handles.
2. Pre-Treatment Processes: You may need to clean or treat the base before coating. Sometimes, you use other coatings to help the PVD layer stick.
3. Material Compatibility: Make sure the base and coating work well together. Both must handle the heat and vacuum of PVD.
4. Applications: Think about where you will use the coated item. Planes and cars need strong coatings for tools and parts.
5. Specialized Coatings: You might want coatings that are extra hard or last longer. These help your tools work better and last longer.

Tip: Always pick the coating that matches your base and how you will use it. This gives you the best results for your tools and products.

Performance

PVD coatings can make your products work much better under stress. You see this most in cutting tools and machine parts.

Performance Metric	Description
Wear Resistance	PVD coatings make the base last longer and work better, even when things rub against it.
Corrosion Resistance	The coatings protect against things that could damage the base over time.

You should know that leftover stress in PVD coatings changes how strong they are. The right amount of stress helps your tool stop cracks and wear. Compressive stress is good for parts that carry loads. It helps stop cracks from starting and spreading, so your tools last longer.

• Leftover stress can change how your tool works.
• The right stress can make tools last longer and break less.

1. How strong your tool is depends on leftover stress.
2. More stress does not always mean a longer life.
3. Compressive stress helps stop cracks in tools.

You can use PVD coatings to make your tools harder and tougher. This means your tools last longer and work better.

PVD Coatings Applications

Aerospace

Pvd coatings are used a lot in aerospace. These coatings help airplane parts last longer. They also help parts work well in hard places. You can find pvd coatings on metal and composite parts in planes. Many companies now use pvd coatings instead of hard chrome. This switch is safer for workers and better for the earth.

Pvd coatings give many good things in aerospace:

• They make surfaces harder and stop sliding wear.
• They protect parts from rust and oxidation.
• They help parts handle very hot and cold weather.

You see pvd coatings on landing gear, engine mounts, and air frames. These coatings help planes stay safe and work well on long trips. Using pvd coatings helps plane parts stay strong and not break for a long time.

Tip: Pvd coatings in planes mean less fixing and safer flying.

Medical

Pvd coatings are important for medical tools. You want your tools to be safe, strong, and easy to clean. Pvd coatings help you get these things. They make tools harder and stop them from wearing out. This means scalpels and dental tools stay sharp and last longer.

Some pvd coatings, like TiN gold, are safe for the body. You can use them on scissors and dental tools without worry. These coatings also make moving parts slide easier.

Here are reasons to use pvd coatings on medical tools:

• They help tools last longer by stopping wear.
• They protect tools from rust during cleaning.
• They lower the chance of bad reactions.

You can trust pvd coatings to keep medical tools safe for doctors and patients.

Automotive

Pvd coatings are used in many car parts. Car makers use these coatings to make cars work better and look nice. Pvd coatings protect engine parts and fuel system parts. They also make trim look shiny.

Common car parts with pvd coatings are:

• Fuel injectors and plungers
• Gears and fasteners
• Hydraulic and pneumatic cylinders
• Pistons, rods, and pins
• Valves, followers, tappets, and camshafts
• Turbo bearings and seals
• Shock shafts

Pvd coatings help these parts stop wearing out and rusting. They also lower friction, so cars run smoother and last longer. When you pick pvd coatings for car parts, your car works better and lasts more years.

Note: Pvd coatings in cars protect inside and outside, making your car safer and better looking.

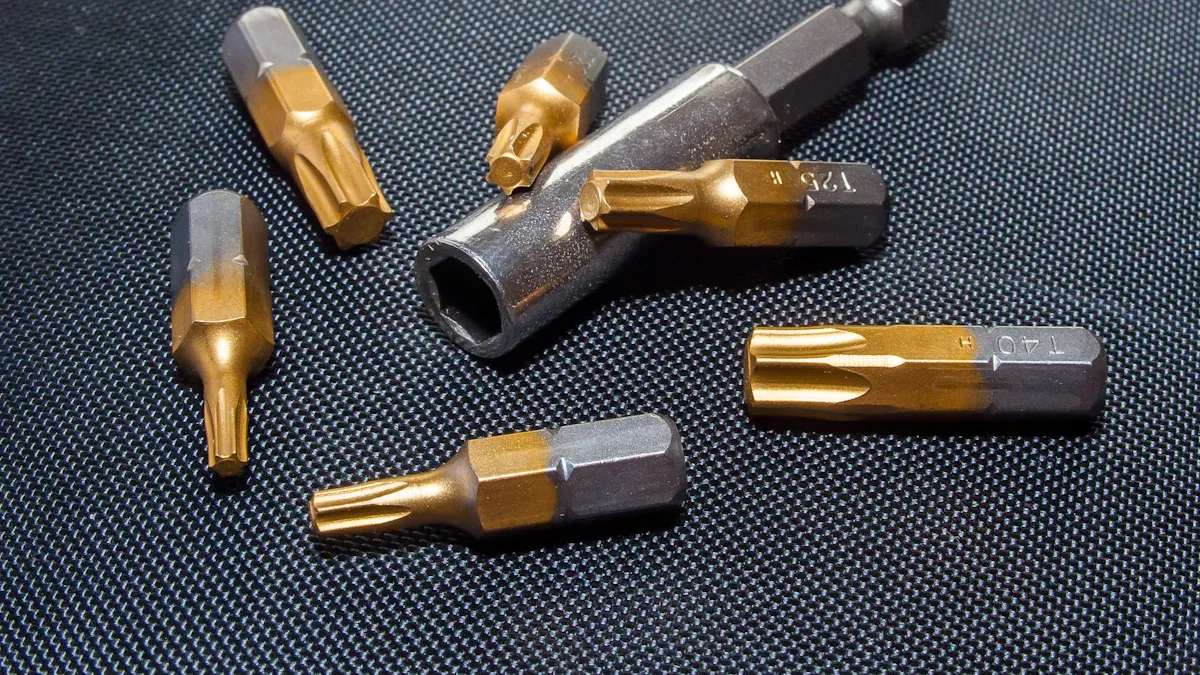

Tooling and dies

When you work in manufacturing, you want your tool and die equipment to last as long as possible. Pvd coatings help you reach this goal. These coatings make your tool surfaces much harder, often reaching over 3000 HV. This high hardness keeps your tool sharp and helps it resist microchipping, even when you use it under heavy loads.

You will notice several benefits when you use pvd coatings on your tool and die equipment:

• Your tool will resist wear and galling, so you do not need to replace it as often.
• The coating protects against thermal damage, which means your tool stays strong even at high temperatures.
• You will spend less time polishing or maintaining your tool because the surface stays smooth and tough.

Many manufacturers report that after switching to pvd coatings, they see longer maintenance intervals. You will also find that your parts come out more consistent, which helps your business run smoothly.

Pvd coating works by forming a thin, hard layer on your tool. This layer acts like a shield. It keeps the tool from wearing down quickly. You can use pvd coatings on many types of tool and die equipment, such as:

• Drill bits
• Cutting inserts
• Punches
• Molds
• Forming dies

If you use these tools in your shop, you know how important it is to keep them in top shape. Pvd coatings help you do that. They also make cleaning easier because dirt and metal shavings do not stick as much to the coated surface.

Tip: When you choose pvd coatings for your tool and die equipment, you save money over time. You buy fewer replacements and spend less time on repairs.

Pvd coating does not just protect your tool. It also improves how your tool looks. The coating gives a smooth, shiny finish that makes your equipment look new, even after many uses. You can pick different colors for your tool, which helps you organize your shop or match your company’s style.

You will find that pvd coatings are a smart choice for any tool and die application. They give you both protection and a better appearance. If you want your tool to last longer and work better, pvd coating is the way to go.

PVD Coating Benefits

Durability

If you pick pvd coating, your products get strong protection. The coating makes a hard layer on the outside. This layer helps tools and parts last longer. You will see your equipment does not wear out fast. You will not need to buy new parts as often. This saves you time and money.

Pvd coating is better than old coatings. You can see the differences in this table:

Property	PVD Coatings	Traditional Coatings
Hardness	Higher	Lower
Wear Resistance	Superior	Inferior
Adhesion	Stronger	Weaker
Coefficient of Friction	Lower	Higher

Pvd coating gives more hardness and better wear resistance. The coating sticks well, even when used a lot. Lower friction means less heat and less damage. This helps your tools last longer. You can trust your coated tools for tough jobs.

Tip: Pvd coating helps your tools last longer and cuts down on repairs.

Corrosion Resistance

You want your products to last in tough places. Pvd coating protects against rust and corrosion very well. Here is how it keeps your tools safe:

• Thick and dense layers stop corrosion from happening.
• You can use pvd coating on parts in cars, planes, and hospitals.
• The vacuum process takes away air and water, which cause rust.
• The coating bonds tight to the surface, blocking water and chemicals.
• Titanium Nitride (TiN) and Chromium Nitride (CrN) protect from salt and harsh chemicals.
• Pvd coating makes sure your products stay safe for a long time.
• Transition metal oxi-carbo-nitrides give even more protection from corrosion.

You can count on pvd coating to stop rust and chemical harm. Your tools and parts will last longer, even in hard places.

Appearance

Pvd coating does more than protect your products. It also makes them look nice. You can pick from shiny or matte finishes. This helps match your product to your style or brand.

• Pvd coatings give many looks, from shiny to matte, making parts look better.
• Many styles let you customize and match your room or brand.

Pvd coating gives your products a modern and cool look. The finish stays bright and does not chip or fade. Your products look new for a long time. If you want both protection and style, pvd coating is a great choice.

Environmental Impact

When you pick PVD coating, you help the earth. PVD means Physical Vapor Deposition. This method uses a vacuum chamber to add a thin layer. You do not need big tanks or liquid chemicals. PVD is much cleaner than old ways.

Benefit	Description
Energy Efficiency	PVD coating uses less energy than older methods.
Reduction in VOC Emissions	PVD does not use liquid solvents, so air stays cleaner and workers are safer.
Resource and Material Efficiency	The vacuum chamber helps use less material and energy.
Recyclability	Thin coatings are easy to take off, so you can recycle or reuse parts.

PVD uses less power and heat. This saves energy and helps the planet. You do not need liquid solvents. These chemicals can hurt air and water. PVD keeps the air clean and makes work safer.

PVD makes very little waste. The vacuum chamber lets you use just what you need. You do not throw away extra chemicals or metals. If you want to recycle a part, you can take off the thin PVD layer. This helps you recycle more and waste less.

Old methods like electroplating use wet baths and strong chemicals. These old ways can pollute the earth. PVD is a dry and clean process. You do not have to worry about toxic waste or spills. Picking PVD coating helps keep the earth safe.

🌱 When you choose PVD coating, you help make the world greener. You protect your workers and the planet.

PVD vs. Other Coatings

CVD Comparison

When you look at PVD and CVD coatings, you notice some big differences. PVD stands for Physical Vapor Deposition. CVD means Chemical Vapor Deposition. Both methods add a thin layer to your product, but they work in different ways.

PVD uses a vacuum to turn solid material into vapor. This vapor lands on your product and forms a thin film. CVD uses chemical reactions with gases to build up the coating. The result is a thicker and more uniform layer.

Here is a table to help you compare the two:

Coating Type	Thickness	Purity
PVD	Typically less than 5 microns	Less dense and less uniform
CVD	25-75 microns, highly uniform	High purity and uniformity due to chemical reactions

You will see that CVD coatings are much thicker than PVD. CVD also gives you a very pure and even layer. PVD coatings are thinner and may not be as dense. If you need a very thick and pure coating, CVD might be the better choice. If you want a thin, decorative, or hard layer, PVD works well.

Electroplating Comparison

Electroplating is another way to coat your products. This process uses electricity to stick metal ions onto your product’s surface. You dip your item in a liquid bath with metal salts, then run a current through it. The metal forms a layer on your product.

PVD coatings are different from electroplating in many ways. PVD creates a denser and more uniform layer. Electroplated coatings are often porous. This means water and air can get through, which can cause rust or damage. PVD coatings give you better corrosion resistance and hardness. You will find that PVD works better for demanding jobs where you need strong protection.

Electroplating also uses more chemicals and can create waste. PVD is a cleaner process. You do not need to worry as much about pollution or chemical spills.

Note: If you want a coating that lasts longer and protects better, PVD is often the smarter choice for industrial use.

Maintenance

You want your coated products to last as long as possible. PVD coatings make this easier for you. You only need to clean them gently. Use a soft cloth and mild soap. Stay away from harsh chemicals or rough materials. These can scratch or damage the coating. Regular checks help you spot any wear or problems early.

• Clean PVD coatings with soft cloths and mild soap.
• Avoid harsh chemicals and abrasive materials.
• Inspect coatings often to catch damage early.

Electroplated surfaces need more care. They can rust or wear out faster. You may need to clean them more often and use stronger cleaners. This can take more time and effort.

PVD coatings give you better performance in tough environments. They resist corrosion and wear much better than electroplated layers. This means you spend less time on upkeep and more time using your tools or products.

Performance

When you look at PVD coatings, you see they work better than many other coatings. PVD coatings help your tools and parts last longer. They make a tough layer on the outside. This layer stops scratches and dents. Your tools stay sharp and work well, even after lots of use.

You want your equipment to last a long time. PVD coatings help you do that. The hard layer keeps tools from wearing out fast. You will see your tools need fewer repairs. They also do not get dull as quickly.

Here are some ways PVD coatings help in real factories:

• Cutting tools and machine parts last longer with PVD coatings.
• These coatings are harder and resist wear better than old coatings.
• Tools with PVD coatings have less friction, so they move smoother.
• You spend less money fixing or replacing tools.
• PVD coatings are better for the environment because they use less energy and make less waste.

You see these good things every day in shops and factories. When you use PVD-coated drill bits, you do not have to stop work as much. Your tools last longer and need less cleaning.

PVD coatings also help tools slide better. When you cut metal or plastic, the tool moves with less effort. This keeps the edge sharp and gives you cleaner cuts. Fast cutting is easier and safer with PVD coatings.

Here is a table that shows how PVD coatings compare to other coatings:

Feature	PVD Coating	CVD Coating	Electroplating
Hardness	Very High	High	Moderate
Wear Resistance	Excellent	Good	Fair
Friction	Low	Moderate	High
Service Life	Long	Moderate	Short
Environmental Impact	Low	Moderate	High

You can see PVD coatings are the best for hardness and wear resistance. They also have low friction. These things help your tools work better and last longer.

Tip: Pick PVD coatings if you want sharp and strong tools. You will have fewer problems and your tools will work smoother.

PVD coatings also protect against heat and rust. You can use them in tough places, like factories or outside. The coating keeps your parts safe from rust, chemicals, and heat.

When you think about it, PVD coatings give you the best results for a long time. You get strong protection and save money. Your tools and parts work better and last longer. That is why many companies use PVD coatings for their important equipment.

You find PVD coating materials in lots of industries. They give strong protection and make things look shiny. These coatings help products last longer and stop rust. They also make items look nicer. You can pick Titanium Nitride, Diamond-Like Carbon, or Chromium Nitride for different jobs.

Coating Type	Key Benefits	Suitable Industries
Titanium Nitride (TiN)	Very tough and stops wear	Medical, Automotive, Manufacturing
Diamond-Like Carbon (DLC)	Makes tools slide easier and last longer	Medical, Automotive, Manufacturing
Chromium Nitride (CrN)	Stops rust and helps products work better	Medical, Automotive, Manufacturing

PVD coatings are good for the earth. They work on metal, glass, and plastic. If you want your products to work better and be safer, try PVD coatings. You can ask experts to help you pick the best one for your needs.

FAQ
