Powder Metallurgy and Metal Injection Molding How Do They Compare

Powder metallurgy and metal injection molding both help in making things. Powder metallurgy uses a simple and cheap way to make many strong parts. It also makes less waste. This is good for cars and airplanes. Metal injection molding can make tricky shapes and very exact high-density components parts. It is used for medical tools and electronics. But it needs more steps and costs more money.

Year	Powder Metallurgy (USD B)	Metal Injection Molding (USD B)
2024	4.35	2.96
2029	6.98	10.19 (2033 projection)

Choosing the right metalworking process manufacturing method changes the price, the strength of the product, and the way it is designed.

Key Takeaways

• Powder metallurgy makes big, strong parts quickly. It does not waste much material. This is Cost-effective process for cars and planes.
• Metal injection molding makes small parts with lots of detail. These parts are very exact. This is great for medical and electronics tools.
• Powder metallurgy uses bigger powders. It presses them into shape. MIM mixes tiny powders with binders. Then it injects them into molds.
• MIM parts are thicker and more exact. But they cost more and take longer to make than powder metallurgy parts.
• Powder metallurgy is good for making many simple or medium parts. It saves money and material.
• MIM is best for small, tricky parts that need to be very exact and smooth. It costs more to start using MIM.
• Both ways help cut down on waste and energy use. This helps companies reach green goals.
• You pick which way to use by looking at part size, how hard it is to make, what it is made of, how many you need, and your budget.

Powder Metallurgy

Process

Powder metallurgy has many steps to make strong parts for different uses. Each step changes how tough, hard, or exact the part will be. AFI Industrial Co., Ltd. is a top company in this area. They use new machines and check quality to make sure every part is the same.

Powder Production

The first step is making the powder. People use atomization, chemical reduction, or electrolytic deposition to get powder with the right size and shape. Good powder is very important. Small and even powder makes strong parts and better products. AFI picks each material with care. They make sure the powder flows well and is very pure.

Compaction

Then, the powder is mixed with other things to keep it even. The mix is pressed hard in special molds. This makes a “green part” that already looks like the final shape. The pressing force changes how dense and strong the part is. AFI uses machines to keep every part the same and very exact.

Sintering

After pressing, the green part is heated but not melted. This is called sintering. The heat makes the powder stick together and get stronger. AFI uses special furnaces to make the parts harder and tougher. The finished part keeps its shape and is always good quality.

manufacturing advantage of using powdered metals

Powder metallurgy has many good points over old ways of making metal parts. It lets people make tricky shapes and very exact sizes. The process uses almost all the starting material, so there is little waste. Making lots of parts is cheaper because less cutting and less waste happen. Mixing powders lets makers create new metals with better features. AFI makes sure every part is high quality and works well for tough jobs.

Some main good points are:

• Uses most of the material and wastes less
• Can make hard shapes
• Parts are always the same and very exact
• Saves money when making many parts
• Parts last longer and are stronger
• cost savings

Limitations

Powder metallurgy is not perfect for every job. It works best when making many parts at once. Very big or very thin parts may need other ways to be made. Still, for most jobs that need strong, tough, and special parts, powder metallurgy is a great choice. AFI Industrial Co., Ltd. keeps finding new ways to use powdered metals for today’s needs.

high-performance applications

Powder metallurgy helps many industries make metal parts. It lets companies make strong parts in a fast and good way. This process uses almost all the starting material, so there is less waste. Using less waste helps save money. Powder metallurgy is flexible. Engineers can design special powder metal products for many uses.

The table below shows where powder metallurgy is used and why it matters:

Industrial Application	Key Details	Market Share / Significance
Aerospace & Defense	Uses titanium alloy powders for lightweight, high-strength aircraft parts; leads market demand	Leading application sector
Automotive	Uses ferrous powders in engine, transmission, chassis parts; significant due to mechanical and cost advantages	Major application sector
Electrical and Electronics	Included as a key application segment	Not quantified
Industrial Machinery	Important application sector, especially in Asia-Pacific region	Not quantified
Medical	Recognized as an application sector	Not quantified
Ferrous Powders	Dominant powder type with improved mechanical properties; widely used in automotive and industrial sectors	Approximately 75% market share (2024)

Car makers use powder metallurgy to make gears and bearings. They also make other strong parts this way. These parts need to be made just right and always the same. Powder metallurgy is good for making lots of parts at once. This is why car companies like it. Airplane companies use titanium and nickel powders to make light and strong parts. These parts help planes use less fuel and stay safe.

Electronics companies use powder metallurgy for contacts and magnets. They also use it for heat sinks. The process lets them mix different materials for better parts. This makes electronics last longer and work better. Machine makers pick powder metallurgy because it makes tough parts. These parts can handle heavy work and hard jobs.

Medical companies use powder metallurgy for tools and implants. They also use it for dental devices. The process lets them use safe materials for people. It also makes sure every part is made very carefully. This keeps patients safe.

AFI Industrial Co., Ltd. is a leader in powder metallurgy. They offer many kinds of materials, like iron, copper, and aluminum. They also have high-temperature alloys. Their quality system is ISO9001-certified. This means every step is checked for quality. AFI uses special testing tools and has a skilled team. They make sure every product is always good and works well.

Powder metallurgy helps make tricky parts for many jobs. It uses many materials and can make lots of parts fast. This is why many companies trust it to save money and get good results.

Metal Injection Molding

Process

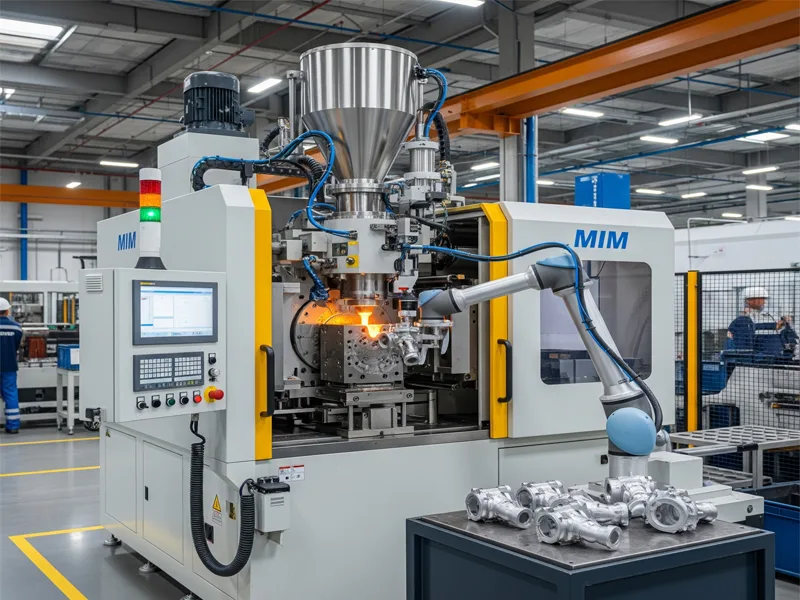

Metal injection molding is good for making small, tricky metal parts. It can make parts with lots of detail and very exact shapes. The process starts with fine metal powders and a binder. These are mixed to make a feedstock. The feedstock goes through a few steps before it becomes a finished part.

Feedstock Preparation

First, engineers mix fine metal powder with a thermoplastic binder. The powder is very tiny, between 2 and 15 microns. This mix turns into pellets. The pellets have about 60% metal and 40% binder. The binder helps the powder move during molding. The material picked depends on what the part needs. Some parts need to be strong or not rust. Others need to be magnetic. Stainless steel, low-alloy steel, titanium, and tungsten are used a lot in MIM. The feedstock quality is important for making good parts.

Injection Molding

Next, the pellets are heated up. They are pushed into a mold. This shapes the material into a “green part.” The green part looks like the final part. Injection molding can make shapes with thin walls and small details. Many consistent parts can be made at once. This is good for making lots of parts fast. The mold must be made to allow for shrinking later.

Debinding

After molding, the green part has both metal and binder. The debinding step takes out most of the binder. Heat or chemicals are used for this. What is left is a “brown part.” The brown part is weak and mostly metal powder. Debinding is special to MIM. It does not happen in regular powder metallurgy. The way debinding is done depends on the material and size.

Sintering

The brown part is put in a hot furnace. Sintering makes the metal particles stick together. It also removes the last of the binder. The furnace gets very hot, up to 2500°F. This is hotter than powder metallurgy. The part gets smaller, about 75-85% of its first size. Sintering makes the part strong and dense. The part can be almost as strong as regular metal. Batch furnaces can be used for different materials and sizes. But sintering can take up to 24 hours.

MIM uses fine powders, binders, and hot furnaces. This lets it make parts with tricky shapes and good material strength.

Advantages

Metal injection molding has many good points over other ways to make metal parts:

• It can make lots of small, detailed parts that are always the same.
• Many materials can be used, like stainless steel and titanium.
• MIM parts are strong and dense, like regular metal parts.
• Parts come out in the right shape, so less cutting is needed.
• The process lets engineers design parts with thin walls and hard shapes.
• MIM is great for medical, dental, car, airplane, and electronics parts.

A table below shows how MIM and powder metallurgy are different:

Process Step	Metal Injection Molding (MIM)	Powder Metallurgy (PM)
Powder Size	Very fine (2-15 microns)	Coarse (50-100 microns)
Feedstock Preparation	Metal powder + binder pellets	Metal powder only
Forming Method	Injection molding for complex shapes	Die compaction for simple shapes
Debinding	Required	Not required
Sintering	Batch furnace, high density (95-99%)	Continuous furnace, lower density
Part Complexity	High, thin walls possible	Limited by pressing method
Dimensional Accuracy	High, minimal machining needed	Lower, may need secondary operations

Limitations

Metal injection molding also has some problems:

• It costs a lot to start because of special tools and machines.
• Making new molds or changing designs can take a long time.
• The process has many steps, so it can be slow.
• Only some materials work well with MIM.
• It is hard to make very tiny features or super thin walls.
• Using binders can cause problems for the environment.
• MIM works best for small or medium parts, not big ones.

Companies need to think about these things before picking MIM. MIM is good for making strong, tricky parts from many materials. But it needs careful planning and money.

high-performance applications

Metal injection molding helps industries make small, tricky metal parts. This process makes parts that are strong and very exact. Many companies pick MIM because it can make shapes that are hard to do with other ways. MIM uses many materials, so it works for lots of jobs.

The table below shows where MIM is used and what parts it makes:

Industry	Common MIM Part Types
Automotive	Engine components, transmission parts, steering system components
Electronics	Connectors, housings, internal components
Medical Devices	Surgical instruments, implants, diagnostic equipment parts
Aerospace	Small, intricate metal parts requiring high precision
Consumer Electronics	Small, intricate metal parts
Firearms	Precision metal components
Industrial Machinery	Various small metal parts
Jewelry	Intricate metal pieces
Sporting Goods	Specialized metal components

Car makers use MIM for engine and transmission parts. These parts need to be strong and fit just right. Electronics companies use MIM for connectors and housings. These must be small and made very carefully. Medical device makers use MIM for tools and implants. The process helps them make safe and good products.

Aerospace companies need light and strong parts. MIM lets them make small, detailed pieces that meet tough rules. Firearms and sporting goods use MIM for parts that must work well under stress. Jewelry makers use MIM for fancy designs that need fine detail.

Metal injection molding helps many jobs by letting companies pick different shapes and materials. Companies can make superior strength parts that are both tricky and strong.

Some common uses are:

• Hinges for laptop computers
• Watch cases and tiny gears
• Plugs and connectors for cell phones
• Radiation shields and furnace parts made from tungsten alloys
• Heat sinks and electrical connectors using copper alloys

MIM is used in medical, aerospace, car, defense, and electronics fields. Stainless steel MIM parts are in medical tools and boat hardware. Titanium parts are used in planes and sports gear. Tungsten alloys are good for radiation shields. Copper alloys help with electric and heat jobs.

These uses show how MIM helps many different areas. The process lets companies make lots of parts with tight fits and tricky shapes. Companies save money and waste less when making many parts. MIM keeps growing as more people see how useful it is.

Powdered Metallurgy vs. Metal Injection Molding

Process Steps

Powder metallurgy and metal injection molding both use metal powders. But, their steps are not the same. Powder metallurgy starts with mixing the powder. Next, the powder is pressed into shape. Then, it is heated in a furnace. Sometimes, there are extra steps after. This method uses bigger powders and a furnace that runs all the time. This makes parts faster and in large numbers. Metal injection molding starts by mixing fine powder with a binder. The mix is made into pellets. These pellets are put into a mold. After molding, the binder is removed. Then, the part is heated in a batch furnace. This takes longer but makes parts very dense and exact.

The table below shows how the steps are different:

Step	Powder Metallurgy (PM)	Metal Injection Molding (MIM)
Powder Size	40–150 μm	5–20 μm
Blending/Preparation	Powder blending	Feedstock preparation (powder + binder)
Forming	Compaction in die	Injection molding
Debinding	Not required	Required
Sintering	Continuous furnace, faster per part	Batch furnace, longer cycle
Post-Processing	As needed	As needed

Powder metallurgy technology is suitable for manufacturing many high-quality parts. It can save money when making large quantities of parts. Metal injection molding is more difficult, but can make parts with complex shapes. AFI Industries, Inc. uses powder metallurgy to make strong parts. They help industries that need parts to work well every time.

Companies that want to save money and waste less often pick powder metallurgy. It is fast and uses almost all the material.

Design Flexibility

Design flexibility is important when picking a process. Powder metallurgy can use many materials like iron, copper, and aluminum. It can also use special alloys. This helps engineers make parts for many jobs. The process can make small or big parts. It is good for car gears, bearings, and strong parts.

Metal injection molding is best for small, tricky parts. It uses powders mixed with binders. This means only some materials can be used. MIM makes very exact parts. Most times, no extra cutting is needed. This is great for medical tools, electronics, and other special uses.

The table below shows the main differences in design:

Aspect	Powder Metallurgy (PM)	Metal Injection Molding (MIM)
Material Flexibility	Wide range, tailored alloys	Limited to injection-suitable powders
Size Range	Small to large parts	Best for small to medium parts
Design Complexity	Complex shapes possible, but with limits	Highly complex, intricate shapes
Precision & Tolerances	Moderate, may need machining	High, minimal post-processing
Production Volume	Cost-effective for mass production	Ideal for moderate to high volumes

AFI’s powder metallurgy parts show this flexibility. They are used in cars, planes, and electronics. AFI can mix materials to make each part strong and long-lasting.

Part Complexity

How tricky a part is can help pick the right process. Metal injection molding can make very detailed parts. It can make thin walls, long holes, and odd shapes. MIM parts can weigh up to 300 grams and be up to 150 mm big. Some walls can be as thin as 0.025 mm. This makes MIM good for small, detailed parts in electronics and medical tools.

Powder metallurgy can make bigger parts, even over 10,000 grams. But, the shapes are simpler and walls are thicker. Most walls are at least 2 mm thick. Powder metallurgy cannot make tiny details like MIM. But, it is great for strong parts in cars and machines. AFI uses powder metallurgy to make gears and other strong parts.

Attribute	Metal Injection Molding (MIM)	Powder Metallurgy (PM)
Component Mass (g)	Up to 300	Up to 10,000 or more
Maximum Dimension (mm)	Up to 150	Larger parts possible
Minimum Wall Thickness (mm)	As low as 0.025 (typically 5)	Typically 2 or more
Geometrical Complexity	Very high, intricate features	Lower, simpler shapes
Density and Strength	95–100% theoretical, high strength	85–90% theoretical, robust

Powder metallurgy is best for making lots of big, simple parts. It saves money and uses most of the material. Metal injection molding is better for small, tricky parts that need to be very exact.

Material Properties

Material properties are important when picking powder metallurgy or metal injection molding. Both use metal powders, but the finished parts are not the same. Metal injection molding makes parts that are very dense and have few pores. Tests show MIM parts can be 95% to 99% as dense as solid metal. This makes MIM parts strong and able to stretch without breaking. For example, MIM magnesium alloy parts can be as strong as 120 MPa for yield strength and 255 MPa for tensile strength. These numbers are almost like cast metals. MIM parts have very few leftover pores, so they are strong and good for tough jobs.

Powder metallurgy parts are less dense, usually between 85% and 92%. This means they have more pores inside, so they are not as strong as MIM parts. Still, powder metallurgy makes tough parts that work in many fields. This process can use many materials, like iron, copper, aluminum, and special alloys. Companies such as AFI Industrial Co., Ltd. use powder metallurgy to make parts that last a long time and resist wear. They check every part carefully to make sure it meets the right standards.

Speed & Scalability

Speed and scalability are important when picking a process. Powder metallurgy is good for making lots of parts fast. It uses machines that press and heat the metal powder. This lets companies make thousands or millions of parts each year. AFI Industrial Co., Ltd. has over 100 machines to keep things moving quickly. They can make small or big orders. If more parts are needed, they can make more without trouble.

Metal injection molding can also make many parts, but it takes more time. The process has extra steps. First, the feedstock is made. Then, it is put into molds. Next, binders are removed. Last, the parts are heated. Each step takes time, especially removing binders and heating. Sintering can take a few hours or even a whole day. MIM works best for small or medium parts, from 0.1 to 150 grams. Making lots of parts helps spread out the cost of the molds.

Aspect	Powder Metallurgy	Metal Injection Molding
Typical Volume	High (thousands to millions/year)	Medium to high (thousands to millions/year)
Production Speed	Fast, continuous	Slower, batch-based
Scalability	Easy to scale for large orders	Scalable, but best for small/medium parts
Part Size Range	Small to large	Small to medium

Powder metallurgy is fast for big orders. Metal injection molding is good for small, tricky parts made in large numbers.

Environmental Impact

Both powder metallurgy and metal injection molding help the environment. Powder metallurgy uses almost all the metal powder. This means very little is wasted. Parts are made close to their final shape, so less cutting is needed. This saves energy and makes less scrap. Sintering in powder metallurgy uses lower heat than melting, so it saves even more energy. Many companies, like AFI Industrial Co., Ltd., use recycled powders. This helps the planet and saves new materials.

Metal injection molding also uses most of the material. Up to 97% of the powder is used. Leftover feedstock is often recycled. This cuts down on waste. MIM uses fewer steps than old ways of making parts, so it needs less energy. Newer machines and filters help keep the air clean. When more parts are made, the effect on the environment for each part goes down. This makes MIM a good choice for companies that want to be green.

• Powder metallurgy saves energy and makes less waste.
• Metal injection molding uses almost all the powder and recycles leftovers.
• Both ways help companies reach their green goals.

Typical Uses

Powder metallurgy and metal injection molding are used in many fields. But, they are best for different jobs. Powder metallurgy makes strong parts for cars, bikes, home machines, power tools, and office gear. AFI Industrial Co., Ltd. makes gears, bearings, and other strong parts this way. It is good for parts that must be tough and made in big numbers.

Metal injection molding is used for small, tricky parts that need to be very exact. It is used for eyeglass hinges, watch cases, laptop hinges, and medical tools. MIM is popular in cars, planes, electronics, and medical fields. It lets companies make parts with thin walls and tiny details that are hard to do with other ways.

Technology	Common Applications	Industry Sectors	Key Features
Powder Metallurgy	Gears, bearings, bushings, structural parts	Automotive, appliances, tools	High strength, large volumes, cost-effective
Metal Injection Molding (MIM)	Hinges, watch cases, medical tools, connectors	Medical, electronics, aerospace	Small, complex, high-precision, smooth finish

Powder metallurgy is best mass production of pm products parts in large numbers. Metal injection molding is great for small, detailed parts in special jobs.

Powdered Metal Process Selection

When to Use Powder Metallurgy

Engineers pick powder metallurgy to make many strong parts. This process is good for gears, bearings, and other big machine parts. It works well in cars and machines. Powder metallurgy is great for making lots of parts at once. It uses almost all the material, so there is less waste and it saves money. Companies like this method for metals that are hard to melt, like nickel-based superalloys or tough metals such as tungsten and molybdenum.

Aerospace companies use powder metallurgy for gas turbine disks made from nickel alloys. These disks need to be strong and have no defects. Medical device makers use this process for titanium implants. The process makes these implants strong and gives them a good structure. Powder metallurgy can also make parts close to their final shape. This means less cutting and faster work.

AFI Industrial Co., Ltd. helps with both new designs and big orders. Their good machines and careful checks make them a trusted choice for strong, reliable parts.

Powder metallurgy is best for big, strong parts and when saving material is important.

When to Use MIM

Metal injection molding, or MIM, is used for small, tricky metal parts. It mixes the easy shaping of plastic molding with the strength of metal. MIM is good for making shapes that are hard to get with other ways. It works for both small and big batches, especially when parts need thin walls or tiny details.

Medical, electronics, and airplane companies use MIM for things like surgical tools, connectors, and small engine parts. MIM can use many materials, like stainless steel, titanium, and hard alloys. The process is fast and keeps parts very exact, even when making many at once.

Designers choose MIM when they need parts that are small, detailed, and must fit just right. MIM is also good for strong parts that are too tiny or detailed for regular powder metallurgy.

MIM is the best choice for small, detailed parts that need to be very exact.

Key Factors

Size & Complexity

How big and tricky a part is matters a lot. Powder metallurgy is good for bigger parts and simple shapes. It can make heavy parts like gears or bushings. But it is not good for very thin or tiny features.

MIM is great for small, detailed parts. It can make thin features, even as small as 0.025 mm. MIM is perfect for watch cases, eyeglass hinges, or medical parts with fine details.

Material Needs

Picking the right material is important for both ways. Powder metallurgy can use many materials, like iron, copper, aluminum, nickel, titanium, and even some ceramics. This helps engineers pick what works best, like strong, rust-proof, or magnetic parts.

MIM also uses many materials, such as stainless steel, titanium, and hard alloys. But the powders must be very fine and work with the binder. Both ways need careful control of powder size and purity for good parts.

Volume

How many parts you need changes the best choice. Powder metallurgy is best for making lots of parts. The cost of tools is spread out over many pieces. This is why car and machine makers like it.

MIM gets cheaper when making more parts, especially if the parts are tricky. The first tools cost more, but each part costs less in big batches. MIM is also good for medium amounts if the parts are complex.

Budget

Money matters when picking a process. Powder metallurgy usually costs less to start. This is good for small budgets or smaller orders. It also saves money by wasting less material and needing less extra work.

MIM costs more at first because of special molds and machines. But it is cheaper per part for tricky, exact parts when making many. Companies must think about the first cost and long-term savings, especially for parts that need to be very exact.

People should think about size, shape, material, how many parts, and money before choosing powder metallurgy or MIM. AFI Industrial Co., Ltd. gives good advice and can help with both small tests and big orders.

Industry Examples

Many industries use powder metallurgy and metal injection molding. These methods help solve hard engineering problems. Companies pick them to save money and make better parts. They also let engineers design new shapes.

Automotive Industry

Car makers use powder metallurgy for gears and rods. They also make valve seats this way. These parts have tricky shapes and must fit just right. Powder metallurgy makes parts that are almost ready to use. This means less extra work is needed. It saves time and money. Car companies like this process for making lots of parts fast.

Aerospace Industry

Airplane companies need light and strong materials. They use powder metallurgy for blades and nozzles. They also make other important parts with it. These parts must handle heat and stress. Powder metallurgy gives the control needed for these jobs. It also lets them use special alloys. These alloys help planes use less fuel and weigh less.

Biomedical Industry

Medical companies use metal injection molding for tools and implants. They make things like surgical and dental implants. These parts must be safe for the body and very exact. MIM makes small, smooth parts with tight fits. This helps implants work well and feel comfortable.

Additional Industry Applications

• Electronics: MIM makes connectors and covers with thin walls. These parts are strong and light.
• Industrial Machinery: Powder metallurgy makes bushings and bearings. These last long and resist wear in big machines.
• Consumer Products: MIM is used for watch cases and hinges. It also makes parts for sports gear.

Companies pick powder metallurgy and metal injection molding to save money and make strong parts. These methods let them design new shapes and work for many jobs. AFI Industrial Co., Ltd. helps with both small tests and big orders in many fields.

The table below shows how different industries use these methods and why:

Industry	Examples of Components	Reasons for Choosing PM/MIM
Automotive	Gears, connecting rods, valve seats	Makes tricky shapes, saves money, flexible designs
Aerospace	Turbine blades, rocket nozzles, structural parts	Light, strong, and made with care
Biomedical	Surgical instruments, dental implants, orthopedic implants	Safe for the body, very exact, works well

These examples show how powder metallurgy and metal injection molding help industries meet hard needs and keep costs low.

The table below shows how powder metallurgy and metal injection molding are alike and different:

Aspect	Powder Metallurgy (PM)	Metal Injection Molding (MIM)
Starting Material	Metal powders	Metal powders mixed with polymer binder
Shape Complexity	Good for many shapes, but limited by compaction	Excellent for intricate shapes
Sintering Temperature	Lower	Higher
Part Size Limitations	Larger parts possible	Best for small parts
Cost Considerations	More economical for larger parts	Higher cost, justified by complexity

Picking the right method helps get the best part for the job. It also helps save money and makes sure the part works well. AFI Industrial Co., Ltd. can help with powder metallurgy choices. To learn more, people can check out APMI International, MPIF, and PickPM.

FAQ
