Custom Metal Parts Spray Painting Services: Benefits and Drawbacks

When you want a nice finish on metal parts, you want it to look good and last long. Custom metal parts spray painting services is a cost-effective way. You can get colors that match well, a smooth layer, and strong protection. Many companies pick custom metal parts spray painting services because it costs less, is good for small parts, and does not need special tools or heat. AFI Industrial Co., Ltd. gives an expert coating solution that can help you get great results for your spray painting projects.

Key Takeaways

• Spray painting gives a smooth look and covers parts evenly. You can pick from many colors and textures for custom metal parts.
• You must first clean and prime the surface. This helped the finish stay strong and increased lifespan.
• Spray painting is quick, and it can be effectively reduced in cost. It is also easy to fix spots to keep parts looking new.
• This way works on many metals and tricky shapes. That is why it is used in the car and airplane industries.
• Spray painted finishes need care often and last 2 to 4 years. This is not as long as powder coating or metal spraying.
• Using eco-friendly paints and good airflow helps the planet. It also keeps workers safe.
• You should pick spray painting based on your project size and budget. Think about how long you want the finish to last and how much care you can give.

Spray Painting Overview

Process Steps

Spray painting gives you a smooth, even finish on metal parts. You need to follow each step in the painting process to get the best results. Here is how the painting process works at AFI Industrial Co., Ltd.:

Preparation

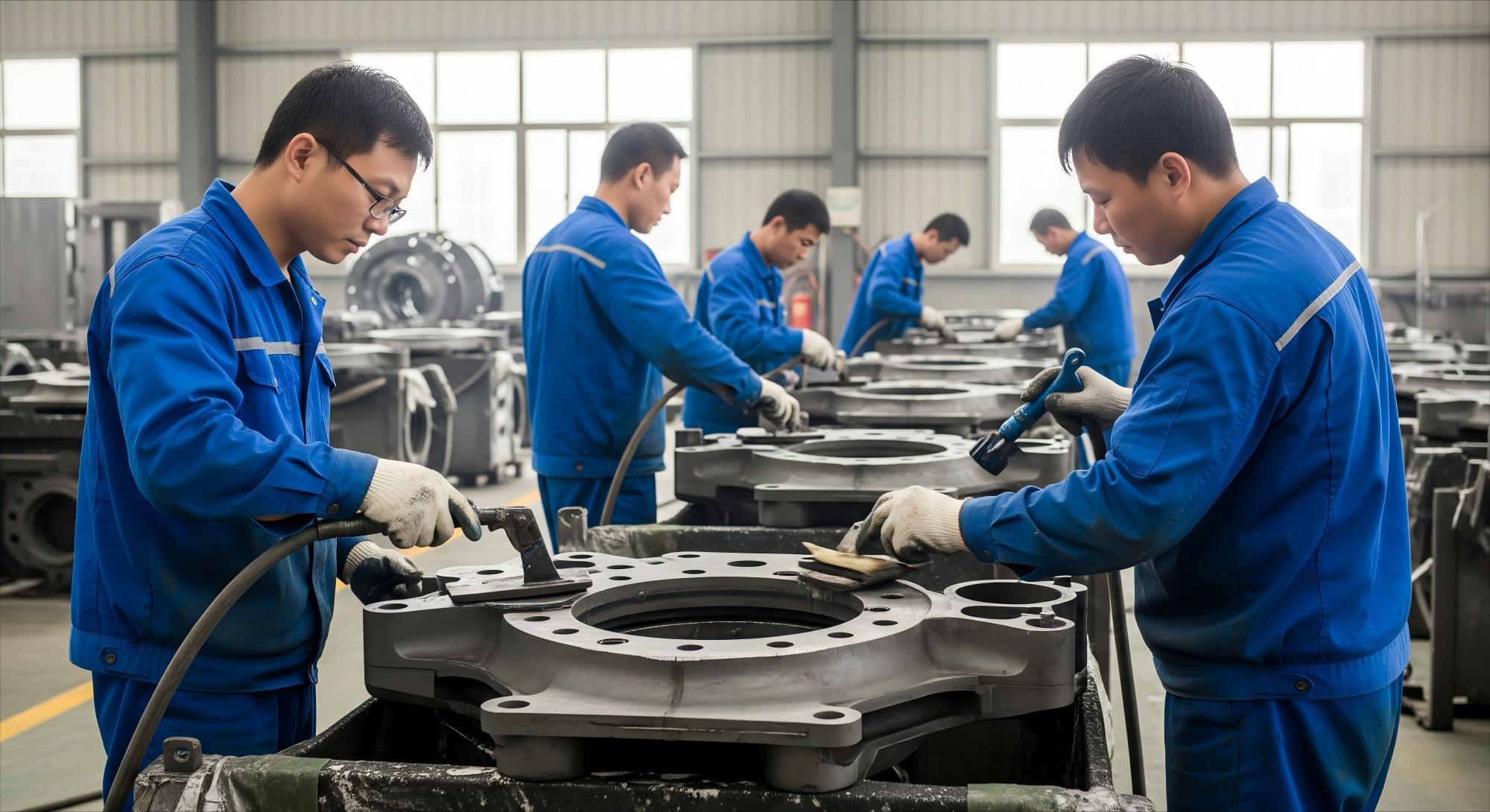

1. Start with surface preparation. You clean the metal to remove oil, dust, and dirt. This step helps the paint stick well.
2. If you see rust, treat it with a special primer. This stops chipping and peeling later.
3. Use direct-to-metal primers that match your metal type. This makes the painting process stronger.

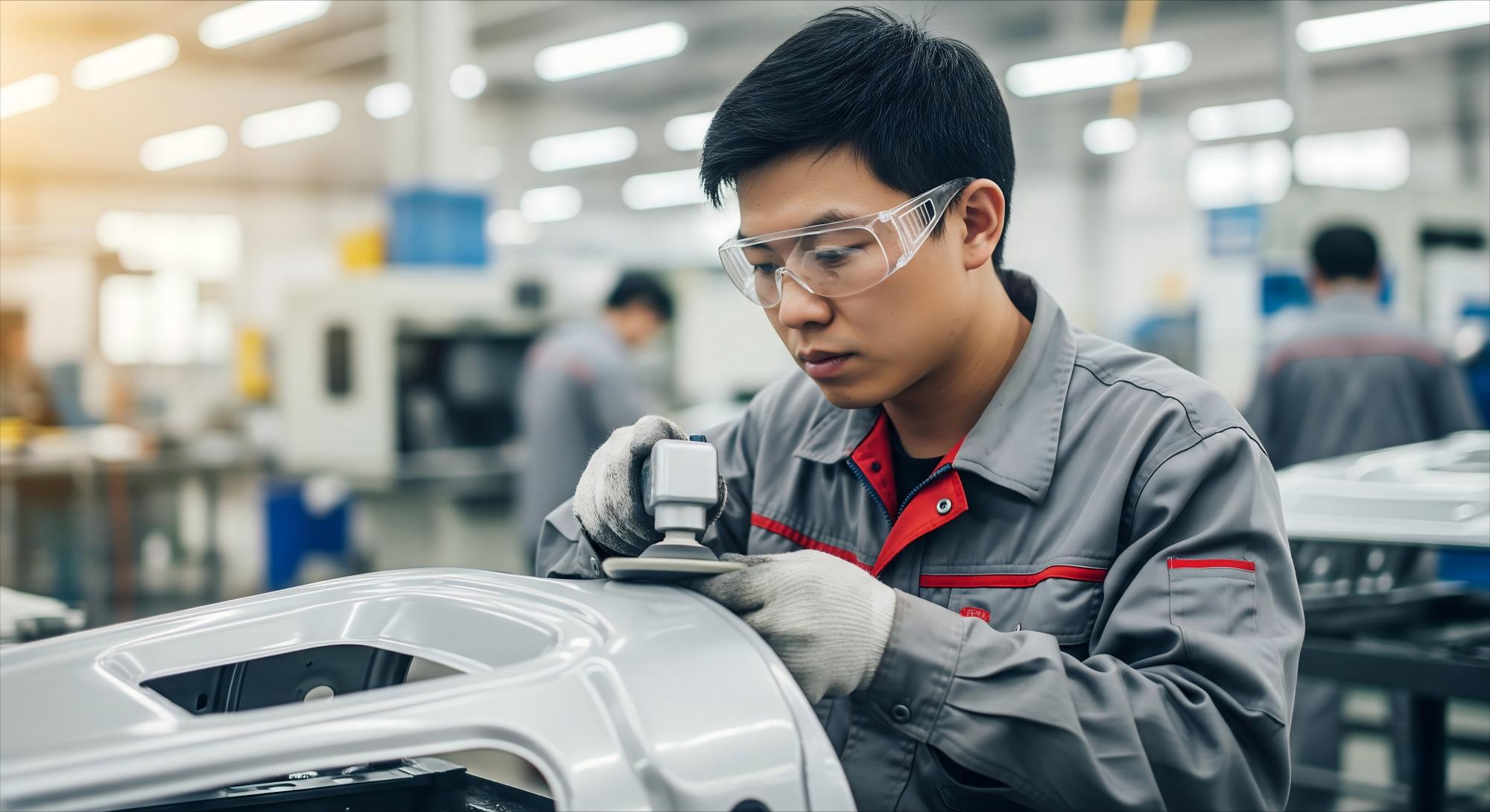

4. Sand the surface to make it smooth. This step is important for a flawless finish.
5. Make sure the area is dry and not too hot. Good preparation means better painting.

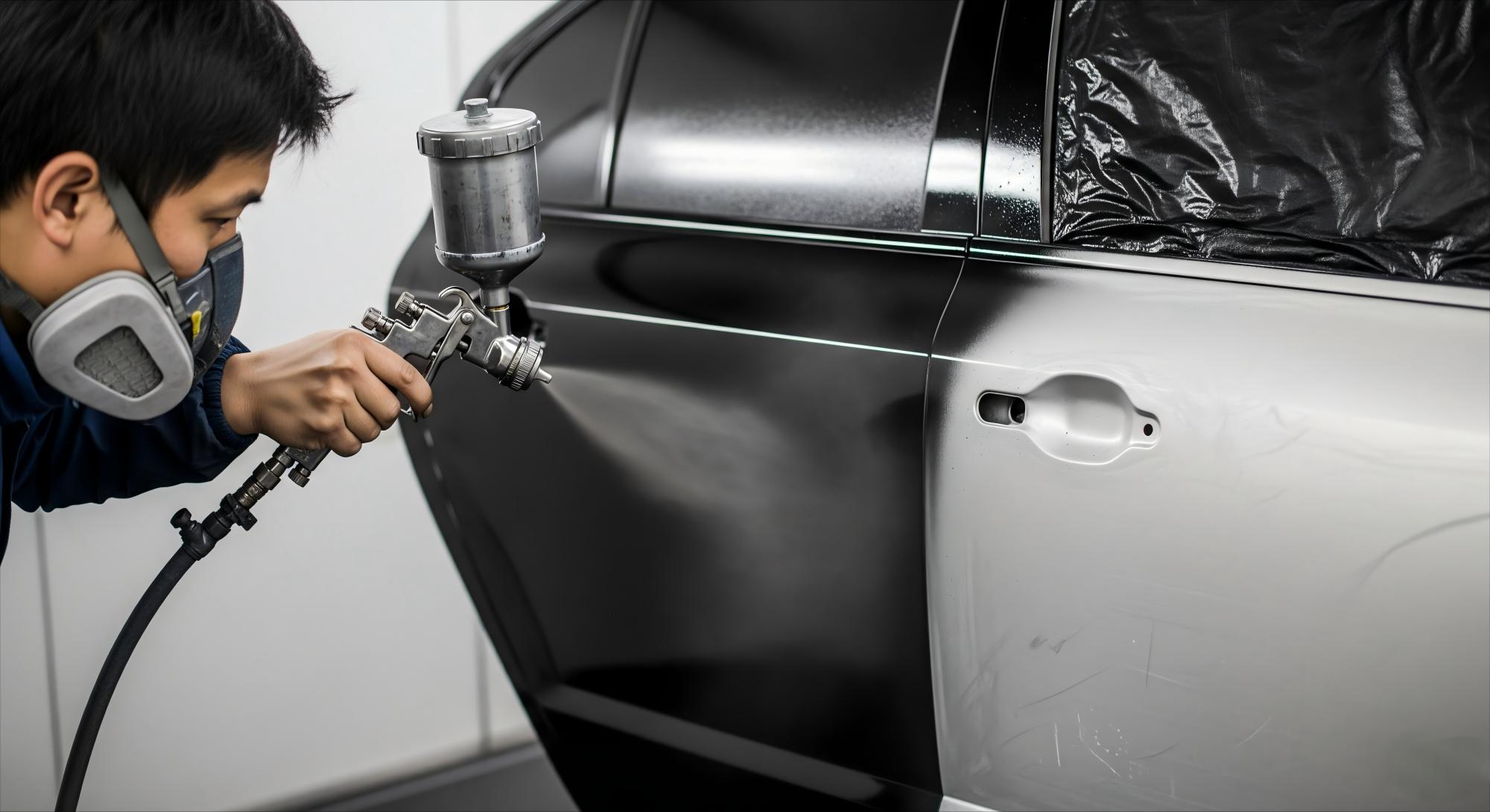

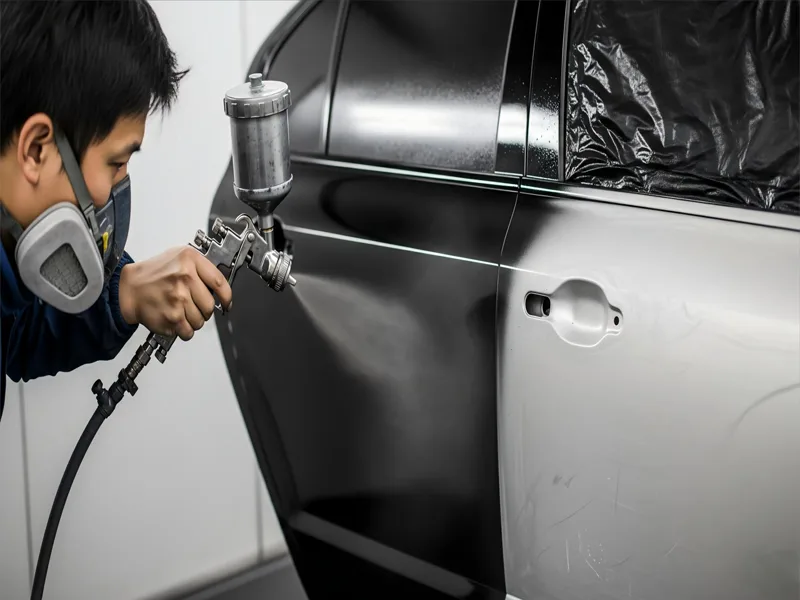

Application

1. Apply a primer coat first. This creates a base for the next layers.
2. Use spray painting to cover the part with even strokes. Hold the spray gun about 12 inches away for best coverage.
3. Add two coats of paint for durability. Let each coat dry before adding the next.
4. Choose the right spray technique for your part. Spray painting works well for detailed or hard-to-reach areas.

Finishing

1. Let the painted part dry fully. Drying and curing can take at least 12 hours.
2. Polish the surface for a bright, smooth finish.
3. Check the finish for any defects. Quality checks help you get the best painting results.

Tip: Good surface preparation and careful painting steps help you avoid drips, sags, or uneven finish.

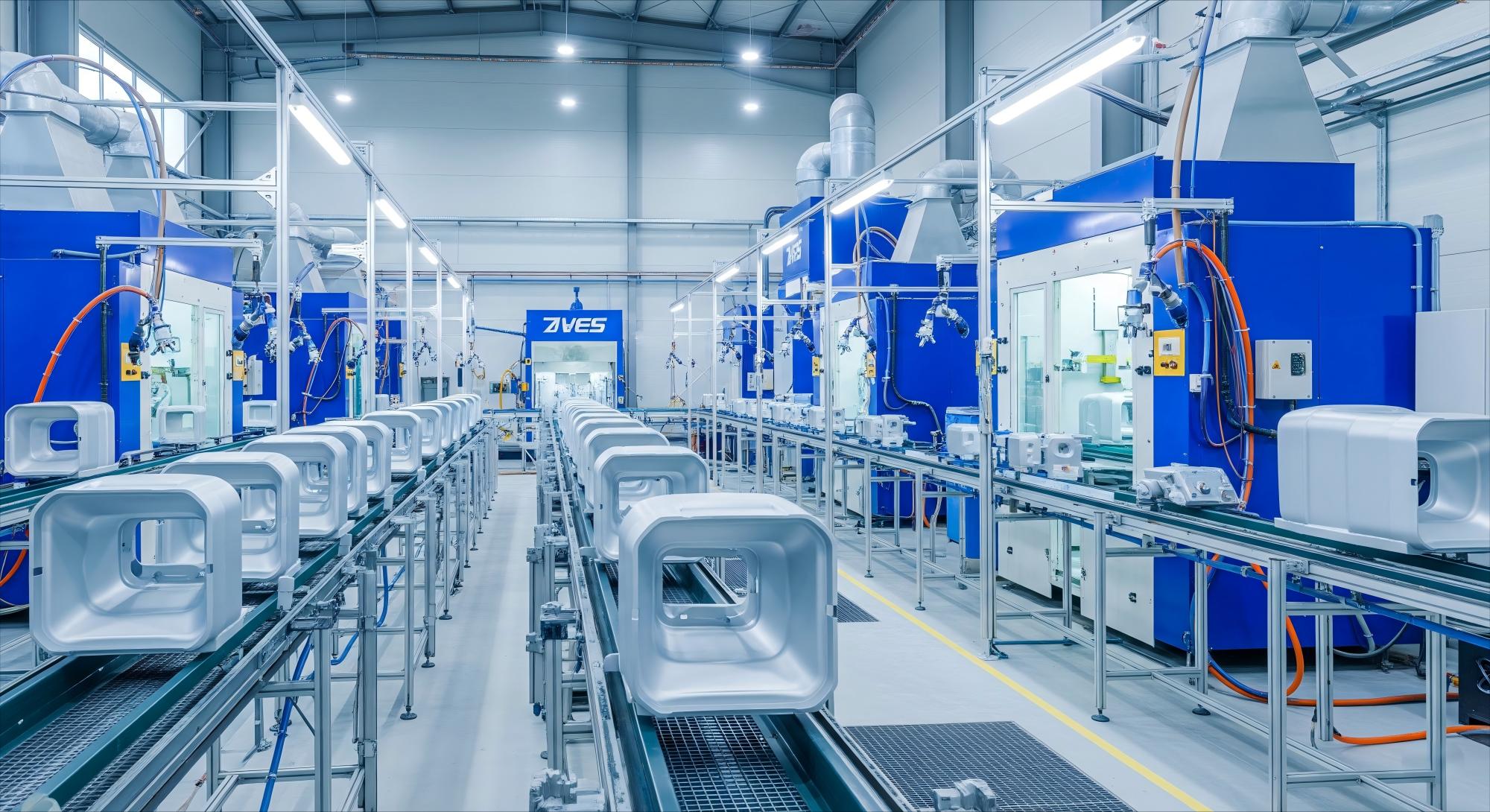

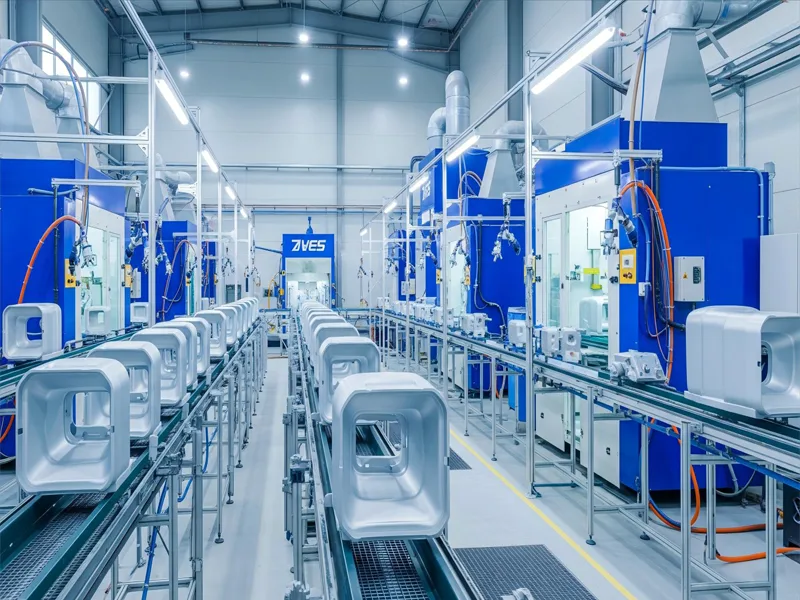

Equipment Used

You need the right equipment for spray painting. Professionals use both manual and automatic spray guns. Air atomization systems, HVLP, and LVLP sprayers give you fine, even coats. Air assist sprayers combine a smooth finish with less paint waste. You also see electrostatic spray systems for better paint transfer. Paint booths keep the painting process clean and safe. Accessories like filters, hoses, and spray tips help control the finish. Testing tools check paint thickness, adhesion, and hardness. Respiratory gear keeps you safe during painting.

Applications

Spray painting is popular in many industries. You see it in automotive, aerospace, furniture, construction, and electronics. The painting process covers large metal parts quickly and gives a strong finish. High-quality paints last longer and protect against rust and fading. You can use spray painting furniture, metal parts, and even plastics or glass. Here is a table showing common uses:

Industry	Typical Applications
Aerospace	Primers, protective coatings, and finishing metal parts
Automotive	Primers and finishing coats for durability and looks
Furniture	Spray painting furniture and metal hardware
Construction	Protective and decorative painting on metal structures
Electronics	Coating metal parts for protection and appearance

Spray painting gives you a fast, reliable way to get a great finish on many products. The painting process, when done right, adds value and protection to your metal parts.

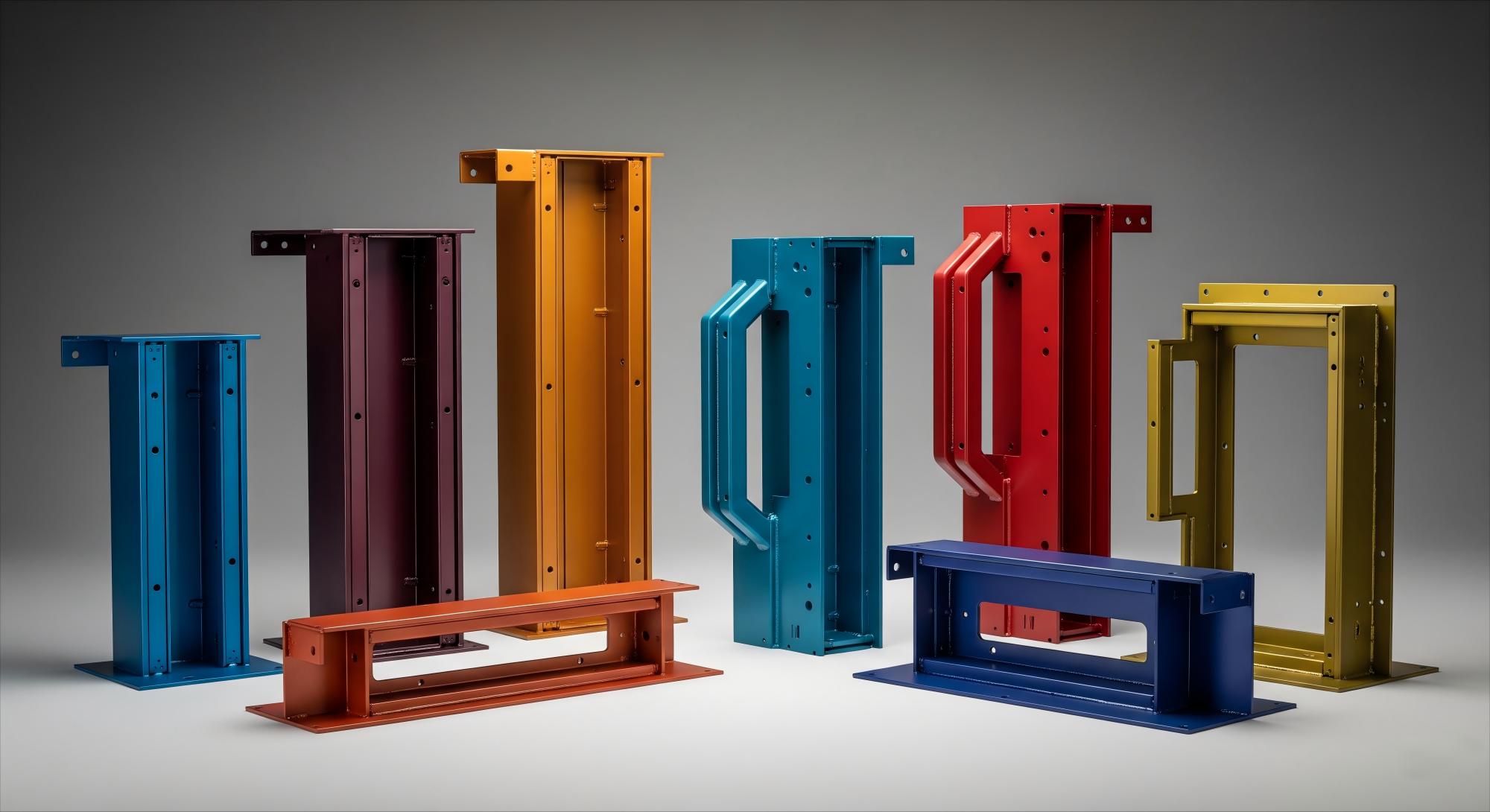

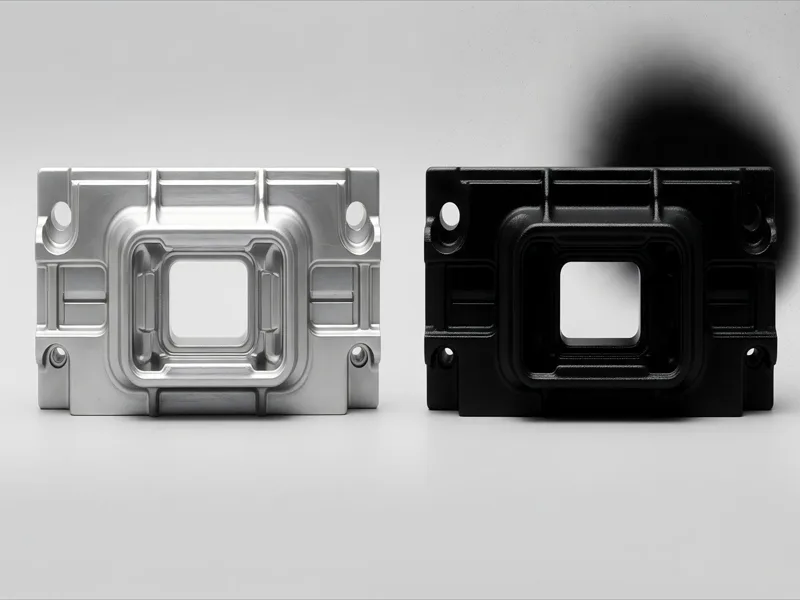

Custom Metal Parts Spray Painting Services

Customization Options

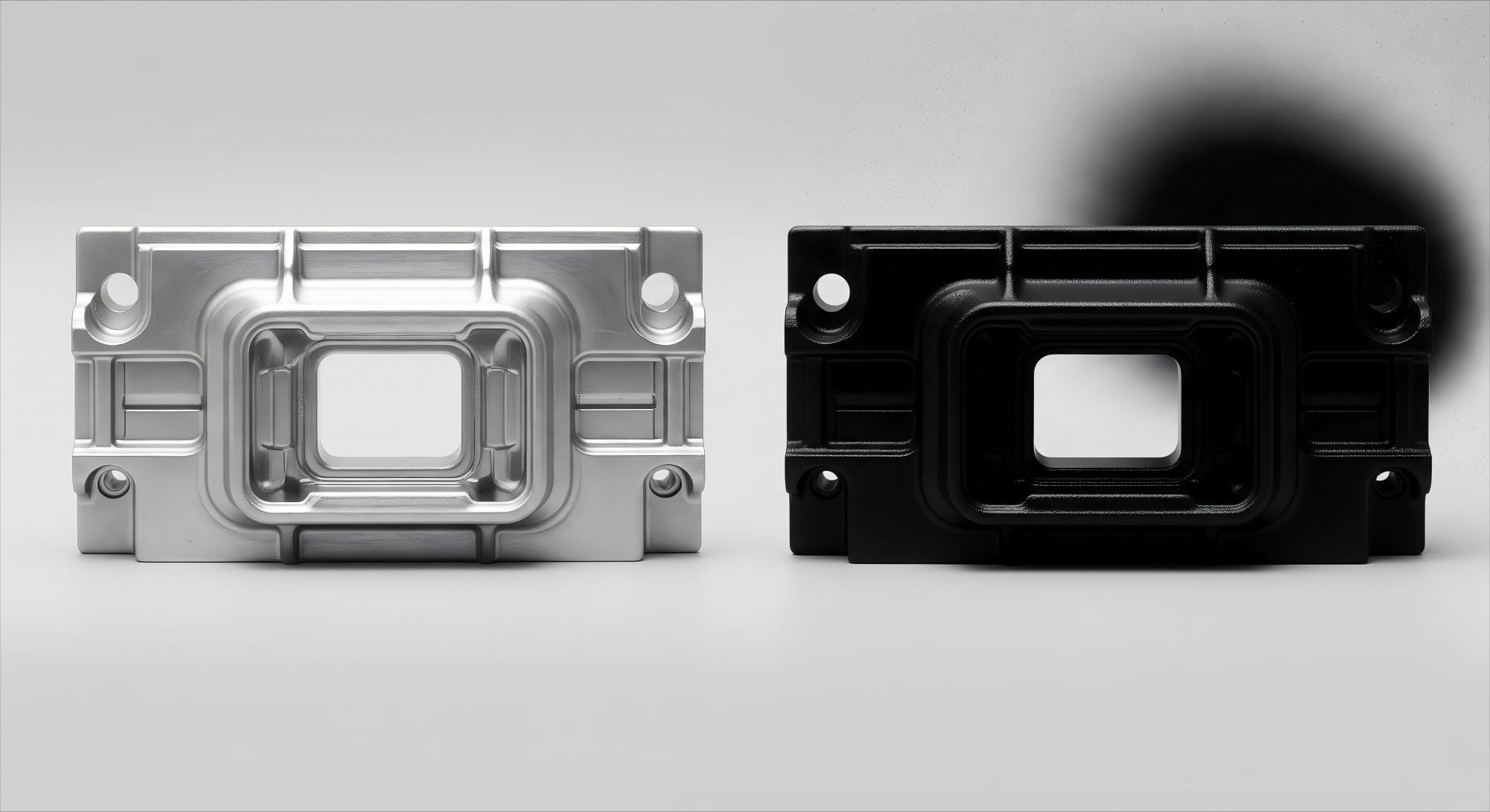

Custom metal parts spray painting services can change how your metal parts look. You can pick from many colors, gloss levels, and textures. This helps you match your brand or make your products unique. AFI Industrial Co., Ltd., will provide you with the most suitable coating solution, and you can control every part of the painting process. You can choose a finish that looks good and protects your parts.

Here is a table that shows the main ways you can customize:

Customization Aspect	Details
Color Options	Over 76,000 powder colors, including Pantone and RAL matches
Gloss Levels	Flat matte to high gloss sheens
Textures	Fine to heavy anti-skid finishes, including metallics
Special Effects	Hammertone, veins, multi-component effects
Custom Color Matching	Fast turnaround with physical samples or color codes
Powder Chemistry	For indoor, outdoor, high humidity, or high UV use
Order Sizes	Small batches to large production runs
Additional Features	Anti-microbial and anti-graffiti options

You can match colors to Pantone or RAL standards. You can also pick the gloss and texture you want. The painting process makes sure your parts look and feel right. This helps your products get high-quality coatings.

Quality Control

You want your custom metal parts spray painting services to always be good. AFI Industrial Co., Ltd. checks quality at every step. These checks help the paint stick well and last a long time.

1. Set clear rules for how the paint should look and feel.
2. Use tools to check paint thickness and how well it sticks.
3. Look at parts before, during, and after painting to find problems early.
4. Watch the painting process to stop blisters or cracks.
5. Use good equipment for even paint and strong coatings.
6. Train workers to spot and fix problems for the best finish.
7. Check the equipment often to keep the paint looking good.

These steps help you get a finish that looks nice and lasts. Good paint adhesion means your parts stay strong and look new longer.

Environmental Responsibility

Custom metal parts spray painting services can help the planet. AFI Industrial Co., Ltd. uses paints that are better for the environment. The painting process uses water-based, low-VOC, and powder coatings to lower pollution. These coating materials help keep people and nature safe.

• Water-based paints have less VOCs and are safer for all.
• Powder coatings make less waste and stick well to parts.
• High-solids and bio-based paints use fewer chemicals and come from plants.
• Good painting methods and air flow keep the air clean.
• Safe waste and recycling programs help the environment.

By picking these painting services, you help the earth and get a good finish. Your metal parts can look great without hurting the environment. You can trust the painting process to meet top safety and quality rules.

Pros and Cons

When you pick spray painting for custom metal parts, you get good and bad sides. Knowing both helps you choose if this is right for your project. Let’s look at each side more closely.

Pros

Even Coverage

Spray painting covers all surfaces smoothly and evenly. You can paint corners, curves, and small shapes easily. The spray gun puts paint on in thin, controlled layers. This stops brush marks and streaks from showing. The finish looks professional and feels smooth. If you clean, sand, and prime first, your metal parts look even better.

Fast Application

Spray painting lets you finish jobs quickly. It covers big areas faster than brushing or rolling. You can paint many parts in a short time. The paint dries fast between coats, so you finish sooner. Spray painting is a good choice if you need results fast.

Versatility

Spray painting works on many metals like steel, aluminum, brass, copper, and titanium. You can use it on simple or complex shapes. The spray reaches deep spots and tight spaces. You can also change how other materials look, not just metals. This makes spray painting popular in many industries.

Cost-Effective for Small Batches

Spray painting saves money for small or custom batches. You do not need big ovens or special equipment. The setup is easy, and you can switch colors or textures fast. This helps you control costs and react to changes. If you want to paint a few parts or try new designs, spray painting saves time and money.

Easy Touch-Up

If a part gets scratched or chipped, you can fix it fast. Spray painting lets you repair small spots easily. You do not have to remove all the paint. Just sand the spot, add primer, and repaint. This keeps your parts looking new and saves time. You can keep your products looking good with little work.

Enhanced Protection

Spray painting adds a layer that protects your metal parts. The paint keeps out water, rust, and wear. Your parts last longer and resist damage from use. Spray painting is not as tough as some coatings, but it still protects well. You can pick paints with extra features like anti-corrosion or UV resistance for more strength.

Note: The table below shows how spray painting’s main advantages compare to other finishing methods:

Advantage Aspect	Spray Painting Benefits	Comparison to Other Methods
Color Options	Wide range of colors and textures, custom mixing	Broader than powder coating and metal spraying
Coat Thickness	Very thin layers maintain tight tolerances	Thinner than powder coating
Cost	Lower setup and production costs, ideal for small/custom projects	More cost-effective for small runs
Application Ease	Suitable for small, intricate parts; selective application possible	Easier than powder coating or metal spraying
Repairability	Quick and easy spot repairs	Harder with powder coating or plating
Flexibility	Can apply to specific areas, not all-or-nothing	More flexible than electroplating

Cons

Surface Prep Needed

You must get the surface ready before painting. Cleaning, sanding, and priming take time and work. If you skip these steps, the paint may not stick or last. Good prep is needed for a strong, smooth finish. This extra work is a main downside of spray painting.

Overspray Risk

Spray painting can cause overspray, which means paint lands where you do not want. Overspray wastes paint, makes cleanup harder, and can cause problems. You need to cover nearby areas and use spray booths. This risk is a con and needs careful planning.

Durability Limits

Spray painted finishes are not as strong as powder coating or some other methods. The paint layer is thinner and can chip or scratch more easily. You might need to repaint every few years, especially if parts face tough weather or heavy use. This lower strength is a big con.

Ventilation Required

You need good airflow when spray painting. Paint fumes and particles can be harmful. A spray booth with fans and filters keeps air safe. You also need to wear safety gear. Setting up good ventilation is a con and makes the process harder.

Environmental Impact

Spray painting lets out volatile organic compounds (VOCs) and other chemicals. These can hurt the environment if not handled right. You must follow rules for air and waste. Using eco-friendly paints helps, but the impact is still a con.

Maintenance Needs

Spray painted parts need more care than powder coated or metal sprayed parts. The finish can chip, fade, or wear down over time. You will need to touch up or repaint more often to keep them looking good. This extra care is another con.

Tip: If you want a finish that lasts longer with less work, powder coating or advanced metal spray coatings might be better. But spray painting is still a good way to save money and get a nice look for small batches.

Comparing Spray Painting, Powder Coating, and Metal Spraying

Feature	Spray Painting	Powder Coating	Metal Spraying
Finish Thickness	Thin (0.025 mm)	Thick (0.0625 mm+)	Thickest
Durability	Moderate	High	Very High
Application Speed	Fast	Moderate	Slow
Cost	Low for small batches	Higher setup cost	High
Touch-Up	Easy	Difficult	Difficult
Environmental Impact	VOCs, needs controls	Less VOCs, less waste	Minimal VOCs, more waste
Maintenance	Frequent	Rare	Rare
Flexibility	High	Moderate	Low
Transformation	Easy and quick	Requires curing oven	Requires special equipment

Spray painting is flexible, fast, and can change how custom metal parts look. You can get a nice finish and long-lasting results if you take care of it. But you should think about the pros and cons. Think about what your project needs, your budget, and how strong you want the finish before you decide.

Tips

Preparation

You need to focus on surface preparation if you want the best results from spray painting. Good preparation helps the paint stick and last longer. Start by cleaning the metal part. Remove all oils, grease, and dust. Use a wire brush or sandpaper to get rid of old paint and rust. This step is important for both new and used parts.

Next, check the surface for any leftover dirt. Wipe it down with a clean rag and a bit of acetone or denatured alcohol. This removes any oils that could stop the paint from sticking. If you see rust, use abrasive blasting or scraping to make the surface smooth and clean.

Apply a rust-inhibitive primer after cleaning. This primer keeps moisture out and stops corrosion. Pick a primer that matches your metal type. For example, use galvanized primers for zinc-coated metals or iron-oxide primers for steel. Careful surface preparation leads to better painting quality and longer-lasting results.

Tip: Never skip surface preparation. It is the most important step for a strong, smooth finish.

Paint Selection

Choosing the right paint makes a big difference in the final quality of your project. Think about the type of metal you have. Ferrous metals need rust-preventive coatings. Non-ferrous metals need paints that stick well.

Pick a paint base that fits your needs. Oil-based paints work well outdoors and last a long time. Water-based paints are easier to clean and safer for indoor use. Decide on the finish you want. You can choose glossy, matte, satin, or even metallic looks.

Check how long the paint takes to dry. Fast-drying paints help you finish projects quickly. Make sure the paint can handle the environment. For outdoor parts, look for UV, moisture, and corrosion resistance. Always check if the color and special effects you want are available. Some projects need a separate primer, while others use paint-and-primer-in-one.

Note: Good paint selection, along with careful preparation, gives you a smooth, even finish and strong protection.

Application Techniques

You can get a professional look by using the right painting techniques. Always start with clean, well-prepared metal. Mask off any areas you do not want to paint. Use painter’s tape and trim the edges for a neat line.

Paint in a space with no wind or dust. A spray booth or a large cardboard box works well for small parts. Hold the spray can or gun about 12 inches from the surface. Move your hand in steady, even strokes. Do not stop moving while spraying. This prevents drips and uneven spots.

Apply several thin coats instead of one thick coat. Let each coat dry before adding the next. Wipe the surface gently between coats with a soft rag or fine sandpaper. This removes dust and helps the next layer stick. Shake the spray can well before and during use for even coverage.

After painting, remove the masking tape slowly. Use a hobby knife if needed to avoid damaging the finish. Give the final coat extra time to dry. This step improves the quality and durability of your work.

Tip: Take your time with each step. Careful application leads to a smooth, high-quality finish.

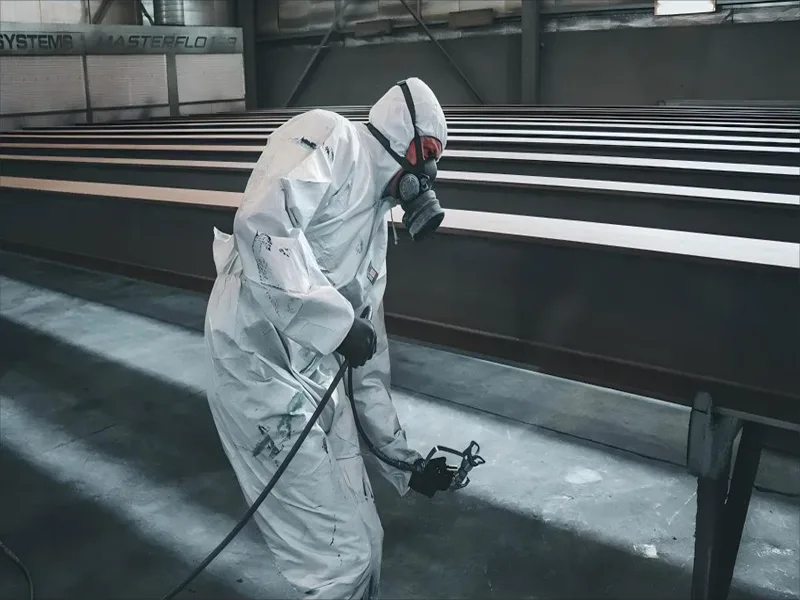

Safety

You need to follow important safety steps when you do painting on metal parts. These steps protect you, your team, and the environment. Here is a simple guide to help you stay safe during painting:

1. Start with a hazard check. Look for risks like harmful chemicals, fire, and muscle strain. Some paints have strong smells and can be dangerous if you breathe them in.
2. Use good ventilation. Spray booths or exhaust fans help remove paint mist and fumes from the air. This keeps the workspace safe and clean.
3. Follow safety rules. Train everyone who does painting. Make sure you use the right equipment and keep paint booths away from fire sources. Ground all tools to stop static shocks. Keep fire extinguishers nearby.
4. Wear the right gear. Use respirators, hard hats, and coveralls. Make sure everything fits well. Check your gear often to see if it still works.
5. Store paint safely. Keep paint in dry, cool places away from anything that could catch fire. Label all containers clearly. This helps prevent spills and accidents.

Tip: If you have a big or complex painting job, you should use a professional service like AFI Industrial Co., Ltd. They have the right tools and training to keep everyone safe.

Maintenance

You want your painted metal parts to last as long as possible. Good maintenance keeps the finish looking new and protects against rust or damage. Here are some easy ways to care for your painted surfaces:

• Fix scratches or chips right away. Use touch-up paint that matches your original painting. This stops rust from spreading.
• Wash your metal parts twice a year. Cleaning removes dirt, salt, and pollution that can harm the paint.
• Make sure water does not collect on your parts. Good drainage stops rust from forming.
• Check your painted surfaces every season. Look for signs of wear or peeling. Add a new coat of paint if needed.
• Use soft, nonabrasive cleaners. Rough cleaners can scratch the painting and make it wear out faster.
• Lubricate any moving parts. This reduces friction and keeps the painting from rubbing off.
• Handle and store your metal parts with care. Avoid dropping or bumping them.
• Cover outdoor metal parts with weather-resistant covers. You can also add extra coatings for more protection.

Note: Regular care and quick repairs help your painting last longer. If you notice big problems or need a perfect finish, consider calling a professional painting service.

Choosing Spray Painting

Project Fit

You need to check if spray painting is right for your project. Think about the size and shape of your metal parts. Spray painting works well for small batches and custom shapes. It is good for parts with curves or corners. If you want many colors or special textures, spray painting gives you lots of choices. You can use it for quick jobs or if you change your parts’ look often.

How long the finish lasts is important. Spray painting looks nice but may not last as long as other coatings. If your parts are outside or used a lot, you might need to repaint more. Spray painting is smart if you want fast results and easy fixes. You can get a finish that lasts if you follow the right steps and take care of your parts.

Alternatives

There are other ways to finish your custom metal parts. Each one has different costs, strength, and how well it works.

• Chromate conversion coating (Alodine) helps stop rust and makes paint stick better. It does not cost much but does not last very long. It is good for parts that need to carry electricity but can scratch easily.
• Electroplating puts a metal layer, like chrome or nickel, on your parts. This helps stop rust and wear. It costs more and takes longer to do. It can also make waste that is bad for the earth.
• Passivation uses chemicals to help stainless steel fight rust. It does not make the part thicker. It works best for stainless steel but takes extra time.
• Powder coating gives a thick, strong finish. It can last 20 years or more. It protects well from rust and sun damage. It costs more at first, but you save money because you do not repaint often.
• Metal spraying and metal spray coatings spray melted metal onto the part. This makes a tough layer that lasts a long time. It is good for heavy-duty parts but needs special tools.

Here is a table to help you compare some common finishing methods:

Finishing Method	Cost	Durability	Environmental Impact	Performance
Spray Painting	Lower starting cost; cheap supplies for small jobs; higher costs later because you repaint more	Lasts 2-4 years outside; needs touch-ups often; less protection from rust and sun	Has VOCs and solvents; overspray can hurt the earth and health	Many color and texture choices; thin coating; not as even or strong
Powder Coating	Costs more at first; saves money for big jobs; usually lasts for decades	Lasts up to 20 years or more; thick, strong coating; great protection from rust and sun	No VOCs or solvents; better for the earth; safer with trained workers	Thick, even coating; great at stopping chips, fading, and scratches; fewer colors but bright and long-lasting

Tip: Spray painting is good if you want to save money and change colors easily. If you want your parts to last longer, powder coating or metal spraying may be better.

Budget

You should think about your budget before picking a finishing method. Spray painting costs less at the start. You can buy what you need for small jobs without spending a lot. This is good if you want to save money right away. You also get lots of color and texture choices.

But you need to plan for future costs too. Spray painting may need more fixes and repainting later. This can make the total cost go up. If you want your parts to last longer and need less work, powder coating or metal spray coatings cost more at first but save money over time. These ways last longer and are stronger.

When you compare, look at both the starting price and the cost to keep your parts looking good. For custom jobs or small batches, spray painting gives you a good mix of price and quality. For big projects or parts that need to last many years, powder coating or metal spraying can give you better value.

Longevity

When you pick a finish for your custom metal parts, you want it to last. How long spray painted finishes last depends on many things. You need to think about where the part will be used. The type of metal matters too. Cleaning and sanding the metal before painting is very important. This helps the paint stick better. If the paint sticks well, the finish lasts longer.

Spray painted finishes need more than one coat. Each coat must dry all the way. If you do not wait, the paint may not stick well. Over time, sun, rain, and hot or cold weather can hurt the paint. The paint might peel or fade. You may have to repaint or fix the parts more often than with other finishes.

Here is a simple comparison of finishes:

• Spray painted finishes need clean surfaces for the paint to stick. Even if you do everything right, they do not last as long as some other coatings.
• Powder coating makes a thick, tough layer. It stops rust and scratches. It can last over 20 years with little care.
• Metallizing, also called thermal spraying, uses zinc or aluminum. This gives even more protection. It helps your metal parts last longer by stopping scratches and rust.
• Spray painted finishes need more care. You might see peeling or chipping sooner, especially if the paint did not stick well at first.

Tip: Clean and prime your metal parts before painting. This helps the paint stick and makes the finish last longer.

Spray painted finishes work best for indoor parts. They are not as good for outdoor parts or parts in rough places. If you want a finish that lasts many years and needs less work, powder coating or metallizing is a better choice. But if you clean and prepare the metal well, spray painting can still work well.

Here is a table to compare:

Finish Type	Typical Lifespan	Maintenance Needs	Key Factor for Longevity
Spray Painting	2-4 years	Frequent touch-ups	Surface prep and adhesion
Powder Coating	20+ years	Minimal	Thick coat and strong adhesion
Metallizing	20+ years	Minimal	Galvanic protection, adhesion

Pick the finish that fits how long you want your parts to last. Think about how much time you want to spend on care. Always check if the paint is sticking well and look at your parts often to keep them looking nice.

Custom metal parts spray painting gives you flexible color choices, fast results, and easy touch-ups. You may need to do more prep work and plan for regular maintenance. To choose the best finish, think about your project’s size, budget, and how long you want it to last.

• For expert results, consider AFI Industrial Co., Ltd.Take time to weigh both short-term and long-term needs before you decide.
