How to Laser Engraving Aluminum for Beginners Step by Step

You can begin laser engraving aluminum by choosing the right kind. Many beginners pick one of these choices:

1. Bare aluminum is good for direct engraving. It gives clear results.
2. Anodized aluminum has a special layer. This layer helps make marks that stand out.
3. Powder-coated aluminum lets you make detailed designs. You do this by taking off the top layer.
   You must get the surface ready, set up your laser, and wear safety gear. Laser engraving aluminum is safe and fun if you follow the right steps.

Key Takeaways

• Pick the right aluminum for engraving. You can use bare, anodized, or powder-coated. Each kind has its own good points, for how clear and strong the marks are.
• Clean the aluminum before you start engraving. Cleaning helps make the marks sharp and easy to see.
• Use the correct laser for aluminum. Fiber lasers work best for bare aluminum. CO2 lasers are good for anodized aluminum.
• Put on safety gear like glasses and clothes that protect you. This keeps you safe when you use the laser engraver.
• Try your settings on scrap aluminum first. Testing helps you find the best power and speed for your design.
• Place your workpiece carefully so your design is straight. Use clamps or jigs to hold it still while you engrave.
• Check your finished engraving to see if it looks good. Make sure the lines are clear and the design matches your plan.
• Store engraved aluminum the right way so it does not get scratched or faded. Keep it away from sunlight and wet places.

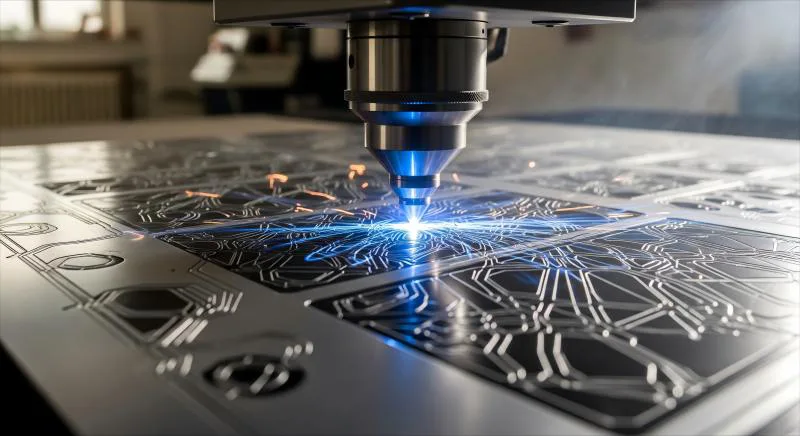

What is Laser Engraving?

Definition

Laser engraving uses a strong laser beam to make marks on metal. You can control the laser to hit the metal exactly where you want. The laser melts a thin layer off the metal. This leaves a mark that stays and does not rub away. Laser engraving works better than older ways because it gives you more control. The marks are cleaner and sharper.

• The laser beam hits the metal with great accuracy.
• The laser melts away some material to make a mark.
• The finished surface matches laser-engraved standards.

When laser engraving, the laser can melt, vaporize, or remove material. Ablation means the laser takes away material using short bursts of energy.

Laser engraving aluminum makes marks that last a long time. The marks look sharp and clear. People like this method because it is fast. You do not need extra chemicals or special tools.

Application of Laser Engraving on Aluminum

Laser engraving aluminum is used in many jobs and hobbies. You see it on car parts, airplane pieces, and solar panels. Here are some common uses:

Industry	Application Description
Automotive	Used for part ID, tracking, branding, and labels in cars.
Aerospace	Engraving on alloy parts for strong marks that last in tough places.
Solar Photovoltaics	Used for marking and labeling aluminum frames and mounts for solar panels.

High Precision

Laser engraving lets you make very tiny details. The laser is small and strong. You can make little words, logos, or patterns. Other methods cannot match this level of detail.

Permanent

Laser engraving makes marks that do not wear off. The process changes the aluminum’s surface. The marks stay readable for a long time. This is good for serial numbers, safety labels, or anything that needs to last.

Aesthetics

Laser engraving aluminum looks nice and neat. You can make straight lines, sharp corners, and cool designs. Many people use it for gifts, awards, or decorations. The results look professional and pretty.

Laser marking is another word you might hear. It means making marks with a laser, but it does not always take away material. Both laser marking and engraving help you put designs or info on aluminum in a clear and lasting way.

Laser Engraving Aluminum: Tools

Types of Lasers

You need to pick the right laser for aluminum. There are three main types: fiber, CO2, and diode lasers. Each one has good and bad points.

Laser Type	Advantages	Limitations
CO2 Lasers	Good for pre-treated aluminum; works on many materials; not expensive.	Needs a special layer for bare aluminum; not great on plain metal.
Fiber Lasers	Works fast; makes sharp marks on tough metals; easy to care for; lasts long.	Costs more than CO2 lasers.
Diode Lasers	N/A	Not strong enough; it does not work well on aluminum.

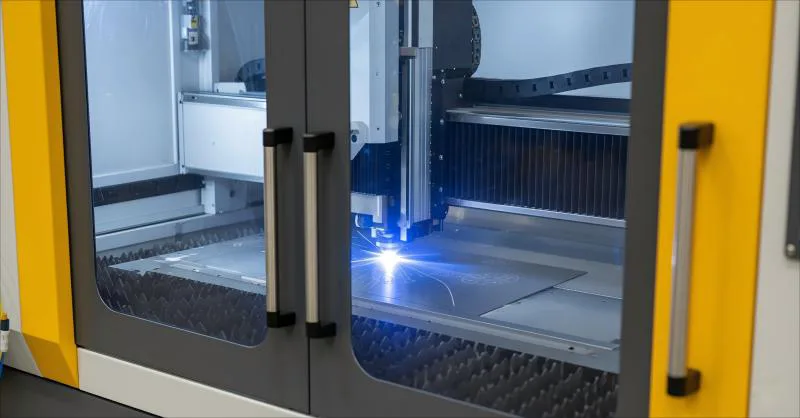

Fiber lasers are best for aluminum. They make clear marks and work quickly. CO2 lasers are good for anodized or coated aluminum. Diode lasers are too weak for most aluminum jobs.

Tip: Use a fiber laser engraving for bare aluminum. It makes deep, clear marks. For anodized aluminum, a CO2 laser can work if you set it up right.

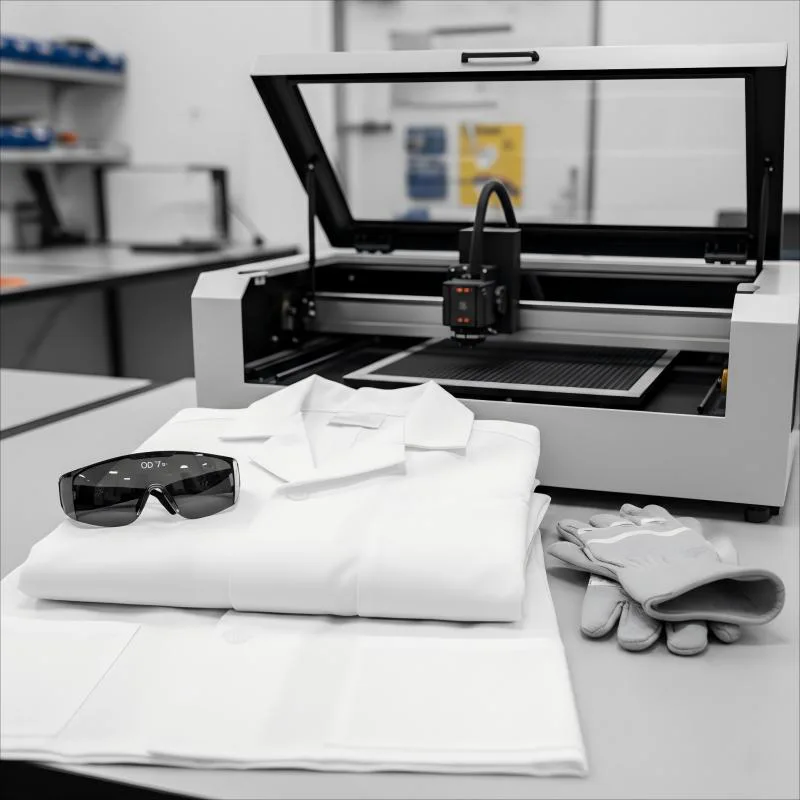

Safety Gear

You must stay safe when using a laser. Safety gear protects you from light, fumes, and heat. Here is what you should use:

• Safety glasses keep your eyes safe from laser light.
• Protective clothes, like lab coats and face shields, protect your skin from burns and fumes.
• Gloves keep your hands safe from heat and chemicals.

Fume extractors help clean the air. Enclosures keep smoke and dust inside. If you work for a long time, wear a respirator so you do not breathe in bad stuff.

Always check your safety gear before you start, especially safety goggles and gloves. Safe habits help you avoid accidents when laser marking and engraving.

Software and File Formats

Laser Engraving Software

You need software to run your laser and make designs. Some programs let you draw, change, and send files to your machine. Here are some popular ones:

Software/Format	Description
LightBurn	Made for laser engraving and cutting.
CorelDRAW	Lets you make designs and works with many lasers.
Adobe Illustrator	Good for making detailed and fancy designs.
Inkscape	Free and easy to use, great for beginners.

Common File Formats

Laser engravers use different file types. You need to know which ones your machine and software can use.

Format	Description
SVG	Vector graphics that stay clear when resized.
DXF	Used in CAD programs, works with many engravers.
AI	Adobe Illustrator’s file type keeps all design details.
PDF	It can hold both vector and picture files, easy to share.

Start with SVG or DXF files for easy projects. For more details, use AI or PDF files.

Materials

Anodized Aluminum

Anodized aluminum is a great pick for laser engraving. It has a special oxide layer on top. This layer gives you many good things:

• You can make marks that are easy to see and last a long time. The oxide layer helps the laser make sharp designs.
• It is easier to engrave than bare aluminum. You do not need as much laser power.
• The marks look bright and are simple to read.
• The oxide layer keeps the metal safe from rust and scratches. Your designs stay nice, even if the metal gets used a lot.
• You can use anodized aluminum for signs, labels, and tags. Many people like it because it works well and does not cost too much.
• The surface lets you add your design without hurting the metal. The metal stays strong.

Tip: If you want your design to look good and last, use anodized aluminum. It is the best choice for beginners and experts.

Bare Aluminum

Bare aluminum does not have the oxide layer. This makes it harder to engrave with a laser. The marks might not show up well, and you may need more power. But you can still get good results if you use a marking spray like CerMark.

Here is how CerMark spray helps you:

Benefit	Details
Chemical Reaction	CerMark has a special formula. The laser makes it react with the metal. This forms a strong layer on top.
Marking Depth and Hardness	The marks go deep into the metal, between 5-20μm. The marks are very hard (≥6H).
Improvement in Marking Quality	CerMark helps the metal take in the laser better. Your marks look clearer and last longer.

You spray CerMark on the bare aluminum before you engrave. The laser bonds the spray to the metal. This makes a dark, strong mark. This way works well for tools, machine parts, and other things that need tough labels.

Note: Always clean the metal before you spray CerMark. This step helps you get the best results when you engrave aluminum.

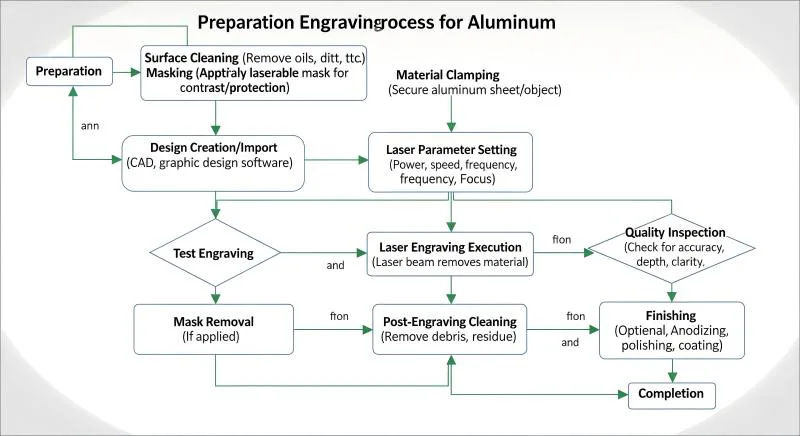

How to Engrave Aluminum: Preparation

Surface Cleaning

You must clean the aluminum before you start. Dirt, oil, and dust can mess up your work. Cleaning helps the laser make sharp marks. Here are the steps to get ready:

1. Use a soft cloth to wipe away dust and dirt.
2. Clean off oil and grease with rubbing alcohol or cleaner.
3. Wait for the surface to dry all the way.

Cleaning is the most important step when you engrave aluminum. A clean surface helps you get great results every time.

Masking

Masking keeps some parts of the aluminum safe from the laser. It also stops smoke stains and scratches. There are different masking materials. Each one has good and bad points.

Masking Material	Description	Pros	Cons
Tapes	Sticky tapes for anodizing	Easy to use and cut to size	Can come off during use, may leak
Lacquers	Hard coatings that dry on the metal	Good for careful jobs	Needs special remover, not always strong
Waxes	Melted wax covers the metal	Simple to take off, fills gaps	May not handle chemicals, can get dirty
Plugging and Capping	Rubber or silicone plugs for holes	Cheap and can be used again	Not good for flat areas

Some people use Laser Protect 5900. This liquid makes a film that protects the metal from smoke and heat. You can peel it off after you finish. It does not leave anything sticky behind.

Tip: Try your masking on a small spot first. This helps you see if it works well before you engrave the whole piece.

Using CerMark

CerMark helps you make dark, strong marks on bare aluminum. You do not need CerMark for anodized aluminum. It works best on plain metal. Here is how to use CerMark:

• Shake the CerMark spray can before you use it.
• Spray a thin layer on the clean aluminum.
• Let the coating dry all the way.
• Set your fiber laser to high power, about 50W. Use a speed between 150 and 250 mm/sec with a .04 gap.
• Start engraving. The laser sticks the CerMark to the metal.
• Wash off any extra CerMark with water after you finish.

CerMark does not work on anodized aluminum. Only use it on bare metal for the best results.

CerMark helps you make deep, hard marks that last a long time. Many people use this for tools, machine parts, and labels that must stay easy to read.

Positioning

You need to position your aluminum workpiece before you start engraving. Good positioning helps you get sharp and accurate results. If you place the metal wrong, your design may look crooked or off-center. You can use several techniques to make sure your workpiece stays in the right spot.

Here are some popular methods for positioning and securing aluminum:

Technique	Description
Camera Alignment	You can use a Comgrow Lightburn camera. This tool lets you adjust the image for engraving. You do not need to center the material by hand.
Origin Jig	Place a plywood jig in the top left corner of your laser bed. This sets a precise starting point (0,0 origin) for your workpiece.
Laser Pointer	Attach a laser pointer to your machine. The pointer outlines the engraving area. You can see where your design will go before you start.
MDF Angle	Cut an angle from the MDF board. Use it as a static reference. This keeps your workpiece aligned and makes sure the machine bed does not move.

You can choose the method that fits your setup. If you use a camera, you see the exact spot for your design. A jig helps you place each piece in the same position every time. A laser pointer gives you a quick preview. An MDF angle works well if you want a simple and steady guide.

Tip: Always check that your aluminum is flat and secure before you engrave. If the metal moves, your design may not look right.

You can use clamps or magnets to hold the aluminum in place. Make sure nothing blocks the laser path. If you want to learn how to engrave aluminum with clean lines, start by mastering positioning. A good setup leads to better results and less waste.

Laser Engraving: Setup

Software

You need to set up your engraving software before you start. This step helps you control your laser and send your design to the machine. Most beginners use programs like LightBurn, CorelDRAW, or Inkscape. These programs let you create shapes, text, and logos. You can also download ready-made designs from trusted file sites.

Here is a simple way to set up your software:

1. Open your design program and create a new file.
2. Draw your design or import a file, such as SVG or DXF.
3. Set the size of your work area to match your aluminum piece.
4. Choose the right settings for your laser, like power and speed.
5. Save your file in a format your laser can read.

Tip: Always double-check your design size and placement before you send it to the laser. This step helps you avoid mistakes.

Power and Speed

You must adjust the power and speed settings to get the best results. These settings control how deep and clear your engraving will look. The right settings depend on your laser type, the thickness of the aluminum, and your design.

Parameter	Effect on Engraving Quality
Power	Too much can burn material; too little slows speed.
Speed	Too fast causes rough edges; too slow is inefficient.

• Higher speeds work well for shallow engravings and simple patterns.
• Lower speeds help you make deep engravings or detailed designs.

Most fiber lasers for aluminum use 20 to 50 watts for fine details. If you want deeper marks, you can use up to 100 watts. Try starting with 20-40% power and a speed of 1500mm/s or higher. You may need to adjust these numbers based on your results.

Note: Always test your settings on a scrap piece of aluminum first. This step helps you find the best power and speed for your project.

Focusing

You must focus your laser to get sharp and clean lines. A well-focused laser beam makes your design look crisp. If the focus is off, your marks may look blurry or uneven.

• Clean the aluminum surface before you start. Dust or grease can block the laser and lower the quality.
• Use the focus tool that comes with your laser. Place it between the lens and the metal to set the right distance.
• Fiber lasers use a 1064nm wavelength. This type works well for aluminum because the metal absorbs the light and makes precise marks.
• Adjust the height of your laser head until the beam is tight and clear.

Tip: Always check the focus before each job. Even a small change can affect your results.

Testing on scrap aluminum helps you see if your focus, power, and speed are correct. You can make changes before you engrave your final piece. This practice saves time and materials.

Laser Engrave Aluminum: Process

Load Design

First, open your design in the laser engraving software. This step helps you get ready for your project. Pick a program that lets you make small changes and works with many file types. Most people use vector files like SVG, AI, or DXF. These files let you make your design bigger or smaller without losing any detail. You can also use raster files like JPG or PNG, but these might get blurry if you change their size.

Here are some tips for loading and getting your design ready:

Best Practice	Description
Selecting Design Software	Choose software that lets you adjust details and use many file types.
Use Vector Formats	Vector files keep your design clear at any size.
Simplify Your Design	Do not use tiny or hard details that may not show up well on aluminum.
Check the Resolution	Make your design as high quality as possible to avoid blurry marks.
Convert Text to Outlines	Change all words to outlines so the laser can read them.
Avoid Intersections	Make sure lines do not cross each other, or the laser may get confused.
Scale Correctly	Make your design the same size as your aluminum piece.

Tip: Always check your design’s size and where it will go before you move on. This helps you avoid mistakes when you start laser marking.

Test Run

Before you engrave your real piece, do a test on a scrap piece of aluminum. This step lets you check your settings and make sure everything lines up. You want to see if your design looks good and if your machine is working right.

Follow these steps for a good test run:

1. Open the Material Test Generator in your software.
2. Click the Start button to engrave a test grid on the scrap aluminum.
3. Look at the test grid and find the box that looks best.
4. Change your power and speed if you need to.
5. Move the laser to test cutting if your design needs cuts.
6. Run the cut test and check if the edges are clean and not burned.
7. If the cut does not go through, use more power or do more passes.

Doing a test first saves you time and materials. You can fix problems before they mess up your real project.

Engrave

Now you can engrave your aluminum piece. Hold the aluminum sheet flat and keep it from moving. Check the focus and make sure everything lines up. Start engraving with the settings you tested before.

Here are the main steps for laser engraving aluminum:

1. Put your aluminum sheet flat and hold it down with clamps or magnets.
2. Make sure your laser settings match the aluminum’s thickness and type.
3. Start engraving and watch the machine as it works.
4. Pause the job if you see smoke or marks that do not look right.
5. When the engraving is done, let the aluminum cool before you touch it.

Stay close to the machine while it works. This helps you spot problems fast and keeps your workspace safe.

Laser engrave aluminum projects often need more power so the laser can go through the metal. The steps for laser engraving aluminum include careful setup, testing, and watching the process. You can make sharp, lasting designs that look great. Laser marking on aluminum makes designs that stay clear and do not wear off.

Inspect

After you finish engraving, you need to check your work. Careful inspection helps you spot mistakes and improve your next project. When you laser engrave aluminum, you want your design to look sharp and last a long time.

Start by looking at the engraved area under good light. Check if the lines are clear and the design matches your plan. If you see blurry edges or missing spots, your settings may need adjustment. Use your fingers to feel the surface. A good engraving feels smooth, with no rough spots or sharp edges.

Here is a checklist to help you inspect your finished piece:

• Make sure the design fits well on the aluminum. The lines should be even and the font easy to read.
• Look for any missed spots or faded areas. The engraving should be deep enough to see but not too deep to weaken the metal.
• Check that the edges of the design are clean. There should be no extra marks or burns around the engraving.
• Test the strength of the mark. Try rubbing it gently with a cloth. The design should not rub off or fade.
• Clean off any dust or debris from the surface and the work area. This keeps your equipment in good shape and your next project clean.

Tip: You can apply a clear sealant to your finished engraving. This step helps prevent oxidation and makes the design stand out more.

If you find any problems, write them down. You can use this information to adjust your settings or design for next time. Careful inspection helps you get better results every time you laser engrave aluminum.

Safety and Best Practices

Laser engraving aluminum is safe if you follow the right steps. You need to pay attention to safety rules. Take care of your machine and finished pieces. Here are some tips for beginners who want to engrave aluminum.

Operation

You must follow safety rules when using a laser engraver. These steps help stop accidents and keep your workspace safe:

1. Get training before you use the machine. Learn how it works and what dangers there are.
2. Do not turn off safety locks. These locks protect you while the machine is on.
3. Always do what the manufacturer says for your laser engraver.
4. Keep a fire extinguisher close by. Laser engraving can make sparks or heat.
5. Clean your machine often. Dust and dirt can catch fire if left inside.
6. Check your materials before you engrave. Some metals or coatings can make bad fumes.
7. Never leave the machine alone while it is running. Stay nearby so you can stop it if needed.
8. Do not use the laser on wood. Wood can burn easily.
9. Learn how the laser’s pulse rate changes fire risk. Change settings to stay safe.

Safety is most important! Wear your safety glasses and keep your area clean.

Maintenance

Taking care of your laser engraver helps it last longer. You should have a regular cleaning plan:

1. Clean the lens and mirrors often. Dirt or smudges can make the laser weak and ruin your work.
2. Look at the laser tube for leaks. Make sure the cooling system works well.
3. Oil moving parts to stop them from wearing out.
4. Check for broken or worn parts. Replace them if needed to keep your engraver working.
5. Keep the area around your machine clean. Dust can hurt your engraver and your projects.
6. Watch power levels. Steady power helps you make good engravings.

A clean and cared-for machine gives you better results and fewer problems.

Handling

Newly engraved aluminum pieces need gentle handling. You want to stop scratches, fingerprints, or getting hurt. Here are some tips:

• Wear gloves to keep your hands and the metal safe.
• Make sure your hands are clean and dry before touching aluminum.
• Take off jewelry or watches that could scratch the metal.
• Hold the piece from underneath, especially if it is big or heavy.
• Put finished pieces on a flat surface, not passing them hand-to-hand.
• Use a padded cart if you need to move many items at once.

Handle your finished pieces with care so they look nice and professional.

If you follow these safety and best practice steps, you can enjoy laser engraving aluminum. Good habits keep you, your machine, and your work safe.

Troubleshooting Laser Engraving Aluminum

Laser engraving aluminum can sometimes give you results that do not look right. You might see faded marks, rough edges, or even machine errors. Knowing how to fix these problems helps you get better results every time. Here are some common issues and how you can solve them.

Quality Issues

You may notice that your engraving looks blurry, uneven, or not as sharp as you want. These problems often come from settings or dirty equipment. Use the table below to find the cause and solution for each issue:

Quality Issue	Possible Causes and Solutions
Incorrect power settings	Adjust the power for your material. Use lower power for deeper engravings, higher for lighter marks.
Incorrect engraving speed	Change speed to get even depth. Too fast or too slow can cause problems.
Dirty mirrors and lenses	Clean mirrors and lenses often. Dust can block the laser and lower the quality.
Poor or uneven edges	Increase resolution and DPI. Focus the laser well. Secure the aluminum so it does not move.
Charred edges or burn marks	Lower the power or increase the speed. Make sure you use the right material. Refocus the laser if needed.
Inconsistent images	Adjust resolution. Check for scan gaps. Test different power and speed settings.
Incorrect engraving position	Realign the home position. Set the origin point before you start.

Tip: Always test your settings on a scrap piece before you engrave your final project.

Incomplete Marks

Sometimes, your engraving does not show up well, or parts of the design are missing. This can happen for several reasons. Here are the most common causes and what you can do:

• High thermal conductivity: Aluminum spreads heat fast. Use the right laser power and cooling to help the mark stay.
• Oxide layer on the surface: The oxide layer can block the laser. Pre-treat the surface or use a laser made for anodized aluminum.
• High reflectivity: Aluminum reflects light. Use a fiber laser with a wavelength that aluminum absorbs better.
• Inaccurate beam alignment: If the laser is not lined up, marks can be missing. Calibrate the beam before you start.
• Low laser power: If the power is too low, the mark will not show. Slowly increase the power until you see the result you want.
• Dirty optics: Dust on the lens or mirrors can block the beam. Clean them often.

You can also follow these steps to fix incomplete marks:

1. Check the beam alignment.
2. Adjust the scanning speed for your material.
3. Increase the laser power little by little.
4. Clean the optics before each job.

Note: Incomplete marks often mean you need to clean your machine or change your settings.

Machine Errors

Machine errors can stop your project or make the engraving look bad. You might see rough cuts, unclear patterns, or burnt spots. The table below shows common errors and how to prevent them:

Common Error	Description	Prevention Method
Rough/Uneven Cuts	Cuts look choppy or rough.	Learn the right speed for your material and machine.
Unclear Patterns	Designs are not sharp or precise.	Make sure the laser is focused. Upgrade to a fiber laser if needed.
Burnt Aluminum	Designs look burnt or have char marks.	Double-check your laser settings. Adjust the power for the depth and thickness of the material.

If you see errors, stop the machine and check your settings. Fixing small problems early helps you avoid bigger issues.

Laser marking on aluminum can give you great results when you know how to solve these common problems. Keep your machine clean, test your settings, and check your work often.

Finishing Up

Cleaning

When you finish engraving, you need to clean the engraved aluminum. Cleaning takes away dust, leftover tape, and other stuff. This step helps your design look neat and nice. There are different ways to clean aluminum. Each way works best for certain messes.

Cleaning Method	Description	Effectiveness Against
Plasma Cleaning	Uses special gas to clean without using liquids.	Works well on natural messes.
Solvent-based Cleaning	Uses special liquids to wash off sticky or oily stuff.	Good for sticky and oily messes.
Ultrasonic Cleaning	Uses sound waves in water to shake off dirt.	Good for tiny bits stuck in lines.

You can use a soft cloth and soap for easy cleaning. For hard stains or oil, use a special cleaner. If dirt is stuck in the lines, try ultrasonic cleaning. Plasma cleaning is good if you do not want to use chemicals.

Tip: Always dry the aluminum all the way after cleaning. This stops water spots and keeps your design looking bright.

Polishing

Polishing makes your engraved aluminum shiny and easy to see. You can use different ways to make your piece look better. Here are some ways to polish and finish your work:

1. Color Filling: Put paint or filler in the engraved parts. This makes the design stand out and keeps it safe.
2. Oxidizing or Patina Solutions: Use special liquids to change the color of the engraved parts. This makes details easier to see.
3. Polishing the Surface: Rub the flat parts until they shine. The shiny parts make the engraved parts look different.
4. Using a Darkening Solution: Use a liquid to make the engraved lines darker. This helps you see the design better.
5. Depth of Engraving: Make the engraving deeper to create shadows. Shadows help the design show up more.
6. Directional Lighting: Move the light so it shines on the engraved parts. This makes small details stand out.
7. Contrast with Surface Finish: Change how the rest of the metal looks. A different finish helps the design pop.

You can use a soft cloth or a buffing wheel to make it smooth. If you want more contrast, try color filling or a darkening liquid. These steps help your project look great and last longer.

Note: Always test polish on a small spot first. This helps you make sure it will not hurt your design.

Storage

Storing your engraved aluminum the right way keeps it looking new. Good storage stops scratches, fading, and rust. Here are some tips for storing your finished work:

• Keep engraved pieces away from sunlight. Sunlight can make them fade or change color.
• Do not store them in damp places. Wet air can make metal rust and wood bases bend.
• Use cases or boxes to protect special or fragile pieces.
• Wrap each piece in soft cloth or tissue. Put them in a padded box if you want to store them for a long time.
• Store items in a room where the temperature and air stay the same. This stops damage from heat or wetness.
• Do not keep your pieces in basements, attics, or garages. These places can get too hot, cold, or wet.

Handle your finished pieces gently. Good storage keeps your engraved aluminum looking nice for many years.

As a beginner in laser engraving, you have now mastered the tips for laser engraving aluminum. You should pick the right aluminum before you start. Clean the surface so it is ready for engraving. Set up your machine carefully. If you practice, your results will get better. Laser marking makes designs that look sharp and last long. You can find more help in online guides or videos. Keep practicing, and your skills will get better.

FAQ
