The Process and Benefits of Custom Gear Hobbing

Custom gear hobbing makes gears very accurately for special jobs. Many industries need gears with exact sizes and shapes. Gear hobbing is important because it gives strong and dependable parts. AFI Industrial Co., Ltd. is known for its advanced gear hobbing solutions. They make sure their work meets high-quality rules. Their focus on accuracy and custom work helps companies get better results from their machines.

Key Takeaways

• Gear hobbing uses a spinning tool called a hob. This tool cuts gear teeth fast and very accurately. - Modern CNC machines help make gears with exact sizes. These machines give the same quality every time for many industries. - Custom gear hobbing lets you make many gear types and sizes. You can make them quickly, even if you only need a few. - Surface treatments like nitriding and induction hardening help gears get stronger. These treatments also help gears last longer. - Picking a skilled provider with good quality checks is important. This makes sure you get strong gears on time.

What Is Gear Hobbing

Definition

Gear hobbing is a special way to make gear teeth. It uses a tool called a hob. The job is shaped like a cylinder. The hob and the gear blank spin together. As they turn, the hob slowly cuts teeth into the blank. This keeps going until the teeth are the right shape and size. Different hobs can make different kinds of gears, like spur or helical gears.

The table below shows the main parts of gear hobbing:

Key Features

Gear hobbing is different from other ways to make gears. It has some special features and benefits.

• Gear hobbing uses a spinning hob that cuts many teeth at once. Both the hob and the gear blank spin together.
• This method is fast and works well for making lots of gears.
• Gear hobbing can make many sizes and shapes of gears.
• New machines use CNC, which helps make gears very exact and the same every time.
• The process makes gears that are always of good quality, so it is used in cars, planes, and machines.

Gear hobbing is a top pick for companies that need strong and exact gears. It can make hard shapes and lots of gears, so it is very important in factories.

Gear Hobbing Process

CNC Technology

Modern gear hobbing uses special machines for very exact gears. AFI Industrial Co., Ltd. uses CNC gear hobbing machines and gear grinding machines. These machines can make one gear or many gears go fast. The process starts by getting the gear blank ready. Engineers pick the right hob tool for the gear's design. They clamp the gear blank on the machine to keep it still.

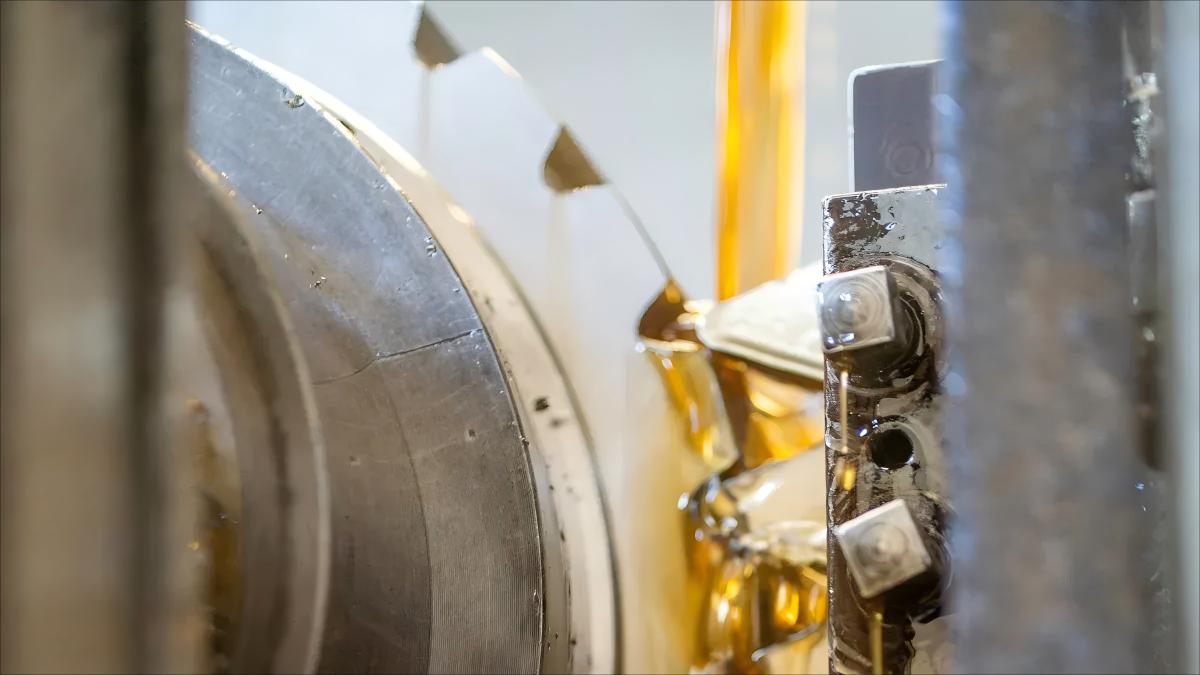

The gear hobbing machine cuts the gear teeth. The hob and the gear blank spin together. The machine cuts each tooth one at a time. It keeps going until the gear is the right shape and size. AFI's CNC gear hobbing machines can reach DIN grade 4 accuracy. This means the gears are very smooth and have tight tolerances. Gears made this way work better and last longer.

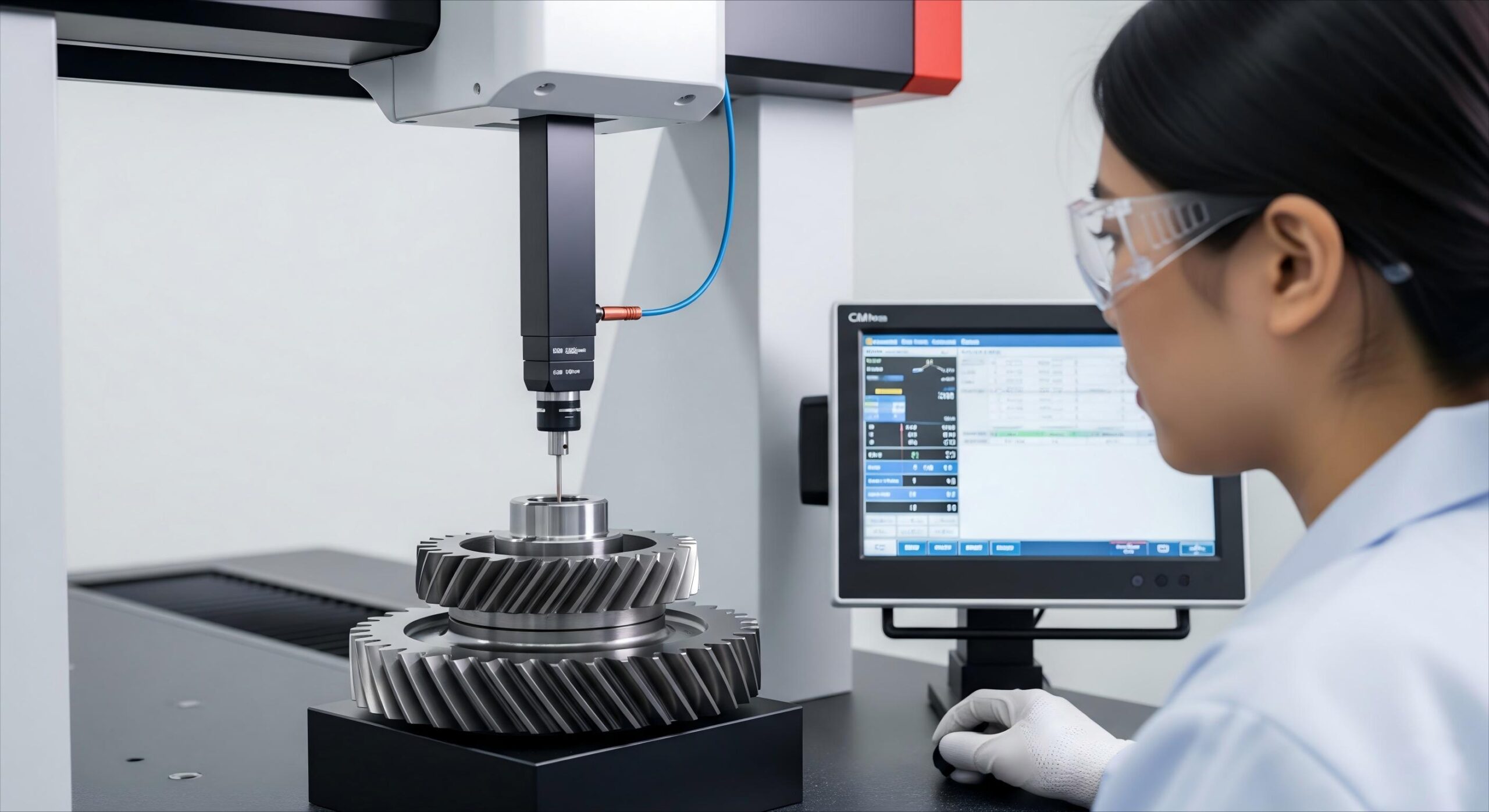

AFI checks every gear with three-coordinate measuring instruments. These tools measure the gear's size and shape very closely. Engineers can control tolerances within ±0.01mm. This makes sure each gear meets strict rules.

The gear hobbing process at AFI has many steps:

1. Treat the gear blank like heating and trimming the tooth root.

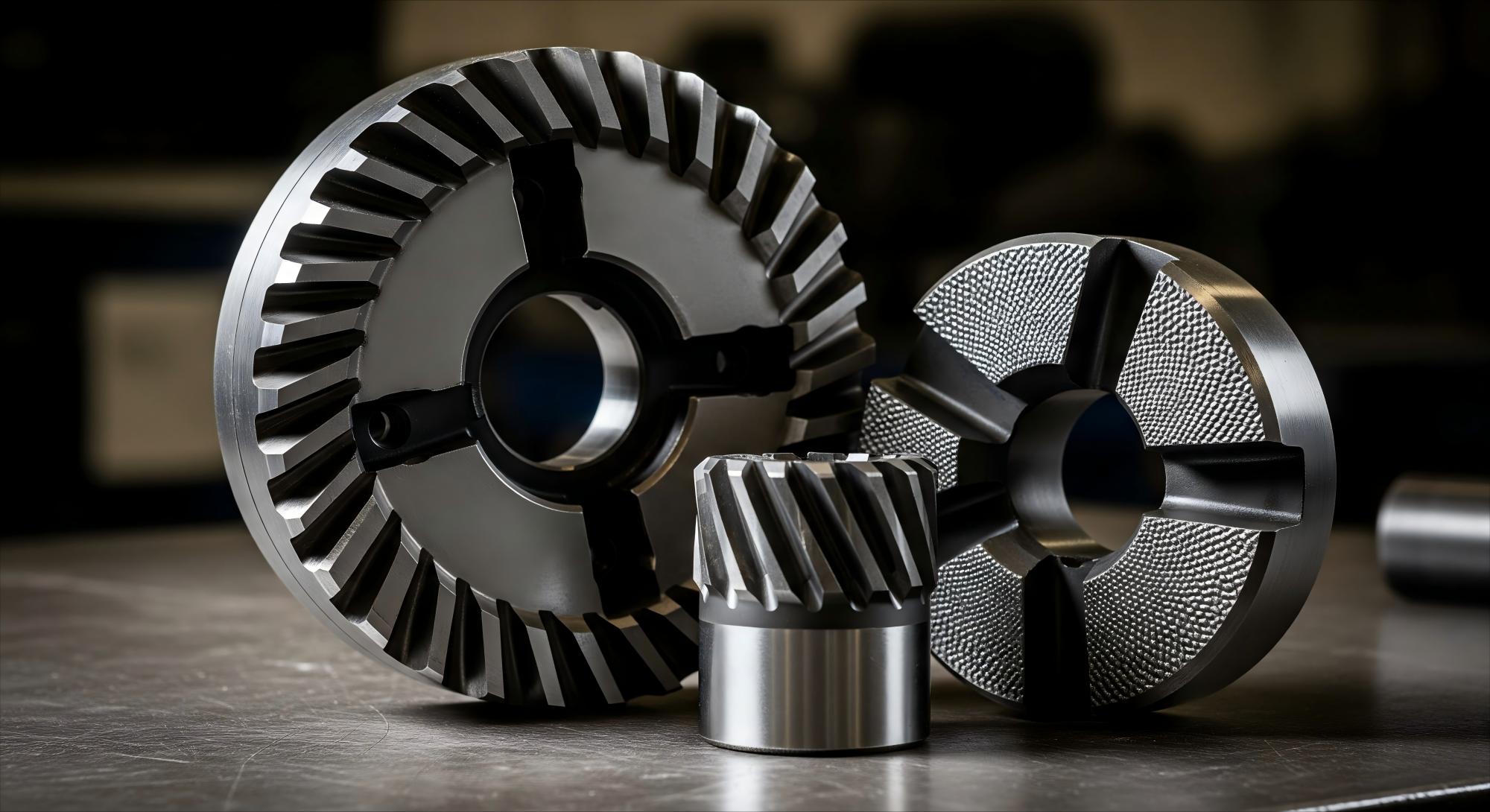

2. Pick the right hob tool for the gear.
3. Clap the gear blank on the gear hobbing machine.
4. Cut the teeth to the right depth.
5. Treat the surface to make the gear stronger and smoother.
6. Check the finished gears to make sure it is good.

This process lets AFI make gears fast, even for big or small orders.

Quality Control

Quality control is very important at AFI Industrial Co., Ltd. The company follows strict rules to get DIN grade 4 accuracy. Engineers use special tools to check each gear's profile, lead, runout, and tooth spacing. They also check tooth thickness and how smooth the surface is.

AFI's quality team uses many ways to check gears:

• Analytical inspection checks details like profile error, lead error, and pitch error.
• Functional inspection tests how the gear works and looks for problems.
• Tooth thickness is checked with tools like Vernier calipers and micrometers.
• Process control checks gear size and tooth thickness during production.
• Advanced gear testers, like CNC gear testers and roll testers, give very exact checks.
• Surface finish and crack checks use safe tests, like magnetic particle and dye penetrant inspections.

AFI follows ISO and DIN rules for gear accuracy. The company checks every gear's surface finish to stop problems like micropitting. These steps help make sure every gear is strong and ready for hard jobs.

AFI's focus on quality control means customers get gears that work well and last long. The company sends products fast, often in 3 to 15 days, and keeps the quality high.

Customization

Design Support

AFI Industrial Co., Ltd. has strong custom machining capabilities. The same applies to custom gears. They can do special orders, test new ideas, and make small or large batches. Many customers want gears that are quick to set up and run well. Some need gear hobbing for many types and sizes of parts. AFI’s engineers look at drawings and give tips about gear pitch, pressure angle, face width, and number of teeth. This helps make sure each gear is strong, fits the space, and works well.

AFI makes it simple for workers to switch jobs and helps make parts the same. The team works with customers to meet rules for size, smoothness, and what the gear is made of.

Material Options

Picking the right material is key for gear hobbing. AFI has many materials for different jobs. The table below lists common materials and their good points:

AFI helps customers pick materials based on how much force, how long it should last, and where they will be used. This careful choice makes sure the gears work well and last a long time.

Surface Treatments

Surface treatments help gears last longer and work better. AFI uses special ways like nitriding, induction hardening, and carburizing. Nitriding puts nitrogen on the gear at low heat, making a hard layer without changing the shape. Induction hardening heats just the teeth, then cools them fast to make them tough. Carburizing gives a hard outside to soft steel, making it stronger.

• Nitriding makes the surface hard and keeps gears strong in high temperatures.
• Induction hardening helps gears last longer and not wear out.
• Carburizing makes the whole gear stronger.

These treatments help gears from a gear hobbing machine carry heavy loads and work in hard places. AFI’s surface treatments make sure every gear meets tough industry rules.

Benefits

Precision

In the gear production industry, custom gear hobbing makes gears very accurate. CNC machines control each move, so every tooth is just right. Gears made this way have tight tolerances and exact shapes. This is important for jobs that need tiny details. Some CNC machines can make gears with only a 0.005mm difference. Laser calibration and servo systems help stop mistakes and keep things steady. Gear hobbing gives better accuracy than other methods. It is a top pick for hard jobs that need perfect gear.

Flexibility

Gear hobbing can make many kinds of gears. New machines let engineers change gear shapes and sizes fast. Old ways needed new tools for each gear. Now, one cutter can make many types by changing the path. This lets companies make gears with different angles and sizes quickly. Small batches and test gears are easier to make. This helps businesses keep up with new needs and changes without extra cost or waiting.

Efficiency

Gear hobbing is fast and good for big orders. The process cuts many teeth at the same time. CNC machines do a lot of the work, so there are fewer mistakes. Companies can send out gear quickly, even if they are complex. Changing gear types does not need new tools, so it saves time. This makes gear hobbing good for both big and small orders.

Durability

Gears made by gear hobbing last a long time. The process makes smooth and exact shapes, so gears wear out less. Surface treatments like nitriding and induction hardening make gears stronger. These treatments help gears stand up to heat, pressure, and rust. Machines with these gears run longer and break less often. Strong gears help cars, planes, and machines work better.

Tip: Pick a company with advanced gear hobbing machines. This helps make sure gears are high quality and work well in tough jobs.

Applications

Automotive

Custom gear is widely used in the automotive industry. Gear hobbing makes gears for engines and transmissions. It also helps make gears for electric vehicles. These gears must be strong and fit exactly. They need to handle fast speeds and heavy weights. More people are buying electric cars now. This means companies need more good gears. Advanced machines help make sure each gear fits well and works right.

The table below shows how different industries use custom gears:

Aerospace

Aerospace companies need gears that follow strict safety rules. Gear hobbing uses special machines to make very exact gears. These gears go into airplane engines and turbines. They are also used in control systems. Engineers pick special materials for these gears. The gears must handle strong forces and high heat. Quality checks happen at every step. This makes sure each gear is safe and works well. Companies use quick tests to try new gear designs.

• Multi-axis CNC machines make hard gear shapes.
• Light gears help make planes weigh less.
• Careful checks keep gears safe and reliable.

Electronics

Electronics need tiny gears for things like cameras and robots. Old ways cannot make such small gears. Gear hobbing can make micro gears with thin teeth. These small gears help devices get smaller and stronger. The process makes gears very exact and quiet. This is important for sensitive tools.

Machinery

Big machines need strong gears to work smoothly. Gear hobbing makes gears with smooth teeth and tough materials. This helps lower friction and power loss. CNC machines make sure each gear is just right. Checks and coolants keep gears strong and lasting longer. Custom gears help machines work better and last longer.

Choosing a Provider

Experience

When picking a gear hobbing provider, start by looking at their experience. Companies should choose suppliers who have worked in the industry for a long time and have the right certificates. A provider with many years in fields like automotive or aerospace knows about strict rules and quality needs.

Tip: Ask for gear samples or small test orders first. This helps you check if the gears are accurate and made the same way before you order a lot.

A good provider will:

1. Have certificates like ISO 9001 or IATF 16949.
2. Show they have finished projects like yours before.
3. Give clear reports and updates about how your gears are made.
4. Prove they can ship products well and on time.

AFI Industrial Co., Ltd. has more than 15 years of experience. They help customers all over the world with fast and advanced gear hobbing.

Capabilities

The best providers have strong technical skills. Companies should see if the provider uses modern CNC gear hobbing and grinding machines. It is important that they can make many kinds and sizes of gears.

AFI’s engineers help with custom designs, testing, and making both small and large orders.

Quality Assurance

Quality checks are very important in gear hobbing. Providers should have certificates like ISO 9001:2015 to show they follow strong rules and keep customers happy. For aerospace jobs, AS9100 means even more safety and risk checks.

Note: These certificates need regular checks, so you know the provider cares about quality.

AFI checks quality at every step. They use special measuring tools and have a team just for quality. They answer quickly, talk clearly, and help customers, so many trust AFI for custom gear.

Benefits of gear hobbling to today’s industries:

• It makes gears faster and helps work go quicker.
• CNC machines help make gears very exact and lower mistakes.
• This way can make many kinds and sizes of gears.
• You can make just one gear or a lot at once.
• Many gears can be made together, so more get done.
• Special cutters help make each gear the right shape.

AFI Industrial Co., Ltd. is special because they know a lot and help customers well. Their team uses smart inventory tools and answers clients fast. If you need strong, good gear, think about what you want and talk to AFI for help.
