#1 Gear Hobbing
We offer hobbing manufacturing services for a wide range of industries, so contact us if you need to get precise custom gear manufacturing. High precision gear hobbing processing, for your mechanical transmission system to provide reliable protection!
Custom CNC Gear Hobbing
AFI Industrial Co., Ltd. uses advanced equipment and a professional technical team to customize high-precision hobbling parts with various materials for customers. These gear parts are widely used in automobile manufacturing, aerospace, and different fields of life and can meet customers’ needs in all aspects.

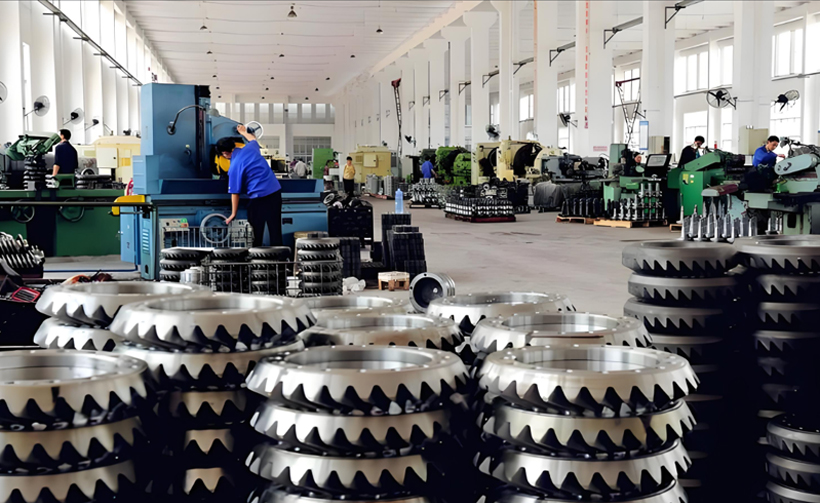

Gear Hobbing Workshop
Precision equipments can provide customers with quality gear parts.

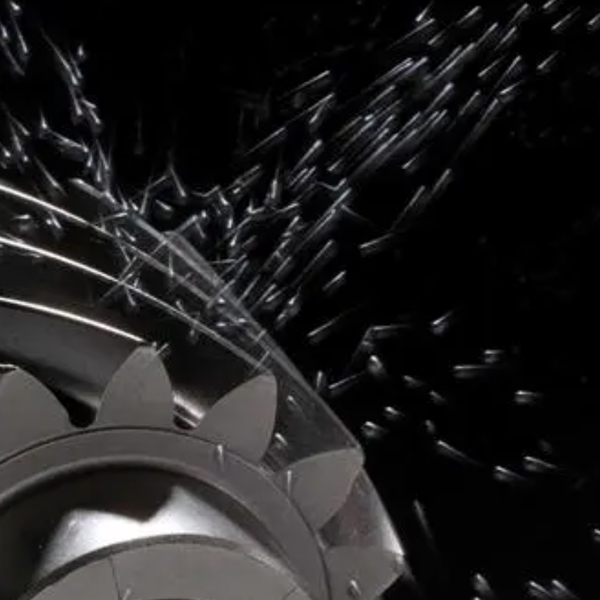

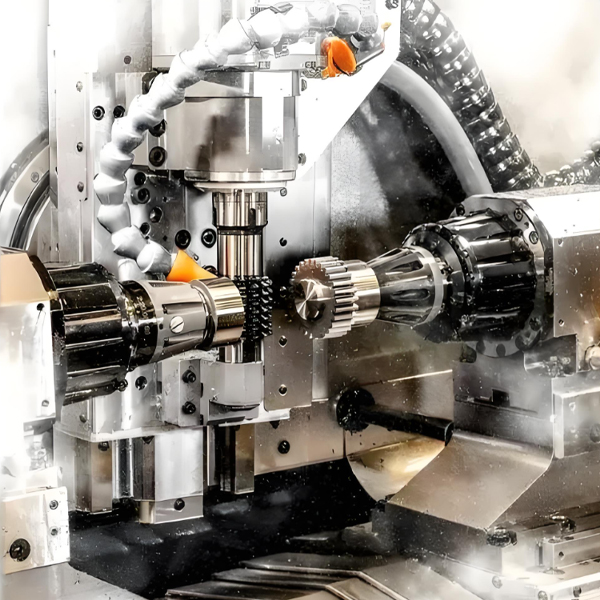

GearHobbing Process
Gear hobbing is the preferred process for making gear parts. It can not only quickly mass produce, but also ensure the stable quality of the gears produced.

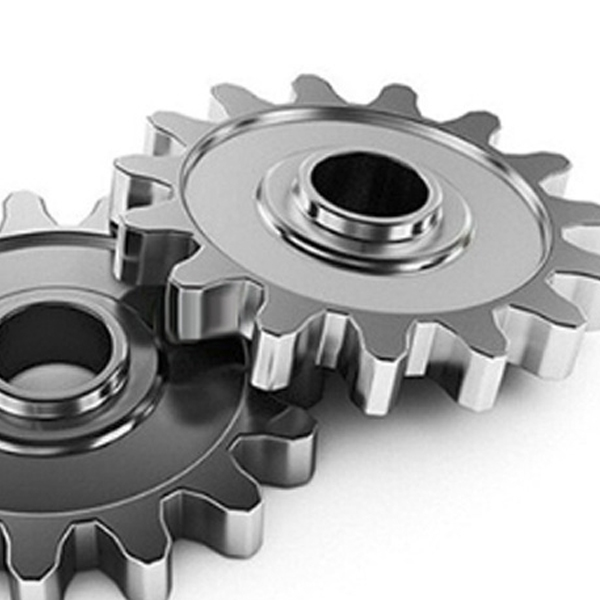

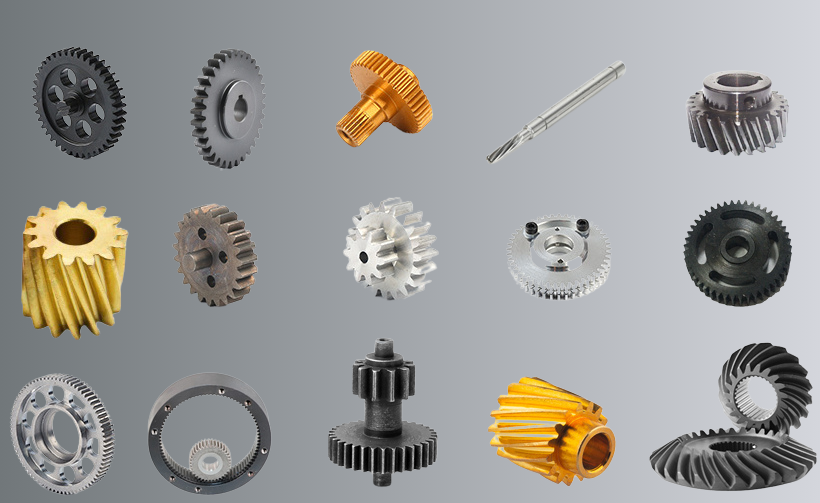

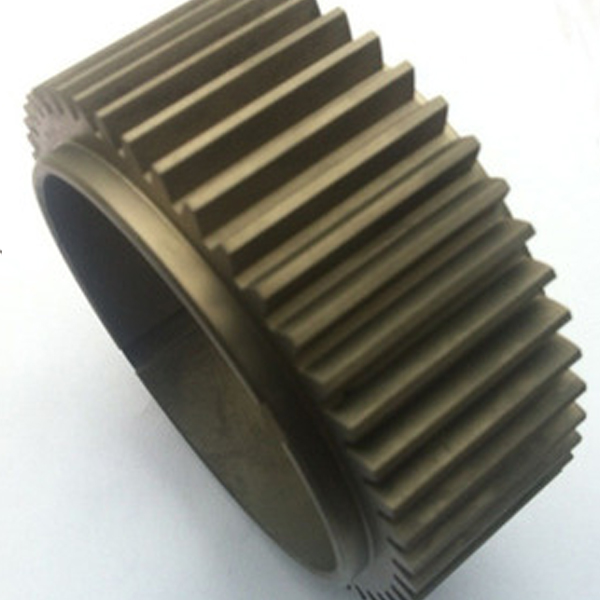

Gear Hobbing Parts
High precision hobbing, good surface quality, can meet the quality needs of customers.

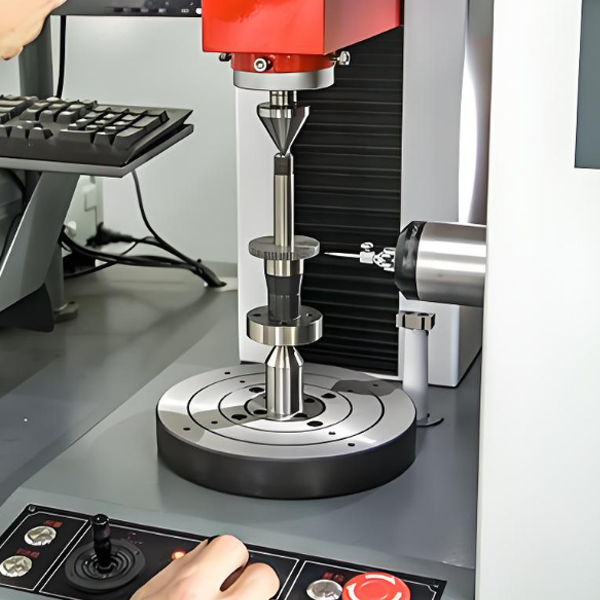

Hobbing Inspection
Precise inspection equipment and professional personnel ensure that customers get high-quality products.
Gear Hobbing Services
AFI Industries Ltd. provides its customers with gear manufacturing services to meet the demanding requirements of a wide range of applications.
The service is ideal for the automotive, aerospace, and mechanical industries, offering solutions tailored to your specific needs. With our advanced technology and exquisite craftsmanship, we ensure that every gear is produced according to strict standards of durability and performance.
Whether in prototype or mass production, the process guarantees the high quality and reliability of the gear, thereby increasing the efficiency and functionality of the product. Experience the benefits of precise engineering, reduced production times, and superior performance with specialized gear manufacturing services.

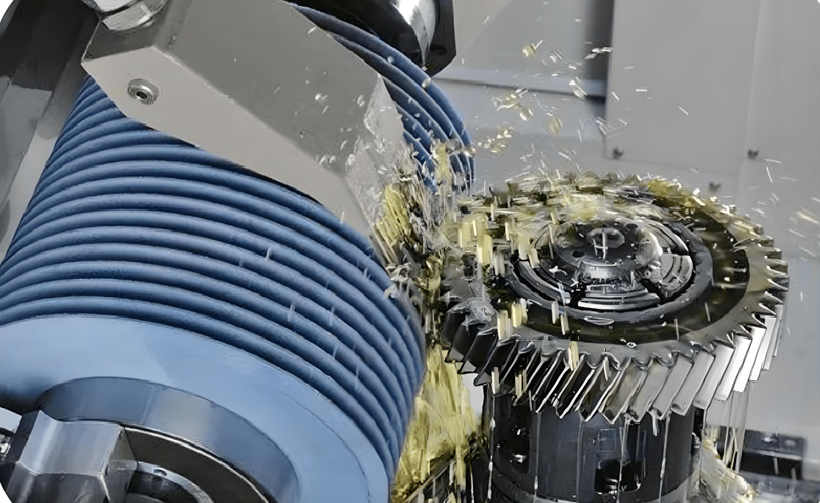

Precision Gear Hobbing
AFI Industrial Co., Ltd. uses advanced machinery and professional technicians to perform precision gear hobbing on workpieces.
The gears we produce for our customers have high geometric accuracy, good surface quality, excellent transmission performance, and are widely used in aerospace, electronics and other fields.

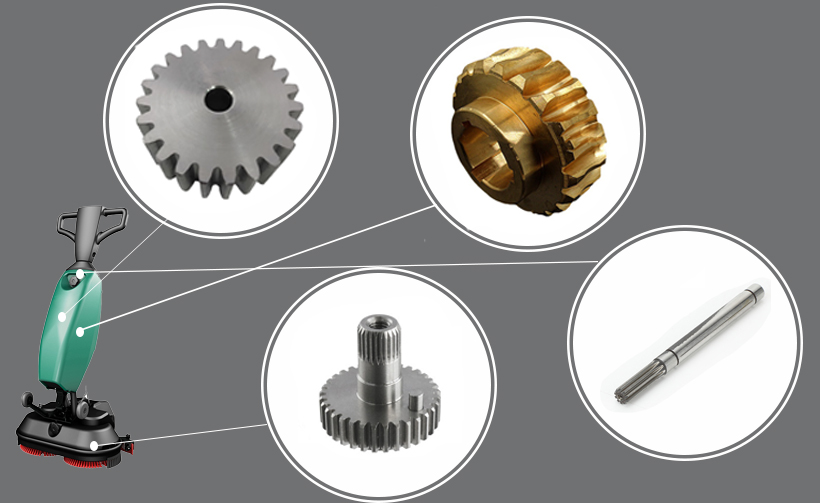

Sample Development of Gear Hobbing
AFI Industrial Ltd. provides its customers with rapid prototyping CNC gear hobbing services to help them achieve sample development. Our prototyping capabilities are ideal for designers and engineers, allowing customers to quickly test and improve designs, helping customers to release new products in the shortest possible time, thereby leading the market.
Custom Gear Cutting and Making
Our engineers will be based on the specific needs of customers, and the precise design of the gear planning. During the cutting process, the precision is strictly controlled within a very small tolerance range to ensure that the parameters of the gear module, pressure Angle, tooth thickness, and so on fully meet the design requirements.
Gear Grinding Process
Grinding is the final grinding of the gear after cutting and forming and other early processes, grinding requirements are extremely high precision, can reduce the surface roughness of the gear, and reduce the friction and wear between the teeth, thereby extending the use of the gear life, to provide customers with perfect products.

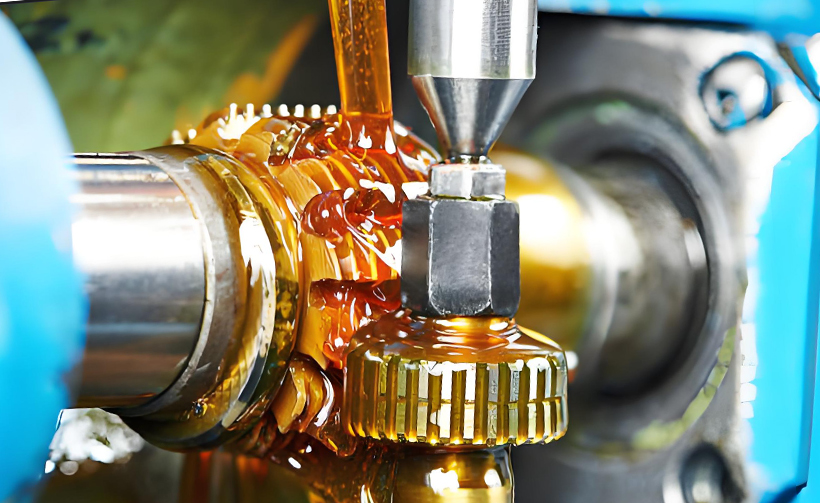

Custom Precision Hobbing
Custom precision gear hobbing parts are key components carefully crafted to meet the specific needs of customers. AFI Industrial Ltd. uses advanced technology and strictly controls every detail to ensure that gear parts are accurate in size and smooth in surface to meet the stringent requirements of complex engineering. It provides reliable support for various equipment and instruments that use gears and improves their overall performance.
Hobbing Drawing
From the receipt of customer drawings, the relevant departments will produce according to the drawings. The dimensions of the product are required to be completely consistent with the drawings to ensure that the product meets the requirements.
Engineer Analysis Drawing
Engineers conduct a comprehensive analysis of the drawings before production, determine the production materials and production processes, and ensure that the output is in line with customer requirements.
Gear Hobbing
Technical operators, in strict accordance with the production process into production, to ensure high quality and efficient production, to meet customer demand for products.
Hobbing Inspection
From incoming material to manufacturing process to delivery, quality inspection personnel test the products according to the drawings to ensure that the products fully meet the quality requirements of customers.
Custom Gear Products’ Materials
AFI Industrial Co., Ltd. offers its customers products in a wide range of materials. Whether it is necessary to process steel, aluminum, copper and other metal materials to meet the needs of high strength and durability; Or use plastic, such as nylon, PVC, etc., to achieve lightweight and special performance; Or for other special materials with specific requirements, we can rely on advanced technology and professional team, tailor-made for you to meet the quality needs of customers.
Aluminum alloy: lightweight, good thermal conductivity, can be used for some weight requirements.
- 2024
- 6061
- 7075
Copper has good wear resistance and anti-friction, suitable for some special requirements of the gear, such as instrument gear.
- Copper
- brass
- bronze
Steel has good mechanical properties, relatively low cost, strong machinability and good wear resistance, and is widely used in all walks of life.
- Carbon steel
- alloy steel
- cast iron
Bronze has strong resistance to corrosion and metal fatigue and is suitable for the manufacture of bearings, bushings and Marine hardware.
- Tin bronze
Plastics have the characteristics of light weight, corrosion resistance, self-lubrication, etc., and can be used in some low-load and low-speed occasions, such as toys, office equipment and so on.
- POM
- PA
- PPS
- PC
Alloy hardness, good heat resistance, corrosion resistance, etc., including.
- steel alloy
- Aluminum alloy
- zinc alloy
- titanium alloy
- nickel alloy
- molybdenum alloy
- titanium alloy
- tungsten alloy
- chromium alloy
Custom Surface Treatment
AFI Industrial Co., Ltd. provides its customers with customized gear machining surface treatment services to improve the performance and service life of gears. The specific surface treatment method should be selected according to the use requirements of the gear, working environment, and materials. Whether you need anodizing, electroplating, or surface treatment for other projects, our expertise adds value to your parts to meet the quality requirements of your products.

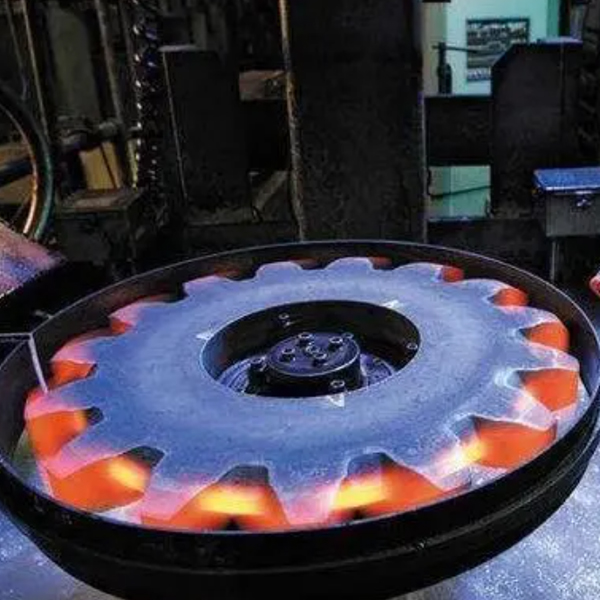

Carburizing makes the gear surface rich in carbon elements, which can improve the hard bottom and wear resistance of the gear surface, enhance the fatigue strength, maintain the toughness of the heart, and have excellent comprehensive mechanical properties.
After nitriding treatment, the gear surface hardness and wear resistance can be improved, the gear fatigue strength can be increased, the gear corrosion resistance can be improved and the dimensional stability can be maintained, and the gear surface can be more smooth.

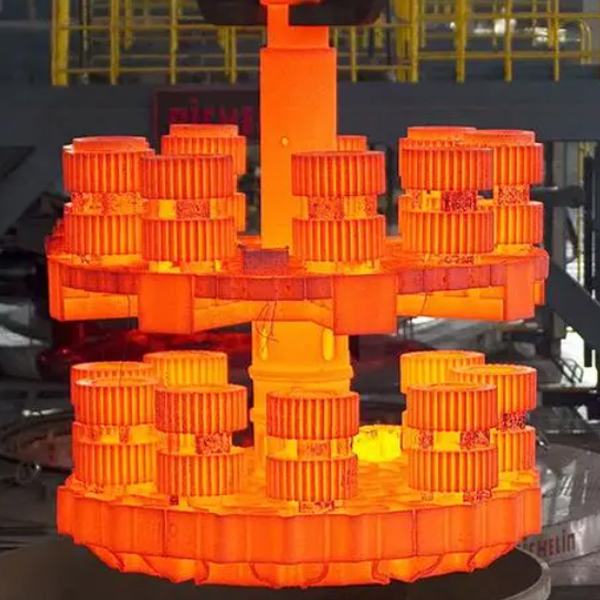

Induction hardening can improve the surface hardness and wear resistance of the gear, and enhance the fatigue strength. This method has fast heating speed, short time, and less oxidation and decarbonization of the gear.
Electroplating can improve the corrosion resistance and wear resistance of the gear, make its surface smooth and bright, and improve the conductive energy of gear.
Chemical coatings usually have high hardness and good wear resistance, which can improve the corrosion resistance of gears and reduce the coefficient of friction between gears.
Shot peening results in plastic deformation of gear surface, which increases gear surface hardness, enhances fatigue strength and reduces gear surface roughness.
Rolling reinforcement can make the gear surface more smooth and flat, reduce surface roughness, enhance surface hardness, improve fatigue performance, improve dimensional accuracy, and strengthen material properties.
Stainless steel is known for its corrosion resistance, making it the first choice for medical equipment and food processing equipment.
- SUS201
- SUS304
- SUS316
- SUS430
Mass Production
AFI Industrial Co., Ltd. is a company with a number of vertical and horizontal gear hobbing machines. Under the premise of ensuring quality, we can produce various specifications of hobbing parts to meet the customers’ needs of different quantities.
Dimensional Tolerance
In order to ensure the quality of hobbing machining, AFI Industrial Co., Ltd. needs to strictly control product tolerances in the machining process, including gear size tolerances, tooth shape tolerances, tooth direction tolerances, radial runout tolerances, tooth spacing deviations, etc. We will choose the appropriate tolerances according to different gear uses and accuracy requirements, combined with customer drawings, to meet customer product needs.
How to Start Your Order
- Send your drawings
- Process discussion, quotation
- Make a sample
- Volume produce
- Shipment &Payment
Checkout
AFI Industrial Co., Ltd. has a perfect quality inspection system and standards for all gear hobbing parts from feeding to manufacturing to shipping. Professional inspectors strictly test according to drawings to meet customer quality requirements.
Shipment
The company and the world's major well-known freight companies have co-operated, products according to customer requirements after packaging, will choose the most economical and fastest mode of transportation, and the products are quickly delivered to customers.
Our Promise
With our services, you will get a trusted supplier. In the coming days, we will continue to improve our professional degree, expand our credibility, and let you get the following harvest!
Quality Guarantee
We provide a full range of checks to ensure that the dimensions are accurate and the appearance meets customer specifications during the hobbing process.
Quick Response
After receiving the order, we respond quickly within 2 hours, quote within 4 hours, and deliver according to quantity within 3-15 days.
Custom Material
We will be according to the needs of customers, carefully selected high-quality raw materials, customized to meet customer needs of all kinds of products.
Custom Surface Treatment
We can apply a variety of surface treatments to manufactured products according to customer requirements, including electroplating, anodizing...
Arbitrary Size
We will produce according to the dimensions required by the customer’s drawings, and ensure that all dimensions are within the tolerance range to meet the product quality requirements.
Unlimited Quantity
Whether it is a single sample or tens of thousands of mass production, we can produce according to customer requirements to achieve the consistency of product quality.
Brand We Cooperated With
More than 1000+ customer cooperation experience, 20 years of metal parts processing expertise, superior production process and perfect human support, enough to meet your product needs.
Frequent Asked Questions
Gear hobbing is the principle of generating method to process gears. Using the hob to process the opposite wheel is equivalent to the meshing of the helical cylindrical gear pair.
Gear hobbing
The gear hobbing is processed by the meshing principle of helical gear. The hob is like a helical gear, which engages with the gear to be machined under a certain transmission ratio.
The hob feeds along the axis of the gear while rotating, and gradually cuts out the tooth shape of the gear.
Gear shaping
The gear shaper is machined by the meshing principle of a pair of cylindrical gears. The gear shaper is equivalent to a gear, which engages with the gear without clearance while moving up and down.
The cutting edge of the gear shaper cutter cuts a tooth slot of the gear in each reciprocating motion, and gradually forms a complete tooth shape of the gear through multiple cuts.
1. High processing accuracy,
2. High production efficiency,
3. Wide range of application,
4. Long tool life,
5. Easy to achieve automated production
Gear hobbing machine is a machine tool used to process gears, it through the relative rotation of the hob and the workpiece and the axial feed movement of the hob to process gears, different types of gear hobbing machine may have some differences, the specific working principle and operation method may be different. When using the gear hobbing machine for processing, it should be strictly operated in accordance with the operating procedures of the machine tool to ensure the safety and quality of processing.
Gear forming and hobbing machining are two different gear processing methods, they mainly have the following differences: gear forming is the use of the same shape of the gear groove cutter (such as gear milling cutter, gear broach, etc.), through the relative motion of the tool and the workpiece, the shape of the gear groove is gradually copied to the workpiece, so as to process the gear.
This machining method is similar to stamping parts with a die, and the tool directly shapes the tooth shape of the gear. The gear hobbing is processed by the meshing principle of helical gear. The hob is like a helical gear, which engages with the gear to be machined under a certain transmission ratio.
The hob feeds along the axis of the gear while rotating, and gradually cuts out the tooth shape of the gear.
