What is Electroplating for CNC Machined Components and How Does it Work

Electroplating is a metal finishing process that cnc machined components is a way to uses electricity to put a thin metal layer on parts made by CNC machining. The process puts the part in a special liquid. Electric current makes metal ions stick to the part. This creates a smooth and protective layer. This method makes the surface harder. It also stops rust and gives a shiny look. AFI Industrial Co., Ltd. offers expert electroplating services. These services help CNC-machined parts last longer and look nicer. Electroplating for CNC-machined components is important. A high-quality finish makes parts stronger, more valuable, and better looking.

Key Benefits of Electroplating for CNC Machined Components:

• Better wear resistance
• Stops corrosion
• Looks nicer
• Helps conduct electricity
• Lets you pick coating thickness

Key Takeaways

• Electroplating uses electricity to put a thin layer of metal on CNC-machined parts. This makes the parts stronger and lasts longer.
• The surface finishes process keeps parts safe from rust, damage, and scratches. It also makes them look better with a shiny, smooth finish.
• Metals like nickel, chromium, gold, and copper each give special benefits. These include being harder, stopping rust, and letting electricity flow better.
• Cleaning and getting the surface ready before plating is important. This helps the metal layer stick well and stay on longer.
• Making parts with round edges and good racking helps the metal coat spread evenly. This stops weak spots from forming.
• Electroplating is used in many industries like hardware, electronics, cars, planes, and medical tools. It helps these things work better and be worth more.
• Quality checks and caring for the environment are very important. Companies like AFI Industrial Co., Ltd. use strong checks and safe ways to get the best results.
• Picking the right metal, how thick the coating is, and the plating method is important. This helps balance cost, protection, and looks for each job.

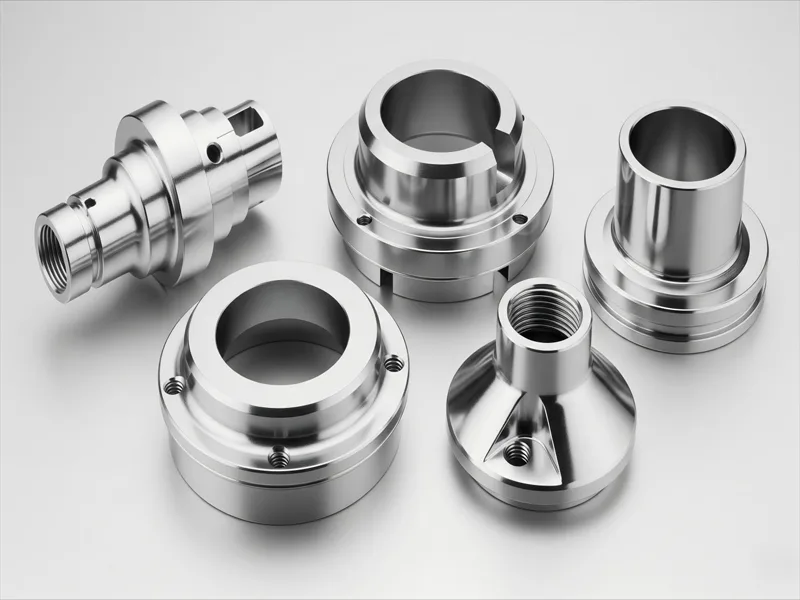

Electroplating for CNC Machined Components

What is Electroplating?

Electroplating uses electricity to put a thin metal layer on a CNC-machined part. The part goes into a special solution with metal ions. The part is called the cathode. The metal that will coat the part is the anode. When electricity flows, metal ions move from the solution to the part. They stick to the part and make a thin metal layer. This process is called electrodeposition. The new metal layer bonds tightly to the part. The finish is smooth and even. It covers the whole part, even if it has a tricky shape.

Key parameters: Current, time, electrolyte composition.

Many things control how electroplating works. The electric current changes how fast the metal sticks and how thick the layer gets. The time spent plating also changes the thickness. The solution’s makeup, which holds the metal ions, affects the final coating. Temperature and stirring the solution can also change the results. AFI Industrial Co., Ltd. uses careful controls. This makes sure each part gets the right thickness and finish.

Tip: Most electroplated coatings on CNC machined components are 5 to 25 microns thick. This thickness protects the part and makes it look good.

Why It Matters

Advantages of Electroplating for Metal Components

Electroplating for CNC machined components gives many good benefits. The thin metal layer protects the part from wearing out and from rust. For example, copper, nickel, or chromium layers make the surface harder. Long-lasting corrosion protection even in harsh environments. Electroplating also makes the part resistant to scratches and stops rust. This is important for parts used outside or in machines.

Electroplating is different from other ways to finish metal. The table below shows how electroplating compares to other surface treatments:

Surface Finishing Technique	Process Type	Material Interaction	Key Characteristics	Typical Applications
Electroplating	Additive coating using electric current	Deposits thin metallic layer on conductive substrates	Precise control of coating thickness and composition; enhances corrosion resistance, wear resistance, electrical conductivity, and aesthetics	Electrical connectors, aerospace components, decorative and protective finishes
Powder Coating	Additive coating by electrostatically applying powder and curing by heat	Forms a protective oxide layer on surface	Produces thick, uniform coatings with excellent durability and corrosion resistance; wide color options	Automotive parts, outdoor furniture, industrial equipment
Passivation	Chemical conversion coating	Smooths and brightens the surface by removing material	Removes surface impurities; improves corrosion resistance	Medical devices, food processing equipment, stainless steel components
Mechanical Finishing (Grinding, Bead Blasting)	Mechanical removal or texturing of surface	Removes or textures surface without adding material	Improves surface smoothness, accuracy, or texture; no material deposition	Tool manufacturing, automotive, aerospace
Electropolishing	Electrochemical dissolution of surface layer	Smooths and brightens surface by removing material	Reduces surface roughness; improves corrosion resistance and cleanliness	Medical, food, pharmaceutical industries

Electroplating for CNC machined components lets you control the metal layer’s thickness and what it is made of. This helps meet the needs of many industries. For example, car makers use plating to stop steel parts from rusting and to make them look better. Electronics companies use electroplating to help parts carry electricity and stop them from rusting. Aerospace companies use it to make parts stronger and last longer in tough places.

Electroplating also helps moving parts, like bearings, slide better and handle heat. This means CNC machined components work better and last longer, even with chemicals, heat, or heavy use. AFI Industrial Co., Ltd. gives expert electroplating services. These services help many industries get the best from their CNC parts.

Note: Electroplating can cover small details and tricky shapes. This makes it great for CNC machined components with special designs.

Electroplating Process

Main Steps

Pretreatment

Pretreatment is the first step in electroplating. Workers clean CNC machined parts to get rid of oil, dust, and rust. They also remove cutting fluid. Cleaning can use polishing, chemicals, or sound waves. Deburring takes away sharp edges left from machining. Fine deburring makes the surface even smoother. This careful work helps the metal layer stick better. If the part is dirty or rough, the coating may not look good. Good pretreatment gives the part a strong base for a nice finish.

Tip: A clean and smooth part helps electroplating make a bright, even, and strong coating.

Plating

Plating starts after pretreatment. The part is now called the cathode. It goes into a tank with a special solution called an electrolyte. The metal that will coat the part is the anode. Workers connect both to a power source. When the current flows, metal ions move to the part. This is the main step in electroplating. The metal layer’s thickness depends on current, heat, and time in the bath. AFI Industrial Co., Ltd. uses careful controls for each part. They can make the coating thick for more protection or thin for small details.

1. Put the clean part in the plating bath.
2. Connect the part (cathode) and metal (anode) to power.
3. Turn on the current to move metal ions.
4. Control heat, voltage, and time for the right thickness.
5. Watch the process to make sure the coating is even.

Post-Treatment

After plating, the part goes through more steps. Workers rinse the part to wash off chemicals. They may use passivation for extra protection. Sometimes, they polish the part to make it shiny and smooth. These steps help stop rust and make the part look better. Post-treatment also checks for problems and makes sure the coating lasts.

Key Components

The electroplating process uses several main parts:

• Plating Bath: This tank holds the electrolyte with metal ions like nickel, copper, or chromium. The solution’s mix changes the coating quality.
• Power Supply: This gives direct current to move metal ions from the anode to the cathode.
• Anode and Cathode: The anode is the metal for coating. The cathode is the CNC-machined part.
• Racking System: This holds parts in place so the coating covers all sides.
• Control Systems: These check and change current, heat, and time for each batch.

AFI Industrial Co., Ltd. uses modern machines to keep the process steady. The company follows strict quality checks. Workers look for problems like pits or uneven color. They measure the coating’s thickness with special tools. AFI meets industry rules and checks quality often.

Note: AFI also protects the environment. The company treats water and handles chemicals safely to keep workers and nature safe.

The electroplating process at AFI uses careful prep, exact plating, and good post-treatment. This makes a strong, smooth, and lasting coating on CNC-machined components. The process helps each part last longer, look better, and be worth more.

Metals and Materials

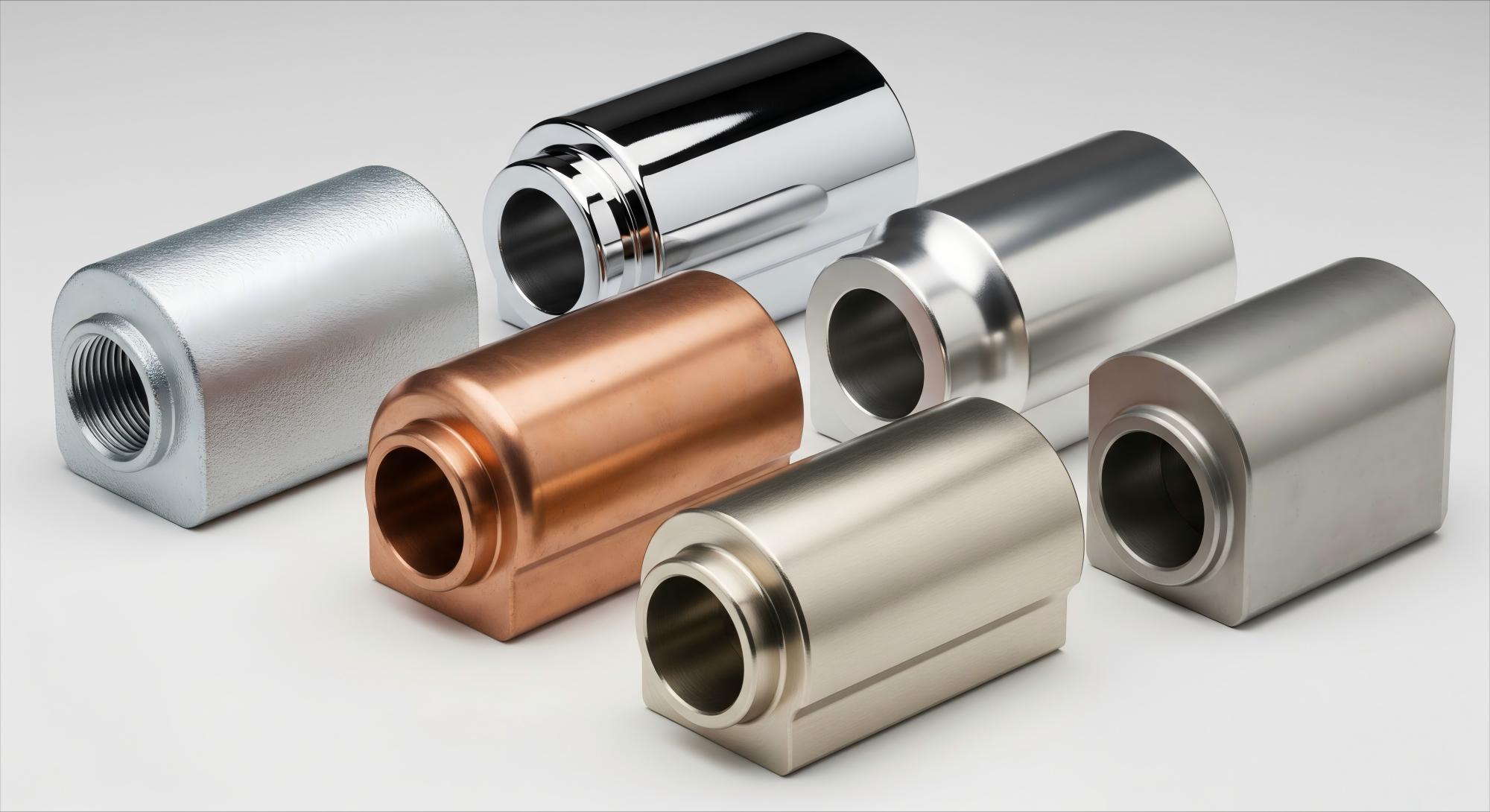

Common Plating Metals

Many CNC-machined components get metal coatings to work better. Electroplating uses different metals for different results. Each metal helps the part in its own way.

• Copper: Copper plating lets electricity flow very well. It is also used as a first layer for other metals.
• Nickel: Nickel makes a hard and smooth surface. It stops parts from wearing out and rusting. Many companies use nickel for both looks and protection.

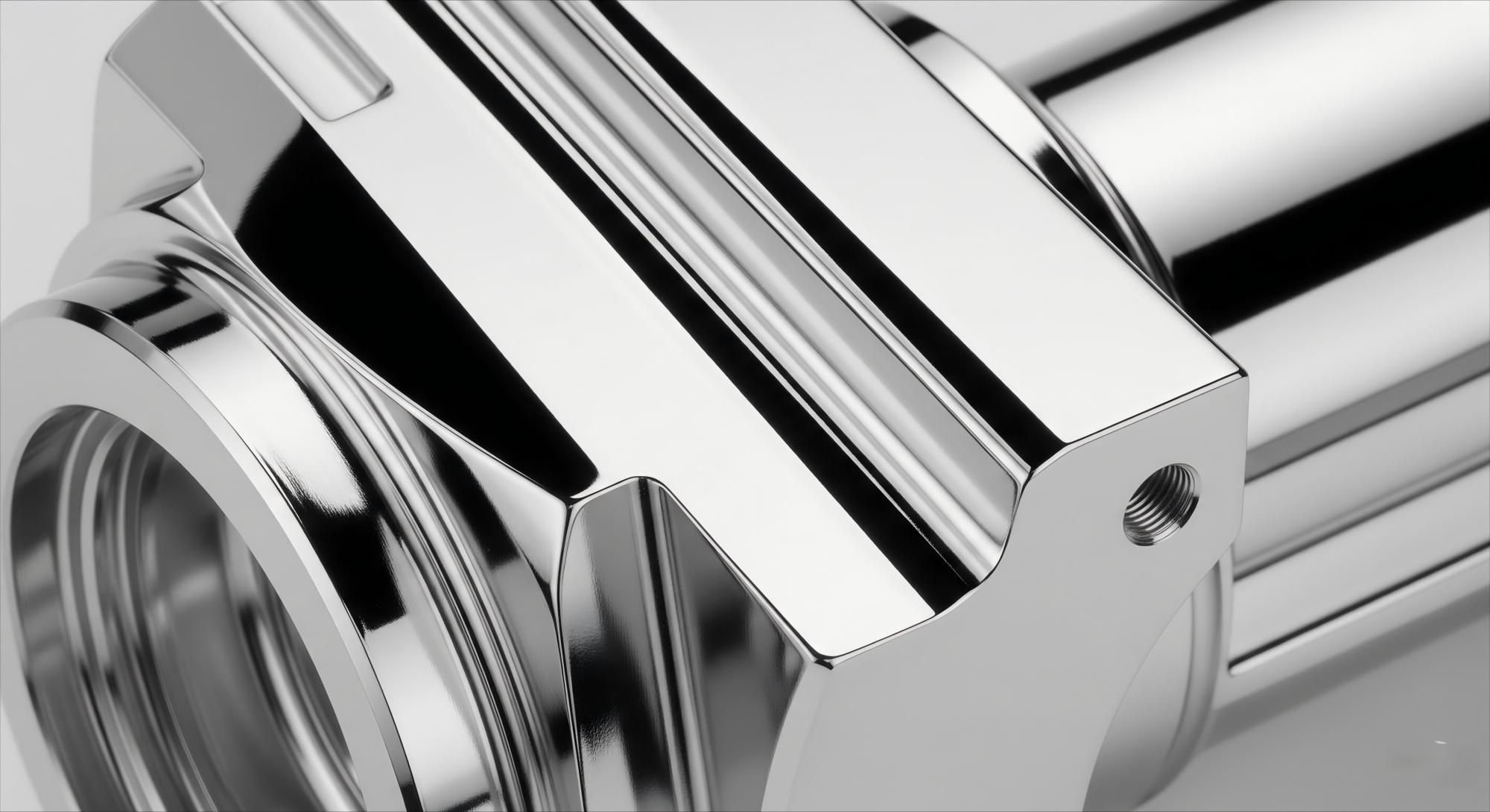

• Chromium: Chromium gives a shiny, mirror-like look. It keeps parts safe from scratches and rust. Car parts and tools often have chromium plating.
• Zinc: Zinc keeps steel and iron from rusting. It makes a shield that blocks water from touching the metal.
• Silver: Silver plating lets electricity move easily. It also makes parts bright and nice to look at. Electronics and pretty things often use silver.
• Gold: Gold does not tarnish or rust. It is good at carrying electricity. Gold plating is used in electronics and fancy items.

Tip: Pick the right metal for electroplating based on how the part will be used. Some metals are best for electrical parts. Others are better for stopping rust or making things look good.

Non-Metallic Materials

Electroplating can also work on things that are not metal. Plastics and ceramics can get a metal coating if they are treated first. These materials do not carry electricity, so extra steps are needed.

Common treatments for non-metallic materials include:

• Putting on a special undercoat to make the surface ready for electroplating.
• Scratching the surface with chromic acid so the metal sticks better.
• Using electroless plating to add a thin metal layer without electricity.
• Treating the surface with corona discharge, flame, or plasma helps the metal stick.

The process for preparing plastics and ceramics usually follows these steps:

1. Clean the surface to take off oils, dust, and grease. 2. Scratch the surface, often with chromic acid, to make it rough. 3. Dip the part in a solution with palladium and tin salts to activate it. 4. Add an electroless plating layer, like nickel or copper, to make it conduct electricity. 5. Sometimes, use special paint instead of electroless plating. 6. Electroplate the part to get the metal thickness you want.

After these steps, non-metal parts can get the same metal finish as metal ones. This lets designers use light or special materials but still get the good things a metal surface gives.

Note: Electroplating on plastics and ceramics lets industries make products that work well and look nice too.

Benefits

Corrosion Resistance

Plating helps CNC-machined components fight rust and damage. The metal layer covers the part and keeps out water, air, and chemicals. This shield stops rust and other harm. For example, nickel and zinc plating protect steel and aluminum parts. These coatings work well in wet or tough places. Many industries use electroplating to keep parts safe from moisture, salt, or chemicals. AFI Industrial Co., Ltd. uses special plating methods for strong corrosion resistance. This careful work helps parts last longer and need fewer repairs.

Tip: Plating is important for outdoor gear, car parts, and marine hardware.

Wear Resistance

Plating makes CNC-machined components tougher and harder to scratch. Hard metals like chrome or nickel cover the surface. This extra layer cuts down on friction and stops scratches and scuffs. Electroless nickel plating gives a thick, even layer for greater hardness. Moving parts like gears or bearings last longer with this coating. Zinc plating on aluminum also helps stop scuffing and wear. This means machines work better and last longer. AFI Industrial Co., Ltd. picks the right plating for each industry to give the best protection.

• Plating adds a hard layer for safety.
• It lowers friction and wear.
• Parts last longer and work better.

Appearance

Electroplating makes CNC-machined components look smooth and shiny. The thin metal layer gives a bright, even finish. Many companies use plating to make their products look better. Gold, silver, and chrome plating all give a polished look. This makes products stand out and look high-end. Plating can also give different finishes, from dull to mirror-bright. AFI Industrial Co., Ltd. can change the look to fit what customers want. A good finish looks nice and adds value to the product.

• Plating gives a shiny, polished surface.
• It makes parts look new and fancy.
• Many metals and finishes are possible for custom looks.

Note: Electroplating helps CNC machined components work better and look nicer, making them more useful and valuable.

Value

Electroplating gives more value to CNC-machined components. It does more than just protect the parts. This process helps products look better and work well every day.

Parts with electroplating last longer. The metal layer keeps the main material safe from harm. This means you do not need to fix or replace parts as often. Companies save money because their products stay strong for a long time.

Electroplating also makes products look nicer. A shiny and smooth finish makes parts more eye-catching. Customers like products that look new and high-quality. People often pick items that look polished and fresh. This can help companies sell more things.

Note: A good metal coating can make a part cost more. Buyers will pay extra for items that look nice and last longer.

Electroplating can give special features, too. For example, gold or silver plating helps electricity move better. This is important for electronic parts. Nickel or chrome plating makes surfaces easier to clean. Some coatings even help parts fight off germs or chemicals.

AFI Industrial Co., Ltd. gives custom electroplating services. They help many industries like hardware, electronics, and crafts. Each industry needs something different. AFI can change the process to fit those needs. For example, they can make a thick, strong layer for machine parts. They can also make a thin, shiny layer for pretty items.

Here are some ways electroplating adds value:

• Longer product life: Parts fight rust, wear, and damage.
• Better appearance: Shiny, smooth parts attract buyers.
• Higher resale value: Products with good finishes can sell for more.
• Special functions: Some coatings help with electricity or stop chemicals.
• Brand reputation: Good finishes show a company cares about its products.

Feature	Value Added
Corrosion resistance	Longer service life
Wear resistance	Fewer repairs and replacements
Attractive finish	Higher customer appeal
Custom coatings	Meets industry-specific needs
Enhanced performance	Better function in tough settings

Electroplating helps companies earn trust from customers. When parts last longer and look better, people feel good about buying them. AFI Industrial Co., Ltd. uses smart methods to make sure every part is top quality. This careful work adds even more value to CNC-machined components.

Tip: Picking the right electroplating service can really help your product’s quality and value.

Design Considerations for Electroplating CNC Parts

Material Compatibility

Picking the right material for electroplating is very important. Not every metal or surface works with every plating process. Some materials can cause problems during plating. These problems include weak spots or the metal layer not sticking well. Engineers need to look for these issues before they start.

The table below lists common problems with material compatibility and how they affect electroplating:

Material Compatibility Issue	Description	Cause/Consideration	Impact on Electroplating
Hydrogen Embrittlement	Metal gets brittle and cracks	Hydrogen goes into metal during plating	Makes part weak, may break
Surface Oxidation	Oxidation forms on the part	Air or dirt before plating	Metal layer may not stick
Pitting	Tiny holes show up on the surface	Air trapped or bad cleaning	Uneven layer, weak spots
Sharp Edges	More metal builds up on sharp edges	Sharp shapes, need rounded edges	Layer may crack or peel off
Chemical Imbalance in Bath	Wrong mix of chemicals	Bad care of the bath	Layer looks dull or rough
Temperature and Current Density	Wrong heat or current	Bad process control	Weak layer, may not stick
Contamination	Dirt or oil on the part or in the bath	Not cleaned well	Dull look, layer may not stick
Blistering	Bubbles form under the metal layer	Gas from oils or grease	Raised bumps, weak spots
Cleavage Points	Splits in the base metal	Casting or heat problems	Layer may peel or break
Unclean Manufacturing	Oil or dust on the part	Not cleaned or handled right	Layer has problems, may not stick

Tip: Always clean CNC parts well before plating. This helps the metal layer stick better and last longer.

Part Geometry and Racking

The shape of a CNC-machined part changes how the metal covers it. Parts with sharp corners, deep holes, or tricky shapes are harder to plate. Sharp edges get more metal because electricity gathers there. This can make thick, brittle spots that might crack. Rounding edges to about 10% of the part’s thickness helps stop this.

Racking is how parts are held during plating. Good racking keeps parts steady and lets metal cover all sides. Engineers design racks to fit each part’s shape. This makes sure electricity reaches everywhere. For small or fragile parts, special racks or baskets are used. This setup helps avoid missed spots and gives a smooth finish.

Note: Good racking and smart part design help stop problems and make plating work better.

Thickness Control

Controlling how thick the metal layer is matters for quality and use. The right thickness protects the part and gives it the look or job it needs. If the layer is too thin, it can wear off. If it is too thick, it might crack or change the part’s size.

There are different ways to control how thick the layer is:

• Rack plating: Used for big parts or small batches. Parts hang on racks. The layer is usually more than 10 micrometers thick.
• Barrel plating: Best for lots of small parts. Parts roll in a drum. The layer is usually less than 10 micrometers thick.
• Continuous plating: Used for long strips or wires. The process uses pulse current and fast stirring. This keeps the layer thin and even.
• Brush plating: Good for small spots or repairs. Workers use a brush to put on metal. The layer can be up to 0.5 millimeters thick.

How thick the layer gets depends on time, current, and what is in the bath. For example, chrome plating is often 10–50 micrometers thick. Nickel is 10–40 micrometers, and gold is 0.5–5 micrometers. Standards like ASTM B456 and ISO 2081 help make sure coatings meet industry rules.

Tip: Always check what thickness your part needs. This helps balance protection, cost, and how the part works.

Process Complexity

How hard the process is matters a lot in electroplating CNC-machined components. If a part has a tricky shape or needs to be very exact, the job gets harder. Complex parts often need special machines and take more time to finish. Workers must be extra careful with these parts. This extra work makes labor cost more.

Tricky shapes can make it tough for the metal layer to cover every spot. Some places might get too much metal, while others get too little. Getting an even layer on hard shapes needs special skills and close watching. Sometimes, engineers make custom racks or use special tools to hold the parts during plating.

When parts are complicated, making them takes longer. More steps and checks slow things down. Special handling and extra checks also raise the total cost. Pollution control equipment becomes more important with tough jobs. These systems keep workers safe and help the environment.

Designers should think about how hard the process will be from the start. Making shapes simpler and cutting out extra details can save money. Picking the right materials and finishes helps make electroplating easier. Planning lets companies save time and money but still get good results.

Tip: Simple shapes make electroplating easier, cost less, and give better quality.

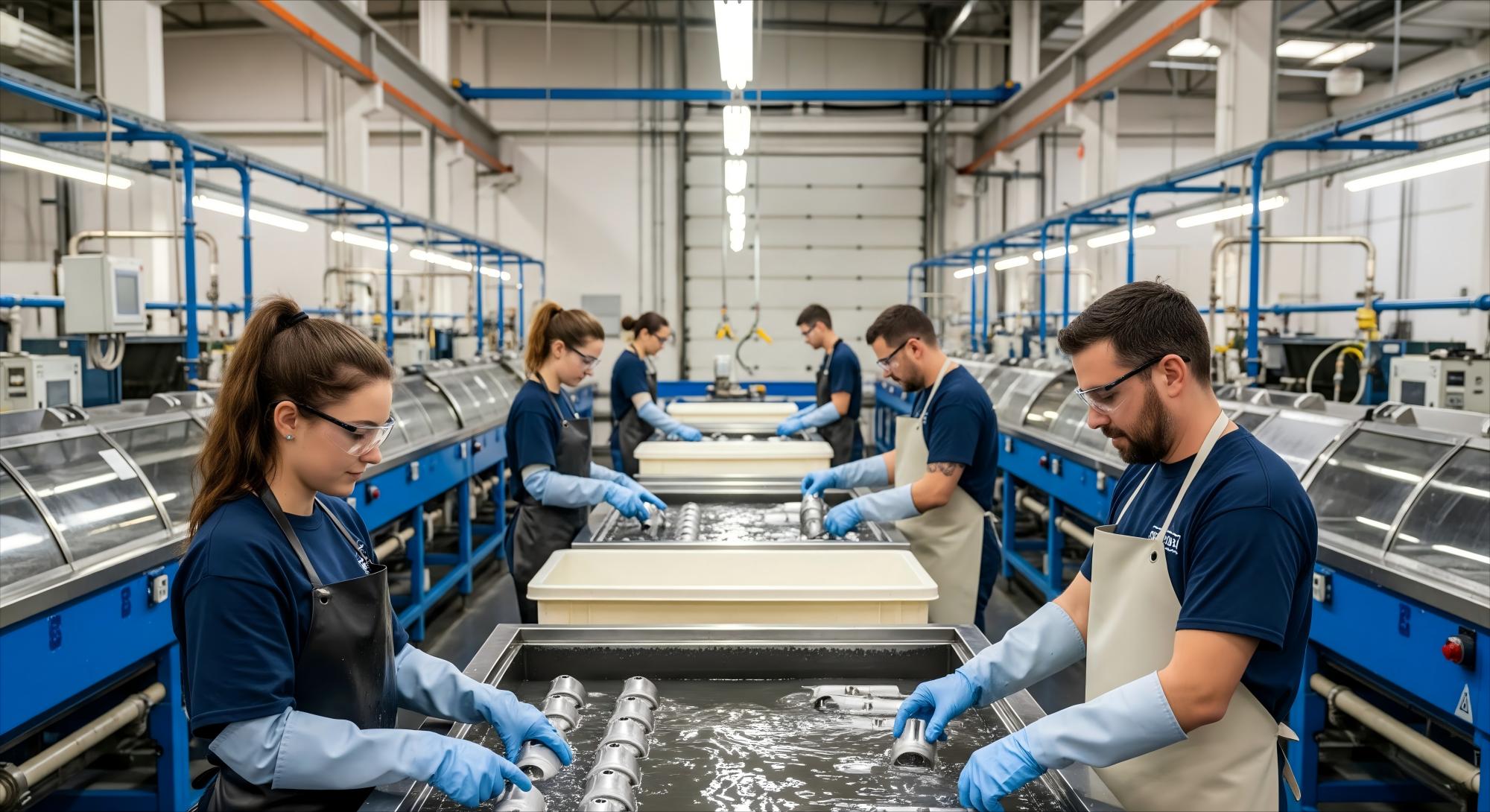

Surface Finish Before Plating

The surface of a CNC-machined part must be just right before electroplating. A smooth, clean surface helps the metal layer stick well. Dirt, oil, or water can cause problems like peeling or bubbles.

Before plating, workers often heat the parts to dry them. They use grinding or electropolishing to take away defects and dirt. These steps make the surface very smooth, usually between Ra 0.05 and 0.8 micrometers. A smooth surface helps the metal coat stick evenly and stay strong.

Cleaning is very important. Workers use special cleaners to get rid of oils, dust, and dirt. They handle parts gently so they do not scratch them. Even small scratches can hurt how the part looks and how long it lasts.

• Surfaces must be smooth, clean, and have no defects.
• Grinding or chemicals take away rough spots and dirt.
• Surface roughness should be fine, about Ra 0.05 to 0.8 µm.
• Cleaning gets rid of oils, dirt, and other stuff.
• Electropolishing makes the surface smoother and helps the metal stick.
• Do not use finishes that scratch easily before plating.

These steps help make sure the metal layer is even, strong, and looks good. Good surface prep gives better results and helps CNC-machined components last longer.

Note: Good cleaning and prep are key for a great electroplated finish.

Applications

Hardware

Electroplating is very important for hardware. Many CNC-machined parts in hardware need to be strong and last long. Door handles, hinges, and brackets often get a metal coating. This coating keeps them safe from rust and scratches. It also makes them look shiny and smooth. Builders like electroplated hardware because it stays bright for years. Some hardware needs to be extra hard. Nickel or chrome plating makes these parts tougher. This helps tools and gears work better and last longer. Many locks use electroplated finishes to stop wear. Hardware stores sell items with gold, silver, or zinc coatings for looks and protection.

Tip: Electroplated hardware is simple to clean and keeps its color longer than parts without coating.

Electronics

Electroplating helps electronics in many ways. CNC machined components in electronics must carry electricity well and not get damaged. Electroplating puts a thin metal layer, like gold, silver, or copper, on connectors and circuit boards. This layer helps electricity move better and keeps connections strong.

• Electroplating makes the signal flow better.
• It protects parts from water and chemicals.
• The process controls coating thickness for special needs.
• It smooths out flaws and helps other coatings stick.
• Electroplating covers tricky shapes, so even tiny parts are safe.

Manufacturers use electroplating to meet strict rules. The process works on metals and some plastics. This lets people design new and better electronics. Electroplated coatings also stop rust, which is important for tough places.

Note: Many phones, computers, and home electronics use electroplated CNC parts for better performance and longer life.

Handicrafts

Electroplating is key for making handicrafts with CNC-machined parts. Many artists use this process to make their work pretty and strong. Electroplating gives a shiny finish that makes jewelry and art stand out. Gold, silver, copper, and nickel coatings are popular for these items.

This process does more than look good. Electroplating keeps handicrafts safe from mold, tarnish, and damage. The metal layer helps the item last longer. Makers polish and clean each part before plating for the best results. Electroplated finishes are common in furniture, décor, and gifts because they look nice and last.

Electroplating lets handicraft makers create products that are both beautiful and strong, meeting the needs of customers who want lasting quality.

Other Industries

Electroplating for CNC machined components helps many industries besides hardware, electronics, and crafts. Companies in aerospace, cars, consumer goods, energy, and medicine all use electroplated parts. These parts work better and last longer. Each industry needs something special, but all like the protection and nice look that electroplating gives.

The table below lists some main industries that use electroplated CNC parts and what they use them for:

Industry	Typical Use Cases
Aerospace & Defense	Fasteners, Landing Gear Components, Structural Components, Turbine Blades
Automotive	Decorative Accents, Fasteners, Hardware, Internal and External Trim
Consumer Products	Appliances & Electronics Housings, Cookware & Utensils, Door Knobs & Hinges, Faucets, Jewelry & Watches
Electronics & Semiconductors	Circuitboards, Computer Parts, Connector Pins, Smartphone Components, Switch Contacts
Energy & Industrial	Connectors, Fasteners, Fittings, Switches, Valves
Medical & Dental	Dental Tools, Fixtures, Medical Equipment, Orthopedic Implants, Surgical Instruments

Aerospace and defense companies use electroplated fasteners and landing gear. These parts must not rust or wear out fast. Turbine blades and big parts also need strong coatings to stay safe and last longer.

Car makers use electroplating for both looks and performance. Shiny trim and hardware often get chrome or nickel plating. Fasteners and inside parts use zinc or nickel to stop rust and help them last.

Makers of consumer goods use electroplating to make things look better and last. Appliances, cookware, and utensils have plated surfaces to stop stains and scratches. Door knobs, hinges, faucets, jewelry, and watches use plating to look nice and stay strong.

Electronics and semiconductor companies need electroplating for good connections. Circuit boards, connector pins, and switch contacts need thin metal layers to carry electricity and stop rust. Phone and computer parts also use coatings for better performance.

Energy and industrial companies use electroplated connectors, fasteners, and valves. These parts must handle high pressure, chemicals, and heat. Electroplating helps them stay safe and work well in hard places.

The medical and dental fields need safe, high-quality parts. Electroplated tools and implants must not rust or let germs grow. Plated surfaces make these tools easier to clean and safer for people.

Electroplating helps each industry make CNC machined components stronger, safer, and better looking. Companies pick electroplating to meet tough rules and make products that last.

Quality and Environment

Quality Control

AFI Industrial Co., Ltd. uses strong quality checks for every electroplated CNC-machined part. They want each part to meet high standards. The company looks at every step to find problems early. This helps keep the coatings even and good.

• Workers look at parts to find defects like runs, sags, or pinholes.
• Technicians check the coating thickness to make sure it is right.
• Adhesion tests show if the metal layer sticks well.
• Salt spray tests check how well the coating stops rust.
• The team watches the ovens to keep the right heat and time.
• Rinsing washes off chemicals left after plating.
• Staff clean tanks and check the bath to keep results steady.
• Training helps workers make fewer mistakes and keep quality high.

AFI uses special tools like microscopes and hardness testers. These tools help check that each part is strong and smooth. The company cares about quality. Customers get CNC-machined components that last a long time and work well.

Tip: Testing often and having skilled workers helps stop problems and makes sure every part is good.

Environmental Responsibility

AFI Industrial Co., Ltd. follows strict rules to protect the environment during electroplating. The company cleans wastewater to take out bad chemicals before letting it go. This keeps workers and nature safe.

Electroplating shops must follow EPA rules for metal finishing. These rules say what can go into water from metal work. The rules cover many places where CNC-machined parts are made. Shops must check their water and meet the limits to keep it clean.

Some jobs, like chrome plating, have extra rules. The EPA is making new rules for PFAS chemicals from chrome work. These chemicals can hurt water, so companies must learn about new laws.

AFI uses modern systems to treat water and follows all permits. The company works hard to protect nature and keep the workplace safe.

Note: Following rules helps keep people safe and protects the community.

Cost Factors

Many things change the plating cost of CNC machined components. The kind of metal, how thick the coating is, and the part’s shape all matter. Harder shapes or thicker coatings usually cost more. Special looks or extra tests can also raise the price.

AFI Industrial Co., Ltd. helps customers find the best mix of quality and price. The company offers custom choices for different needs and budgets. By using smart methods and good machines, AFI keeps costs fair and gives great results.

Cost Factor	Impact on Price
Metal type	Precious metals cost more
Coating thickness	Thicker layers increase cost
Part complexity	Complex shapes require more work
Special finishes	Custom looks may add cost
Testing requirements	Extra tests can raise price

Picking the right options helps companies get the most value from their CNC machined components.

Electroplating puts a thin metal layer on CNC-machined parts. This helps the parts get stronger and look better. It also helps them last longer. Many companies use electroplating to protect their products. It also makes the products work better. AFI Industrial Co., Ltd. gives expert electroplating services. They check quality carefully to make sure parts are good. With the right finish, companies can make their CNC parts worth more.

For the best results, talk to electroplating experts. They can help you pick the right solution for your project.

FAQ

Tip: Electroplating helps products last longer and look better, so they are worth more in many industries.
