Custom
Dart Parts
AFI Industrial Co., Ltd. specializes in the production of dart parts, through the application of advanced numerical control technology, provide anodizing, nickel plating and other surface treatment to ensure wear resistance and corrosion resistance, support small batch customization, 3-15 days delivery, to help you reduce production costs!
About the Dart Parts

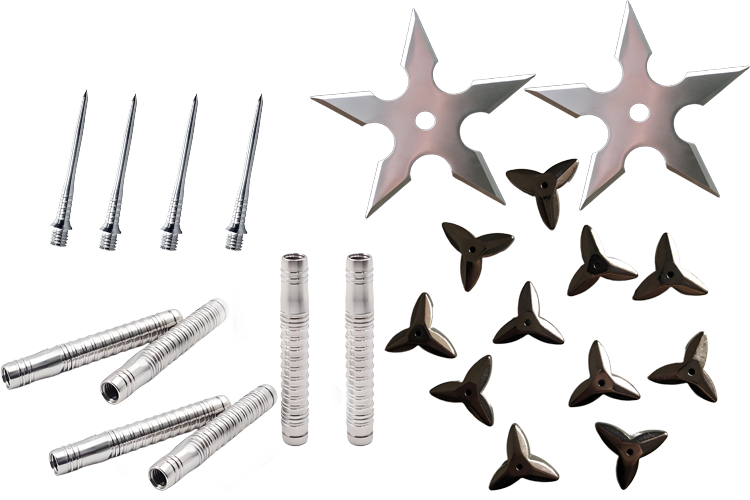

Our company precisely manufactures dart parts, including core components such as dart tips, dart barrels, and dart rod.

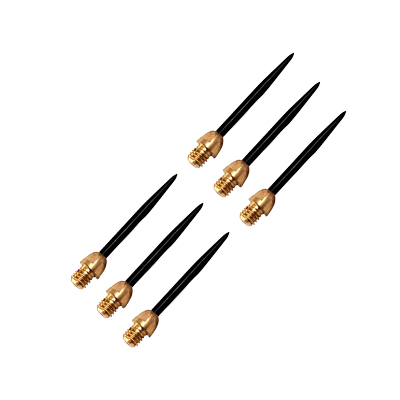

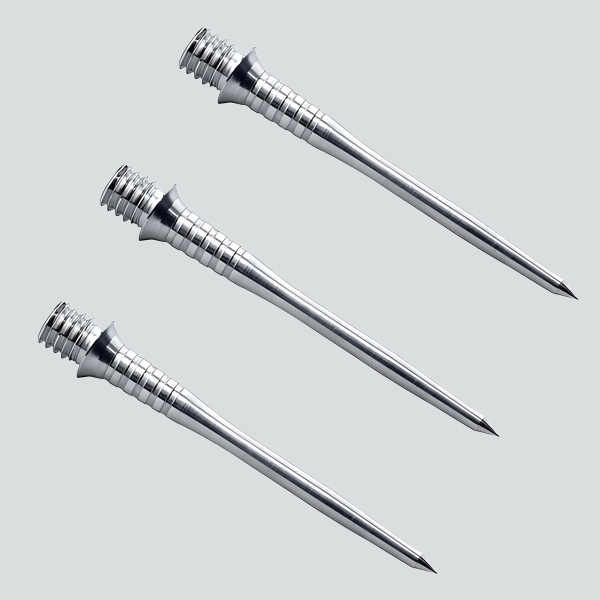

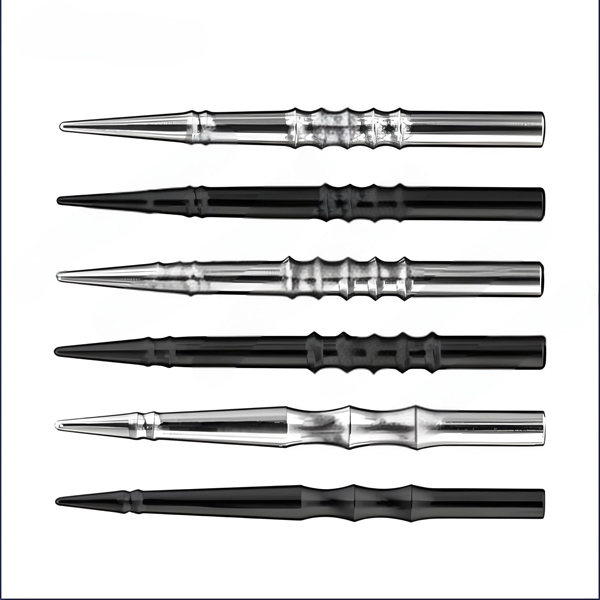

The dart tip is made of 17-4PH stainless steel material, which has HRC 45-50 hardness and surface roughness Ra ≤ 0.4μm, while ensuring its penetration performance and durability.

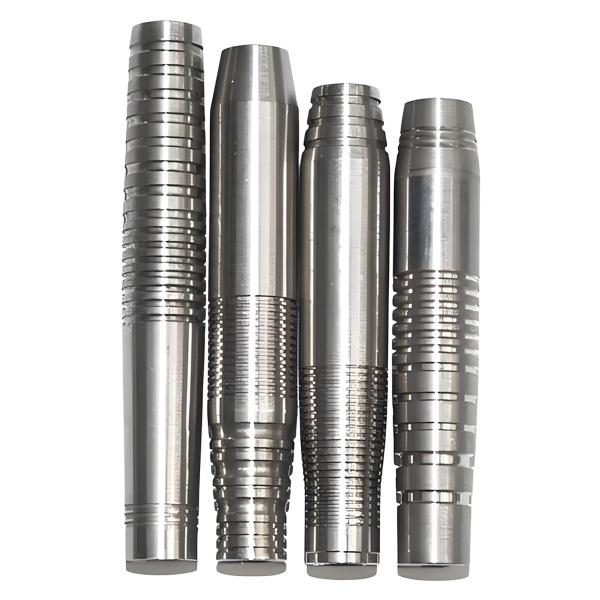

The dart barrel is made of 6061-T6 aviation aluminum material. After CNC machining, the wall thickness uniformity error is controlled at ±0.02mm. The surface is anodized and has a hardness of HV ≥ 350.

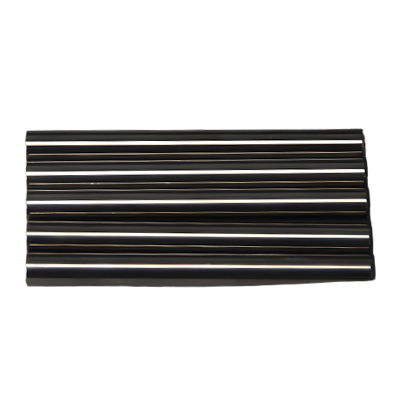

The dart rod is made of 304 stainless steel material, the diameter tolerance is controlled at ±0.01mm, and the straightness error is less than 0.03mm/100mm, which ensures the flight stability.
Through strict material testing and process control, we provide you with high-precision and high-performance metal parts solutions to help you improve product performance and market competitiveness.
Custom Dart Parts Service
AFI Industrial Co., Ltd. offers professional parts customization services in a variety of materials, such as 17-4PH stainless steel or 6061-T6 aviation aluminum, to ensure your darts will last a long time.
Flexible design: can be produced according to your needs drawings or technical parameters, its accuracy can reach ±0.01mm, surface treatment anodizing, hard oxidation and nickel plating, etc., to meet your various use scenarios.
Fast delivery: Through efficient production processes and supply chain management, ensure that your orders are produced and delivered within 3-15 days.
Dart Parts Production
We use a CNC turning machining center to produce key parts such as dart tips and dart barrels with an accuracy of ±0.005mm. The screw thread meshing surface of the dart rod achieves the mirror effect of Ra0.4μm by spiral interpolation milling technology to ensure the assembly coaxiality error ≤0.02mm. By optimizing cutting parameters, tungsten steel tool life is increased by 40%, and the risk of edge breakage is reduced.
The weight core of the dart parts adopts vacuum assisted die casting process, the flow speed of AZ91D magnesium alloy is increased by 22%, and the porosity is controlled below 0.08%. Thin-walled dart cylinder (wall thickness 1.2-1.5mm) uses a stepped pressurization system to eliminate cold insulation defects and extend the mold life to more than 150,000 molds.
The impact area of the dart tip adopts pulse electroplating technology to form 12-15μm nickel-tungsten alloy coating with a hardness of 850HV0.05 and wear resistance increased by 3 times. The holding part of the dart rod was treated by micro-arc oxidation to produce a 30μm ceramic film, and the friction coefficient was stable at 0.15-0.18. The functional coating uses the magnetron sputtering process to deposit diamond-like carbon film (DLC). The film base bonding force passes the ISO 26443 standard test, and the hydrophobic Angle reaches 115°, which reduces the flight resistance.
The whole process adopts a digital quality tracing system, and the fluctuation of metal ion concentration in the electroplating bath is controlled at ±1.5g/L. The internal defects of die casting parts were detected by industrial CT with a resolution of 5μm. Coating adhesion complies with ASTM D3359 to ensure Class 9B strength. Comply with RoHS and REACH regulations, hexavalent chromium content ≤0.02mg/m².
AFI Industrial Co., Ltd. provides you with efficient and reliable solutions for dart parts through advanced technology and strict processes, helping you reduce costs and improve the durability of your products.

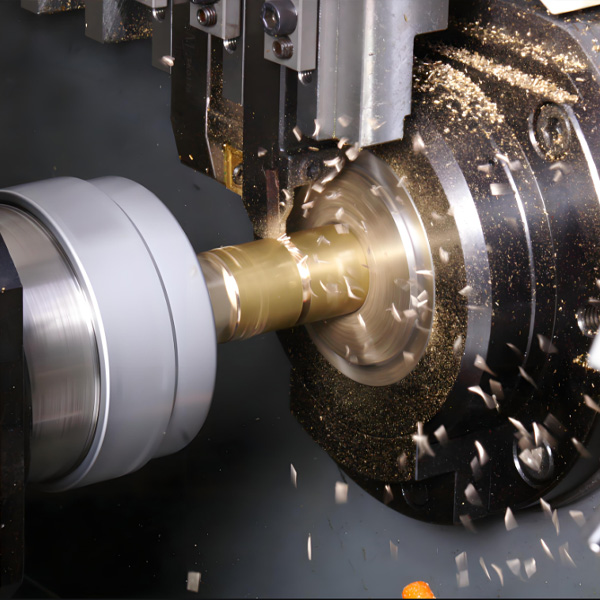

CNC turning

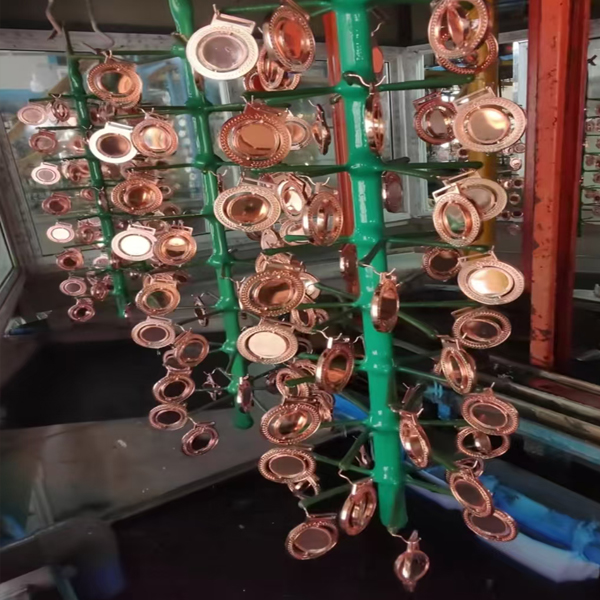

Electroplating
CNC milling
Casting
Dart Parts Quality
The product quality is guaranteed by AFI Industrial Co., Ltd. The fundamental basis on which a company relies for survival and development. We strictly control the quality in every link from the purchase of raw materials, the production of semi-finished products, surface treatment to the shipment of finished products to ensure that all the products received by customers are qualified.
Materials Quality Control
Select materials from qualified suppliers for dart parts processing.
Accuracy and Tolerance
In strict accordance with the customer's drawings, the accuracy is controlled within the tolerance range.
Performance Index
The quality department to do a good job of control, and strive to meet customer performance indicators.
Durability
Do a good job of surface treatment after processing, so that the dart parts have good durability.
Compatibility
Make sure the dart parts are compatible with other accessories according to the drawing.
Company Strength
AFI Industrial Co., Ltd is a private investment corporation that is situated in Dongguan City, Guangdong Province of China. We provide our customers with CNC turning, CNC milling, stamping, sheet metal, bending, and other services for custom parts. Our products are widely applied in areas like mechanical equipment, aerospace, aviation, electric appliances, medical care, instruments, IT, AI products, etc. Our goal is to satisfy customers and offer them better and more convenient service.
As an integrated industrial and trade enterprise, we have no middlemen between us and foreign customers, which reduces the customer's procurement links and the customer's procurement costs, and truly achieves a win-win situation for both buyers and sellers.
We have professional engineering personnel to provide advanced and timely technical support, excellent production personnel and inspection personnel to control the product quality of each production link, and well-equipped inspection equipment, which is enough to enable us to produce high-quality products to meet the various needs of different customers.
We have a professional industrial product design team to help customers develop and design new products, test and proof, and help customers quickly achieve mass production of new products and occupy the market.
We have many loyal logistics companies that have opened up a smooth transportation channel between us and our customers, ensuring that each batch of goods can be delivered to customers safely, timely, and intact.
AFI Industrial Co., Ltd. adheres to the purpose of serving customers and always puts the interests of customers first. Customer needs are our goal.
Shipping
Packaging
We will select the appropriate packaging according to different products, and clearly mark it. So that it can be counted and used conveniently when you receive it. By sea, by air, or by land, whatever way you chase, we will prepare everything perfectly for you!
Transportation
We will choose a transportation method that saves costs and ensures timeliness for our customers based on the quantity, weight, and volume of the packaging of the transported products. No matter which mode of transportation is adopted, we will monitor the entire transportation process to ensure that the goods are delivered to our customers intact.
Our Promise
Cost
Paid production process with no markup
Quality
100% full inspection using CMM before shipment
Delivery Time
3-15 days delivery depending on quantity
Service
Fast response within 2h, fast quotation within 4h
Contact Us
Your satisfaction and trust is our eternal pursuit, let us work together to create excellent quality and service, witness every moment of success.
