CNC milling provides highly accurate and flexible results in modern factories. These machines can produce aluminium parts with tolerances as tight as ±0.001 inches. They are capable of advanced 3-, 4-, and 5-axis milling, allowing for the creation of complex shapes and features with exceptional precision. CNC milling is ideal for shaping aluminium components for aircraft or manufacturing tiny aluminium parts for medical instruments. The process is remarkably effective at handling challenging tasks. AFI Industries Inc. leads the way by using innovative milling techniques to expand the possibilities of aluminium design.
Key Takeaways
- CNC milling uses computer-controlled machines to cut materials very accurately. It makes parts that match exact sizes every time.
- This process is fast and can work all the time. It helps factories make many parts quickly. It also lowers waste and mistakes.
- CNC milling can make complex shapes and tiny details. These are hard to do by hand. It uses multi-axis machines and 3D models.
- It can cut many materials like metals, plastics, and composites. This lets companies pick the best material for their needs.
- Picking the right CNC milling provider means checking for skill, quality control, good technology, and helpful customer support. This helps get the best results.
Table of Contents
What is Milling?
Milling Process

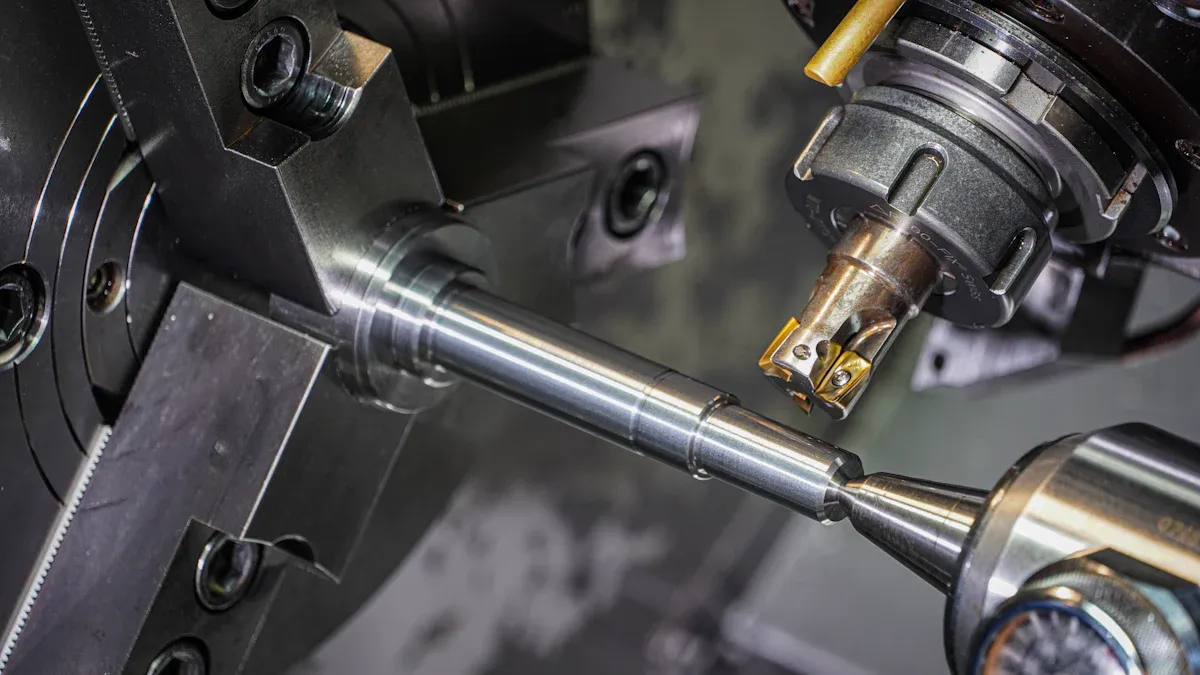

Milling is a process that removes material from a solid piece. It uses a spinning cutter with sharp teeth. The cutter moves very fast and cuts away layers from the workpiece. This shapes the workpiece into the right form. There are two main kinds of milling machines. Vertical machines have a spindle that goes up and down. Horizontal machines have a spindle that goes sideways. Some machines can move in three, four, or five directions. These extra movements help make more detailed shapes.
Milling can make holes, grooves, threads, and both flat and curved surfaces. The first step is roughing, which takes away most of the extra material. Next comes finishing, which uses a finer tool for a smooth surface. The tool can move in straight or curved lines, depending on the design. The finished part is very exact and looks smooth.
AFI Industries Inc. uses new milling methods to give clients accurate and dependable parts for many uses.
Types of Milling Operations
Milling jobs change based on what shape is needed and which tool is used. The table below shows common types and what they do:
| Milling Operation | Description | Applications | Advantages |
|---|---|---|---|
| Face Milling | Cuts flat surfaces or cavities with the end of the cutter. | Surface finishing, cavity creation | Makes smooth, flat surfaces |
| Slot Milling | Uses end mills or slot drills to make slots or grooves. | Keyways, pockets, grooves | Very precise, many shapes possible |
| Thread Milling | Cuts threads inside holes with a spiral toolpath. | Fasteners, pipe threads | Flexible, makes accurate threads |
| Gear Milling | Makes gear teeth with special cutters or hobbing. | Automotive gears, machinery | Very precise for hard shapes |
| Helical Milling | Makes spiral grooves or threads. | Gears, drills, screws | Better surface finish, cuts well |
| Drilling | Makes round holes with a spinning drill bit. | Bolt holes, fastener holes | Fast and accurate hole making |
| Reaming | Makes holes smoother after drilling. | Precision holes | Very exact, smooth finish |
Each type of milling has its own job. Face milling makes flat surfaces. Thread milling makes strong threads in hard materials. Gear milling helps make gears for cars and machines.
AFI Industries Inc. uses these milling jobs to make sure every part is high quality and meets tough standards.
CNC Milling Advantages
Precision and Accuracy
CNC milling gives very high precision in making parts. Machines use computer instructions to follow exact steps. They can reach tolerances as small as 0.004 mm. This accuracy helps lower mistakes made by people. It also makes sure every part meets strict rules. Aerospace and defense companies need this for important parts. AFI Industries Inc. checks every detail with special tools like Coordinate Measuring Machines (CMM). They inspect parts during the process and use data to find and fix problems fast.
- CNC milling keeps track of things like spindle position and machine status.
- Quality checks make sure all parts are the same and meet rules.
- Automated measuring makes checking parts faster and more reliable.
- Watching the process in real time helps fix mistakes right away.
AFI Industries Inc. uses skilled workers and smart machines together. This way, every project gets the same high-quality results.
Speed and Efficiency
CNC milling machines work faster than old machines. Automation means no need to set gears by hand. Setup takes less time. Machines can run all day and night with little help. Tool changers can hold up to 30 tools for quick changes. AFI Industries Inc. uses these features to finish jobs quickly.
| Performance Aspect | CNC Milling Machines | Conventional Machines |
|---|---|---|
| Operation Time | Can run all day with little help | Needs people to run and watch |
| Setup and Tool Change Time | Fast setup and tool changes | Takes longer to set up and change tools |
| Precision | Very accurate; less chance for mistakes | Depends on worker skill; not always exact |
| Production Capacity | Can make lots of parts quickly | Slower and needs more work from people |
| Labor Requirements | One person can watch many machines | Needs more workers with special skills |
| Waste and Scrap Rates | Less waste because of high accuracy | More waste and costs to fix mistakes |
| Task Changeover Speed | Quick changes with programs and tools | Changing jobs takes more time |
| Consistency and Reliability | Makes the same part every time | Parts can be different as more are made |
- CNC milling is good for making one part or many.
- Automated systems help use less material by following digital plans.
- AFI Industries Inc. uses software to run hard jobs faster and better.
Complex Shapes
CNC milling is great for making shapes that are hard to do by hand. Machines use 3D models from CAD software to move just right. Multi-axis machining helps make tricky parts like turbine blades. AFI Industries Inc. uses smart machining to change settings as needed. This helps deal with different materials and cuts down on waste.
- CNC milling makes detailed engine parts and car panels.
- Aerospace companies use multi-axis machines for blades and panels.
- Advanced programming works with CAD to copy designs exactly.
- Sensors and checks keep quality high.
- AI and machine learning help make even more complex parts.
AFI Industries Inc. helps customers try new ideas by making tough designs possible. Their milling skills help with fast testing and eco-friendly production.
Surprising Power of Cutting
Material Versatility
CNC machines can cut many different materials. Operators use them for metals like steel and aluminum. They also cut tough plastics such as G-10 and FR4. This lets companies pick the best material for each job. CNC milling makes parts for planes, cars, and medical tools. It works with both metals and plastics. This gives benefits like lighter weight, longer part life, and less rust.
| Material Type | Examples | Key Benefits |
|---|---|---|
| Metals | Steel 40Х, 17G2SAF, Aluminum 7075, AISI P-2 | High strength, durability |
| Plastics | G-10, GPO, FR4, phenolic laminates | Lightweight, corrosion resistance |
| Composites | Al alloy SiC particle composites | Custom properties, design freedom |
CNC milling uses smart tools and methods to cut better. Engineers use models to balance speed and tool life. This saves energy and helps work with many materials.
Repeatability
CNC milling makes sure every part is the same. Machines follow digital plans to cut each part just right. New systems use feedback to fix mistakes as they happen. This keeps errors very small, within ±0.01 mm. Factories use special tools to check if parts are correct. Automated checks find problems early.
- Digital plans make sure cuts are always the same.
- Strong machine frames stop shaking.
- Tool wear checks keep cuts sharp.
- Temperature controls help keep results steady.
A study showed CNC milling can keep sizes within ±0.005 mm for many parts. Aerospace companies need this to meet strict rules.
Design Innovation
CNC milling helps engineers try new designs. They can make shapes that were not possible before. Multi-axis machines cut tricky features from 3D models. This makes testing new ideas faster.
| Innovation Aspect | Description | Impact |
|---|---|---|
| Prototype development | Fast changes for medical devices | Helps new ideas |
| Material utilization | Better designs use less material | Saves money and material |
| Machining efficiency | Bigger tools cut time by 17% | Faster and cheaper making |
| Setup reduction | Fewer setups mean less work | Lowers cost and makes it easy |
Medical device makers use CNC milling to test ideas quickly. Changing designs, like bigger corners, lets them use bigger tools. This makes machining faster and saves money. These steps help companies get products out sooner.
Impact on Manufacturing
Industry Applications
CNC milling has changed how many products are made. Aerospace, automotive, and healthcare companies use CNC milling for important parts. These parts need to be very accurate and high quality. Aerospace companies use five-axis CNC machines for engine parts and airplane wings. These machines make parts 20% more accurate and waste 5% less material. Car companies use CNC milling for engine blocks, crankshafts, and brake calipers. One car factory made 30% more parts each day after getting new CNC machines. They also had 15% fewer mistakes in brake calipers.
Medical device makers use CNC milling too. They make surgical tools and prosthetics that must fit just right. High-precision CNC machines cut mistakes in surgical tools by 10%. They also make prosthetics 25% faster. Companies like AFI Industries Inc. follow strict rules like ISO 9001 and AS9100. These rules help keep every part safe and high quality.
CNC milling lets workers watch the process in real time. They can fix problems fast. This helps companies finish orders quickly and keep customers happy.
Business Benefits
CNC milling helps businesses in many ways. Companies make fewer mistakes and earn more money. They also use materials better. Good CNC machines and skilled workers can lower mistakes by 45%. Many CNC shops make profits between 15% and 20%. Buying quality machines cuts waste and rework costs by 25%.
| Metric / Strategy | Outcome / Benefit |
|---|---|
| Error Rate Reduction | Up to 45% fewer mistakes |
| Profit Margins | 15-20% profit margins |
| Waste and Rework Cost Reduction | 25% less waste and rework |
| Operational Efficiency Improvement | 15-24% more efficient operations |
| Customer Retention | Over 90% customer satisfaction and repeat orders |
AFI Industries Inc. uses special computer systems and trains workers well. These steps help them work faster and save money. This lets companies grow, keep customers, and stay ahead of others.
Choosing CNC Milling
When to Use
Picking CNC milling depends on the project’s needs. Engineers use it when a part needs flat surfaces, slots, holes, or tricky shapes with high precision. Milling works best if the design fits what the process does well. Here are some tips to help you decide if CNC milling is right:
- Internal corners should have radii bigger than half the tool’s width. Sharp corners cannot be made.
- Bigger inside radii help machines work faster and cost less.
- Do not use deep, skinny slots. Long tools can shake and make rough surfaces.
- Use normal cutting tool sizes to save time and money.
- Thin walls must be thick enough so they do not shake or break.
- Holes should not be deeper than four times their width for best results.
- Fewer setups help keep parts accurate and costs low.
Tip: Milling works best for parts with tricky shapes, flat areas, and exact features. For round parts or very detailed shapes, turning or EDM might be better.
Key Considerations
Picking a CNC milling company is about more than just the machines. Companies should check a few important things:
- Expertise Level: Providers who know how to work with certain materials and tight rules give better results.
- Technology Used: New, well-kept machines make sure parts are exact and made quickly.
- Production Capacity: The company should handle the number of parts and finish on time without losing quality.
- Quality Assurance: Look for ISO certificates to show they care about quality.
- Cost Factors: Think about all costs, like wasted material, setup fees, and charges for hard designs.
- Customer Support: Good communication helps fix problems fast.
A study showed companies use many ways to pick the best milling machines. They look at things like price, how much they can make, how flexible they are, and if they are reliable. AFI Industries Inc. uses these ideas to help clients pick the best choice for their needs.
For expert help with CNC milling, talk to AFI Industries Inc. Their team can help you from design to making your part.
CNC milling helps factories make things with great accuracy and speed. It is also very flexible. Companies like AFI Industries Inc. give trusted solutions to industries that need exact parts. The CNC machine market around the world may reach $128.86 billion by 2026. This growth comes from saving money and using more robots and computers.
| Metric/Statistic | Value/Description |
|---|---|
| Global CNC machine market size (2026) | About $128.86 billion |
| Growth drivers | Lower costs, fewer workers needed, IoT, Industry 4.0 automation |
| Key sectors | Cars, defense, medical, airplanes |
| U.S. reshoring trend (2022) | Big rise in bringing jobs and factories back to the U.S. |
| Benefits of reshoring | Lower costs, more control, faster answers, more local jobs |
Artificial Neural Networks help CNC face milling predict surface quality very well. This shows the process is reliable and can be improved.
CNC milling is a top choice for projects that need high quality and new ideas. AFI Industries Inc. likes to solve hard problems and helps customers from design to making the part.
FAQ
What materials can CNC milling machines cut?
CNC milling machines can cut metals like steel and aluminum. They also cut plastics, such as G-10 and FR4. Some machines can even work with composites. This means maany industries can pick the best material for their needs.
How accurate are CNC-milled parts?
Most CNC milling machines can make parts very exact, up to ±0.001 inches. AFI Industries Inc. checks every part with special tools. This makes sure each product is high quality.
Why do manufacturers choose CNC milling in machining over manual machining?
Manufacturers like CNC milling because it is fast and accurate. Machines use digital plans, so every part is the same. This helps lower mistakes and saves time.
Can CNC milling create custom or complex shapes?
Yes! CNC milling uses multi-axis machines and CAD models to make special shapes. Engineers design parts with unique features, and the machines cut them very precisely.
