Alloy Steel Explained Key Characteristics and Uses

You might ask what is alloy steel. Alloy steel is steel with extra elements like manganese, nickel, or chromium. These elements change how the steel acts. They make alloy steel stronger and tougher. Alloy steel also resists wear and rust better. The table below shows how alloy steel is different from carbon steel and stainless steel:

Property	Alloy Steel	Carbon Steel	Stainless Steel
Composition	Many alloying elements	Mostly iron and carbon	At least 11% chromium
Strength	Gets stronger from alloying	Changes with carbon amount	Good, even when hot
Corrosion Resistance	Medium, depends on elements	Low, needs a coating	High, very good
Applications	Cars, buildings, machines	Used for many things	Kitchen stuff, medical tools, wet places

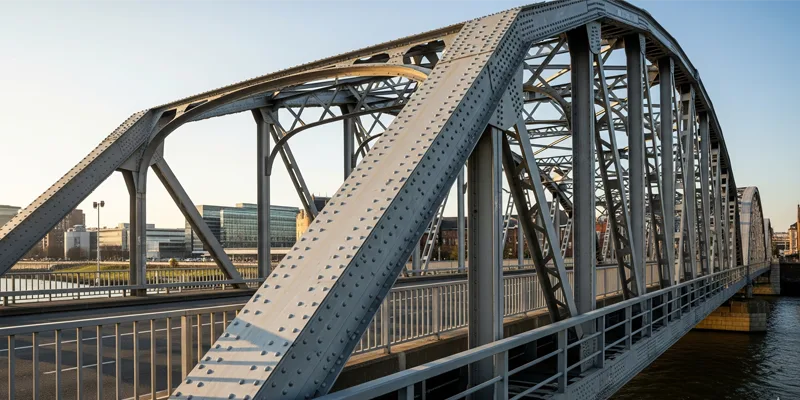

You see alloy steel in bridges, cars, and tools often. It works well where regular steel is not strong enough.

Key Takeaways

• Alloy steel is stronger and tougher than regular steel. This is because it has extra elements like chromium and nickel.
• You can see alloy steel in things like cars, bridges, and tools. These items last longer because of alloy steel.
• Different added elements give steel special features. Some make it resist rust better. Others make it harder.
• Pick low-alloy steel if you want strong and cheap material. It works well for building and machines.
• High-alloy steel is best for tough places. It can handle heat and chemicals very well.
• Stainless steel is a kind of high-alloy steel. It is great for kitchen tools and medical gear. This is because it does not rust easily.
• Knowing about alloy steel helps you choose the right kind. You can pick what fits your needs best.
• Recycling alloy steel helps the planet. It saves resources and is good for the environment.

What Is Alloy Steel

Definition

You might wonder, what is alloy steel? You see, alloy steel is a type of steel that contains extra elements mixed in. These elements can be things like chromium, nickel, manganese, molybdenum, vanadium, silicon, or boron. When you add these elements, you change how the steel acts. You make it stronger, harder, and tougher. You also help it resist rust and wear.

Many materials science organizations say that alloy steel is steel that has between 1.0% and 50% of these extra elements by weight.
You use alloy steel when you need better performance than regular steel can give.

• You find alloy steel in bridges, cars, and machines.
• You choose alloy steel when you want steel alloys with special properties.

Main Elements

You need to know the main elements that make up steel alloys. Each element gives the alloy steel different strengths. Here are the most common ones and what they do:

• Chromium: You add more than 11% to boost corrosion resistance and mechanical strength.
• Molybdenum: You use it to improve corrosion resistance, toughness, and tensile strength.
• Vanadium: You control grain size, which helps ductility and keeps the steel tough.
• Manganese: You help with heat treating and keep the steel hard and strong.
• Nickel: You find it in austenitic stainless steel alloys, often with 18% chromium and more than 8% nickel.

You see these elements in the composition of steel when you look at alloy steel. Each one changes how the steel behaves.

Alloy Content Range

You might ask, what is alloy steel when it comes to how much alloy it contains? You can split steel alloys into low-alloy and high-alloy steel. Low-alloy steel has between 1% and 5% alloying elements, but sometimes up to 8%. High-alloy steel has more than 8%, often at least 10%. This range matters because it affects how strong, tough, or resistant the steel is. You pick the right steel alloys based on what you need for your project.

Method	Description
Solid Solution Alloying	You add an alloying element to create a solid solution, which changes the crystal structure.
Quenching and Tempering	You heat steel and cool it quickly, then temper it to make it hard and tough.
Case Hardening	You make the surface hard while keeping the inside tough, using methods like carburizing or nitriding.

You use these methods to change the properties of steel alloys. You get the right mix of hardness, toughness, and resistance for your needs.

Key Characteristics

Strength

You rely on strength when you choose steel alloys for tough jobs. Strength means how much force steel can handle before it breaks. Alloy steel stands out because you can adjust its strength by adding different elements. You see this in bridges, cars, and heavy machinery. When you compare alloy steel to carbon steel, you notice a big difference in strength. Carbon steel works well for everyday use, but alloy steel handles heavy-duty tasks.

Here is a table that shows how strength compares:

Feature	Carbon Steel	Alloy Steel
Strength	Sufficient for everyday use	Exceptional, suited for heavy-duty tasks

You find that the strength of alloy steel comes from the mix of elements. You can change the properties of steel alloys to fit your needs. You use alloy steel when you want extra durability and performance. Strength is one of the most important properties you look for in steel alloys. You see strength in action when steel supports buildings or protects you in a car crash.

• Carbon steel gives you enough strength for simple tasks.
• Alloy steel gives you exceptional strength for demanding jobs.
• You can adjust the strength of steel alloys by changing the alloying elements.

Hardness

You measure hardness to see how well steel resists scratching, denting, or bending. Hardness is a key property in steel alloys, especially when you need tools or machine parts that last a long time. Alloy steel offers a wide range of hardness values. You can make steel alloys harder by adding elements like chromium, vanadium, or molybdenum.

Here is a table showing the maximum Rockwell hardness for different grades of alloy steel:

Steel Grade	Maximum Attainable Rockwell Hardness
W1	C57-C60
O1	C57-C62
M2	C65
A2	C62-C65
D2	C62-C65
S7	C59-C61
A6	C61-C62
4142	C30
P20	C32

You can also see the hardness of steel alloys in this chart:

You notice that some steel alloys reach very high hardness levels. You use these alloys for cutting tools, dies, and wear-resistant parts. Hardness helps you get better durability and longer life from your steel products. You pick the right steel alloys based on the hardness you need for your project.

Toughness

You look for toughness when you need steel that can absorb energy and resist breaking under sudden force. Toughness is different from strength and hardness. It means the steel can bend or stretch without snapping. You measure toughness using tests like the Charpy V-Notch Impact Energy test. This test uses a pendulum to hit a sample and measures how much energy the steel absorbs before it breaks.

You find that alloy steel often has higher toughness than regular steel. You see this in parts that face impact, like car frames or construction equipment. For example, AerMet® 100 has a toughness index of 102.6, which is very high. Most other steel alloys have lower toughness indices, but you still get good impact resistance from alloy steel.

You use tough steel alloys when you want durability and safety. Toughness helps you avoid sudden failures in machines or structures. You choose alloy steel for its ability to handle shocks and keep working even in harsh conditions.

Ductility

You want ductility when steel needs to bend or stretch. Ductility shows how much a material can change shape before breaking. You see ductility in wires, sheets, and parts that bend during use. When you use alloy steel, you check elongation percentage to measure ductility. This number tells you how much a sample stretches before it snaps.

Here is a table that shows ductility for different steel alloys:

Steel Classification	Typical Value Range
Low Carbon Steel (AISI 1020)	25-30%
Medium Carbon Steel (AISI 1045)	12-20%
High-Strength Low-Alloy Steel (HSLA)	10-25%

Low carbon steel alloys have the highest ductility. You can bend or stretch them more before they break. Medium carbon steel alloys have less ductility but still work for many uses. High-strength low-alloy steel gives you both strength and ductility. You pick steel alloys based on how much bending or shaping you need.

Tip: If you need to make parts with complex shapes, choose steel alloys with higher ductility. This helps you avoid cracks or breaks when making things.

Corrosion Resistance

You want corrosion resistance when steel is used in wet or tough places. Corrosion happens when steel reacts with water, air, or chemicals. This causes rust and makes steel weaker. Alloy steel resists corrosion better than plain carbon steel. You get this by adding chromium, nickel, or molybdenum. These elements protect the steel surface.

When you compare alloy steel to stainless steel, you see a big difference in saltwater. Stainless steel has high resistance because it has at least 10.5% chromium. This makes a thin layer that stops rust. If this layer gets scratched, it can fix itself. Stainless steel works well in marine or chemical places.

Here is a table that compares corrosion resistance in saltwater:

Metal type	Relative resistance to salt water	Primary advantage
Stainless steel	High	Highly resistant to corrosion and high temperatures
Alloy steel	Medium	Varies based on alloy composition, less than stainless

• Stainless steel makes a protective layer with chromium.
• It can heal itself if scratched.
• Stainless steel lasts longer in harsh marine places.

You use alloy steel when you need better corrosion resistance than carbon steel but not as much as stainless steel. You pick steel alloys based on where you use them and how much protection you need.

Wear Resistance

You need wear resistance when steel faces rubbing, friction, or impact. Wear resistance means steel lasts longer without losing shape or strength. Alloy steel gives better wear resistance than plain steel. You get this by adding chromium, vanadium, or molybdenum. These elements make the surface harder and tougher.

You can test wear resistance with special methods. The ASTM G83 Crossed-Cylinder Wear Test checks how much steel wears away under pressure. In this test, two cylinders rub together. You weigh them before and after to see how much they lose. The ASTM G98 Threshold Galling Test checks how much force it takes before steel starts to stick or gall.

Here is a table that shows common wear resistance tests:

Test	Description
ASTM G83	Crossed-Cylinder Wear Test measures wear compatibility under set loads.
ASTM G98	Threshold Galling Test checks galling resistance by increasing the load.

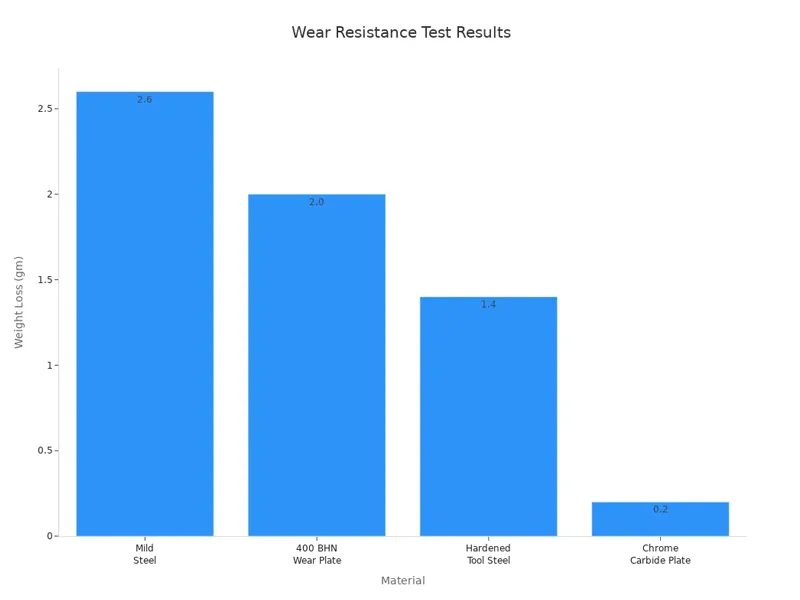

You can see how steel alloys perform in wear tests by looking at weight loss:

Material	Weight Loss (gm)
Mild Steel	2.6
400 BHN Wear Plate	2.0
Hardened Tool Steel	1.4
Chrome Carbide Plate	0.20

Chrome carbide plate has the lowest weight loss. This means it has the best wear resistance. Hardened tool steel and wear plates also work well. Mild steel loses the most weight, so it wears out faster.

Note: The ASTM G-65 Dry Sand Rubber Wheel Abrasion Test also helps you compare abrasion resistance. It uses sand and a spinning wheel to measure how much steel wears away. This test shows how steel alloys last in real life.

You pick steel alloys with high wear resistance for tools, mining equipment, and machine parts. This helps your steel products last longer and work better.

Heat Resistance

You need steel that can handle high temperatures in many industries. Heat resistance means the steel keeps its strength, shape, and toughness even when it gets very hot. When you use alloy steel, you get better heat resistance than with regular carbon steel. This makes it a top choice for parts that face heat every day.

Alloy steel stands out because it keeps its mechanical properties at elevated temperatures. You see this in places like power plants, chemical factories, and engines. Low alloy steels work well in high-temperature jobs such as pressure vessels and piping systems. They do not lose their strength quickly when the heat rises.

Heat resistance helps you avoid sudden failures in machines that run hot. You can trust alloy steel to keep working when other steels might weaken.

However, you should know that even the best steels can face problems at high temperatures. If you use steel in hot environments for a long time, oxidation and scaling can happen. This means the surface reacts with air and forms a flaky layer. Over time, this can make the steel weaker.

Another thing to watch for is creep. Creep happens when steel slowly changes shape under constant stress at high temperatures. You notice this most between 450°C and 550°C. Even if the load is not very high, the steel can stretch or bend if the heat stays on for a long time. This can lead to cracks or breaks in parts that need to stay strong.

Here is a quick summary of what affects heat resistance in steel:

Factor	What Happens
High Temperature	Steel can lose strength and toughness
Oxidation/Scaling	Surface reacts with air, forms weak layers
Creep	Steel slowly bends or stretches over time

You pick alloy steel for heat resistance when you need reliable performance in hot places. Always check the temperature limits for your project. This helps you choose the right steel and avoid problems later.

Alloying Elements

Chromium

You see chromium as one of the most important elements in alloy steel. When you add chromium, you change how the alloy behaves. Chromium helps the steel resist rust and corrosion. It forms a thin layer of chromium oxide on the surface. This layer protects the alloy from water and air. You notice that this protection works well in moist and acidic places. The chromium oxide film stops further oxidation, so your alloy lasts longer.

• Chromium creates a stable oxide layer that shields the alloy from damage.
• The passive film keeps moisture and acids from reaching the steel.
• You use chromium-rich alloys in places where rust is a big problem.

Chromium also makes the alloy stronger and harder. You find chromium in stainless steel, which is a type of alloy that does not rust easily. When you need steel for bridges, cars, or kitchen tools, you often choose an alloy with chromium.

Nickel

Nickel gives alloy steel extra toughness and ductility. When you add nickel, you make the alloy better at handling impacts. Nickel helps the alloy stay strong even when temperatures change quickly. You use nickel-rich alloys in places where the steel faces shocks or needs to bend without breaking.

• Nickel boosts toughness, so the alloy can absorb energy from impacts.
• The alloy resists brittle failure, even in cold or hot conditions.
• Nickel helps the alloy keep its shape when you bend or stretch it.

Nickel changes the crystal structure of the alloy. It creates a face-centered cubic pattern. This structure lets the alloy stretch and bend more before it breaks. You see nickel in alloys used for pipelines, ship hulls, and airplane parts. These alloys need to be tough and flexible.

Molybdenum

Molybdenum plays a key role in making alloy steel strong at high temperatures. You find that molybdenum helps the alloy keep its hardness and strength when things get hot. This is important for turbine blades and heat exchangers. The alloy does not soften easily, so it works well in harsh environments.

Molybdenum also improves hardenability. You can heat treat the alloy to get the right mix of strength and toughness. When you use molybdenum, your alloy resists softening during long service at high temperatures. You choose molybdenum-rich alloys for jobs that need reliable performance under heat and stress.

Vanadium

Vanadium is found in many alloy steels. This element gives the alloy special qualities for tough jobs. When you add vanadium, the alloy gets stronger and more stable.

Vanadium forms carbides in the alloy. These carbides make the grain size smaller. Smaller grains give the alloy more strength and toughness. Vanadium also helps the alloy harden better after heat treatment. It helps the alloy keep its strength even when it is cold. Vanadium boosts the yield ratio, so the alloy can take more stress before bending.

During heat treatment, vanadium helps grains form evenly. This makes the alloy more stable. Vanadium supports both solid solution strengthening and precipitation hardening. This means the alloy stays hard and strong after tempering.

You need vanadium when the alloy must handle heavy loads and sudden impacts. Vanadium is used in tools, springs, and strong structural parts. The right amount of vanadium helps alloy steel last longer and work better.

Manganese

Manganese is important for making alloy steel strong and reliable. When you add manganese, the alloy hardens better. This means the steel can harden deeper when cooled. Manganese lowers the cooling rate needed for hardening. This lets the hardening effect go deeper into the alloy.

You get a better chemical structure and higher strength. Manganese also increases the tensile strength of the alloy. The hardening process works better, and you get the properties you want. Manganese is found in many alloy steels, especially where strength and durability are needed. By lowering the cooling rate, manganese helps make an alloy that resists wear and tear.

Silicon

Silicon is a strong helper in making alloy steel. You use silicon mostly as a deoxidizer. This means silicon removes unwanted oxygen from melted steel. If oxygen stays in the alloy, it can make oxides that weaken the steel. Silicon reacts with oxygen to make silicon dioxide. This floats to the top and is removed as slag.

Silicon also helps make stable silicate inclusions. These inclusions keep the alloy clean and improve its properties. The deoxidation reaction happens fast and gives you more control. Adding silicon makes sure your alloy steel is strong, clean, and ready for hard jobs.

Tip: Silicon’s strong bond with oxygen keeps your alloy free from bad oxides. This gives you better performance and longer life for your steel products.

Boron

You might not hear about boron as much as other alloying elements, but it plays a powerful role in steel. When you add boron to alloy steel, even in tiny amounts, you see a big change in how the steel behaves. Boron helps steel harden deeper and faster. This means you get stronger parts without using a lot of expensive elements.

Boron works best at very low concentrations. You usually add it in parts per million (ppm). Even a small amount can make a big difference. Look at the table below to see how boron changes hardenability:

Concentration of Boron (ppm)	Equivalent Replacement	Effect on Hardenability
3-15	Various elements	Significant enhancement
30	0.4% Cr	Increased depth of hardening (+50%)
100	Various elements	Comparable to larger quantities of other alloying elements

You can see that just 30 ppm of boron can replace 0.4% chromium. This saves you money and resources. You do not need to add as much of the other elements to get the same effect. Boron makes the steel harden deeper when you heat treat it. This is important for making strong gears, axles, and other parts that need to last.

Here are some key points about boron in alloy steel:

• Boron significantly increases the hardenability of steel even at low concentrations.
• 30 ppm of boron can replace 0.4% chromium, 0.5% carbon, or 0.12% vanadium.
• Boron helps the steel harden deeper, especially in low-alloy steel, because it changes how the steel cools and forms crystals.

When you add boron to low carbon steels, you see a big jump in hardenability. For example, if you compare SAE 1020 steel with and without boron, the steel with just 0.003 percent boron hardens much more. You can see this on a Jominy curve, which measures how deep the steel hardens after heat treatment. The curve for boron-treated steel rises much higher, showing better performance.

Tip: You should know that too much boron can cause problems. If you add more than needed, boron can make the steel brittle. Always use the right amount for the job.

You find boron-treated steels in car parts, farm equipment, and tools. These parts need to be strong all the way through, not just on the surface. Boron helps you get that strength without making the steel too expensive or hard to work with.

Boron may be a small ingredient, but it makes a big impact on alloy steel. When you want deep, reliable hardening, boron is your secret weapon.

Types of Alloy Steel

When you look at steel alloys, you see three main types. These are low alloy, high alloy, and stainless steel. Each type has its own special features. They work best for different jobs. Knowing what makes each type unique helps you pick the right one.

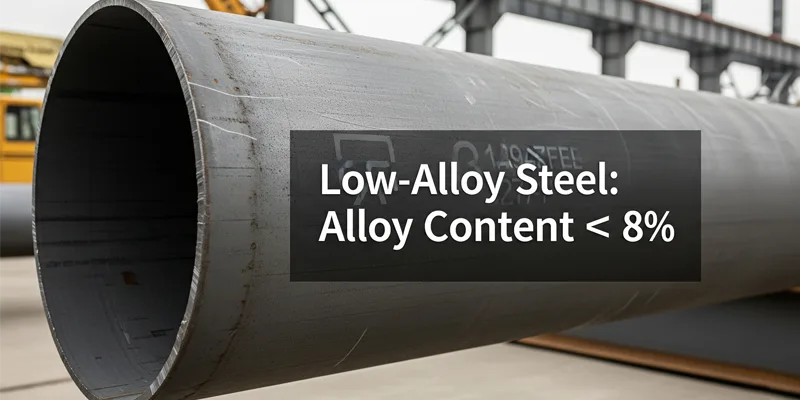

Low Alloy

Low alloy steel has less than 8% alloying elements. You often find it in buildings, pipelines, and machines. These steel alloys are strong and tough. They also do not wear out fast. This makes them good for parts that rub together a lot. Low alloy steel costs less than other types. That is why people use it for big projects.

Here is a table that shows how low alloy steel and high alloy steel are different:

Property	Low-Alloy Steel	High-Alloy Steel
Alloy Content	Less than 8%	More than 8%
Mechanical Properties	Good strength, toughness, and wear resistance	Superior corrosion resistance, heat resistance, and hardness
Corrosion Resistance	Moderate, often needs coatings	Excellent, resistant to acids and chemicals
Applications	Automotive, machinery, pipelines, power generation	Chemical processing, food industry, aerospace, marine environments
Cost	More affordable	Higher cost due to expensive alloying elements

You choose low alloy steel when you want good value and strength. These steel alloys are used in many fields because they last and do not break easily.

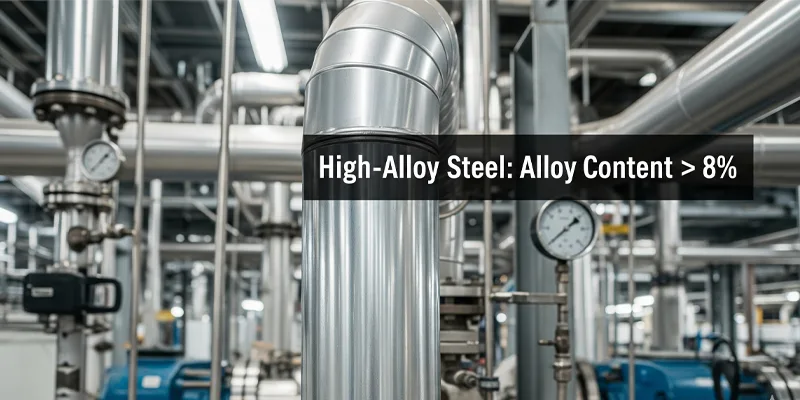

High Alloy

High alloy steel has more than 8% alloying elements. Some people say it starts at 12%. You use these steel alloys when you need them to handle heat or chemicals. High alloy steel works well where regular steel would not last.

• High alloy steel does not rust easily.
• You see these alloys in chemical plants, food factories, and ships.
• The extra elements make the steel harder and stronger.

High alloy steel costs more, but it works better in tough places. These steel alloys last longer and do not need much fixing.

Stainless Steel

Stainless steel is a kind of high alloy steel. You know it because it is shiny and does not rust. Stainless steel has iron, chromium, nickel, and sometimes other elements. The chromium makes a thin layer on the outside. This layer keeps water and air out. That is why stainless steel does not rust.

Here is a table that shows how stainless steel and other alloy steels compare:

Property	Stainless Steel	Alloy Steel
Corrosion Resistance	High due to chromium content	Lower, may require coatings
Composition	Iron, chromium, nickel, and others	Iron with manganese, chromium, molybdenum
Ideal Use	Harsh environments	Applications needing strength and toughness

You use stainless steel in kitchens, hospitals, and wet places. These steel alloys stay strong and look good even when it is damp. Stainless steel is a good choice when you need steel that will not rust.

Tip: Pick stainless steel if you want steel that stays clean and strong. It works in places where other steel alloys might not last.

Properties

Steel alloys have special properties that make them good for hard jobs. These properties help you choose the best steel for what you need. You can sort these properties into three groups: mechanical, physical, and chemical. Each group tells you something different about how steel acts and how long it lasts.

Mechanical

Mechanical properties show how steel acts when you push or pull on it. These properties tell you how much weight steel can hold before it bends or breaks. The most important ones are strength, hardness, and toughness. You also check how well steel handles repeated use, which is called fatigue resistance.

Here is a table with some main mechanical properties of steel alloys:

Property	Condition/Temper	Typical Value/Range (Metric)	Typical Value/Range (Imperial)
Yield Strength	Quenched & Tempered	1000 – 1100 MPa	145 – 160 ksi
Fatigue Resistance	N/A	N/A	N/A

Yield strength shows how much force steel can take before it starts to bend. If steel has high yield strength, it can hold heavy things. Hardness means how well steel can avoid scratches and dents. You want high hardness for tools and machines. Toughness tells you how much energy steel can take before it breaks. This helps stop sudden breaks. When you put these properties together, you get steel alloys that last a long time and work well.

Tip: Always look at the mechanical properties before you pick a steel alloy. This helps you get the right mix of strength, hardness, and toughness.

Physical

Physical properties are things you can see or measure without changing the steel. These include density, melting point, and thermal conductivity. You need to know these when you design parts that must fit or handle heat.

• Density tells you how heavy steel is for its size. Most steel alloys have a density close to 7.8 g/cm³.
• Melting point shows how hot steel gets before it turns to liquid. Steel alloys usually melt between 1370°C and 1510°C.
• Thermal conductivity tells you how fast heat moves through steel. This is important if you use steel in engines or heat exchangers.

You use these physical properties to make sure your steel parts work in real life. If you want lighter parts, you look for lower density. If you need to handle high heat, you check the melting point. These properties help you design safe and strong steel products.

Chemical

Chemical properties tell you how steel reacts with water, air, or chemicals. These properties matter because they affect how long steel lasts. The chemical makeup of steel alloys controls how well they fight rust and corrosion.

Here is a table that shows how different elements help steel resist rust:

Alloying Element	Role in Corrosion Resistance
Chromium (Cr)	Makes a thin oxide layer that stops rust when above about 10.5%.
Nickel (Ni)	Helps steel resist acids and bad weather, especially in places with lots of acid.
Molybdenum (Mo)	Helps steel last longer in salty or wet places.
Silicon (Si)	Helps stop rust and keeps the protective layer strong.
Copper (Cu)	Helps steel fight rust.
Vanadium (V)	Helps steel resist rust.

Chromium is important because it makes a thin layer that keeps steel from rusting. Nickel helps steel stand up to acids and bad weather. Molybdenum helps steel last longer in salty or wet places. Silicon, copper, and vanadium also help steel stay strong against rust. When you pick steel alloys with the right chemical properties, your steel lasts longer and works better.

Note: The properties of steel alloys depend on both the elements you add and how you treat the steel. Always match the chemical properties to where you will use the steel for the best results.

Applications of Steel Alloys

Construction

You see steel alloys used a lot in building things. Builders use them to make buildings, bridges, and towers strong. These steel alloys help hold up heavy things. You find them in beams, columns, and bars that support weight. When you go into a tall building, steel alloys keep it standing. They do not bend or break easily, even in storms or earthquakes. You also see steel alloys in big places like stadiums and airports. These places need to last a long time. Steel alloys help keep them safe and steady. You can shape steel alloys in many ways, so architects can make cool buildings. When you need something strong for building, you pick steel alloys.

Automotive

You ride in cars and trucks almost every day. Many parts inside these vehicles are made from steel alloys. You find steel alloys in the frame, engine, and wheels. Steel alloys make cars safer and stronger. Here are some ways they are used:

• Engine parts: Steel alloys are used for crankshafts, connecting rods, and camshafts. These parts must be strong and handle heat.
• Suspension systems: Steel alloys give cars toughness and help them handle bumps.
• Exhaust systems: Steel alloys resist rust and heat, so they work well for exhaust pipes and mufflers.

You pick steel alloys for cars because they last a long time. They help your car work well and keep you safe. When you look under the hood, you see how important steel alloys are for every drive.

Aerospace

You need steel alloys when you fly in airplanes. The aerospace industry uses special steel alloys for many things. These alloys must be light, strong, and tough. Engineers choose them for parts that face stress and heat changes. The table below shows some steel alloys and how they are used in airplanes:

Alloy Steel Type	Key Properties	Aerospace Applications
300M	Lightweight, high strength, tough	Critical components, improves efficiency
8620	Strength and toughness	Aircraft and defense components
9310	High strength, fatigue resistance	Gear systems in aircraft engines
M50	Exceptional toughness	Jet engine bearings, turbine blades
C465	Toughness, fatigue resistance	Landing gear components

You see these steel alloys in landing gear, engine parts, and gears. They help airplanes fly safely and use less fuel. When you travel by plane, you trust steel alloys to keep you safe high in the sky. The use of steel alloys in aerospace shows how important they are for flying today.

Note: Steel alloys are used in many other jobs, but building, cars, and airplanes are some of the most important. These examples show how steel alloys help solve real problems and make life better.

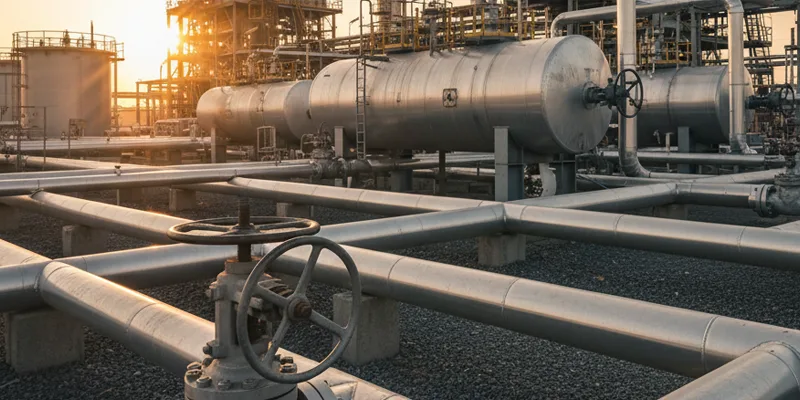

Oil and Gas

You see alloy steel play a huge role in the oil and gas industry. When you look at drilling rigs, pipelines, and refineries, you find steel everywhere. The oil and gas sector needs materials that can handle tough jobs. You need steel that stands up to high pressure, heat, and harsh chemicals. Alloy steel gives you these qualities.

You use alloy steel for many applications in oil and gas. Here are some common examples:

• Drill pipes: These pipes go deep underground. They face strong forces and rough rocks. Alloy steel keeps them from breaking.
• Casing and tubing: You use these to line wells. They must resist corrosion from salty water and chemicals.
• Valves and fittings: These parts control the flow of oil and gas. Alloy steel helps them last longer.
• Storage tanks: You store oil and gas in large tanks. Steel keeps the tanks strong and safe.

You choose alloy steel because it resists rust and wear. In oil and gas applications, you often deal with water, salt, and acids. Regular steel would rust quickly. Alloy steel, with elements like chromium and molybdenum, fights off corrosion. This means your equipment lasts longer and needs less fixing.

You also need steel that can handle high temperatures. In refineries, you heat oil to very high levels. Alloy steel keeps its strength even when it gets hot. This makes it perfect for heat exchangers and boilers.

Note: Using the right steel in oil and gas applications helps prevent leaks and accidents. You protect the environment and keep workers safe.

You find that alloy steel can be shaped into many forms. You get pipes, plates, and bars for different applications. This flexibility lets you build safe and strong systems for moving oil and gas.

Here is a table showing where you use alloy steel in oil and gas:

Application	Why You Use Alloy Steel
Drill Pipes	High strength, resists wear
Casing/Tubing	Fights corrosion, lasts longer
Valves/Fittings	Handles pressure, resists rust
Storage Tanks	Stays strong, safe for storage
Heat Exchangers	Keeps strength at high heat

When you work in oil and gas, you rely on alloy steel for many applications. You get safety, strength, and long life from the right steel.

Importance Today

Engineering Role

You see steel everywhere in modern engineering. When you look at bridges, skyscrapers, or even cars, you notice how much engineers rely on steel. You use steel because it gives you strength, flexibility, and safety. Engineers pick different types of steel for each job. They choose steel alloys that match the needs of each project. For example, you need strong steel for a bridge, but you want lighter steel for an airplane. You also use steel in machines, tools, and even in energy plants. The importance of understanding steel alloy properties helps you make smart choices. You can design safer buildings and better machines when you know how each alloy works.

Economic Impact

You might wonder how steel affects the world’s economy. The impact is huge. Steel production supports millions of jobs and brings in a lot of money. Here are some key facts:

• Steel manufacturing directly employs over 6 million workers around the world.
• More than 40 million jobs exist in industries that use or support steel.
• In 2021, global steel production reached over 1.9 billion metric tons.
• Direct and indirect sales from steel add up to about $2.5 trillion worldwide.
• In the United States, the iron and steel industry adds more than $520 billion to the economy and creates over one million jobs.

You see that steel is not just a building material. It is a major part of the global economy. When you buy a car or use a new appliance, you support jobs and industries linked to steel. The money from steel helps build roads, schools, and hospitals. You can see why steel is so important for both workers and communities.

Future Trends

You will see new trends shaping the future of steel. Engineers and scientists keep looking for ways to make steel better. They want steel that is lighter, stronger, and more resistant to rust. You might hear about “green steel,” which uses less energy and creates less pollution. Factories now use new technology to recycle steel and cut down on waste. You will also see smart steel alloys that can handle extreme heat or cold. These new types of steel help you build safer cars, cleaner power plants, and longer-lasting bridges. As technology grows, you will find even more uses for steel in your daily life.

Tip: Stay curious about new steel technologies. They can help you solve problems and build a better world.

You now know that alloy steel is steel mixed with special elements to boost strength, toughness, and resistance. You see it in cars, buildings, and even kitchen tools. Alloy steel shapes the world around you and supports many industries.

Take a closer look at the objects you use every day—you might spot alloy steel at work!

• Want to learn more? Explore materials science to discover how metals change your world.

FAQ
